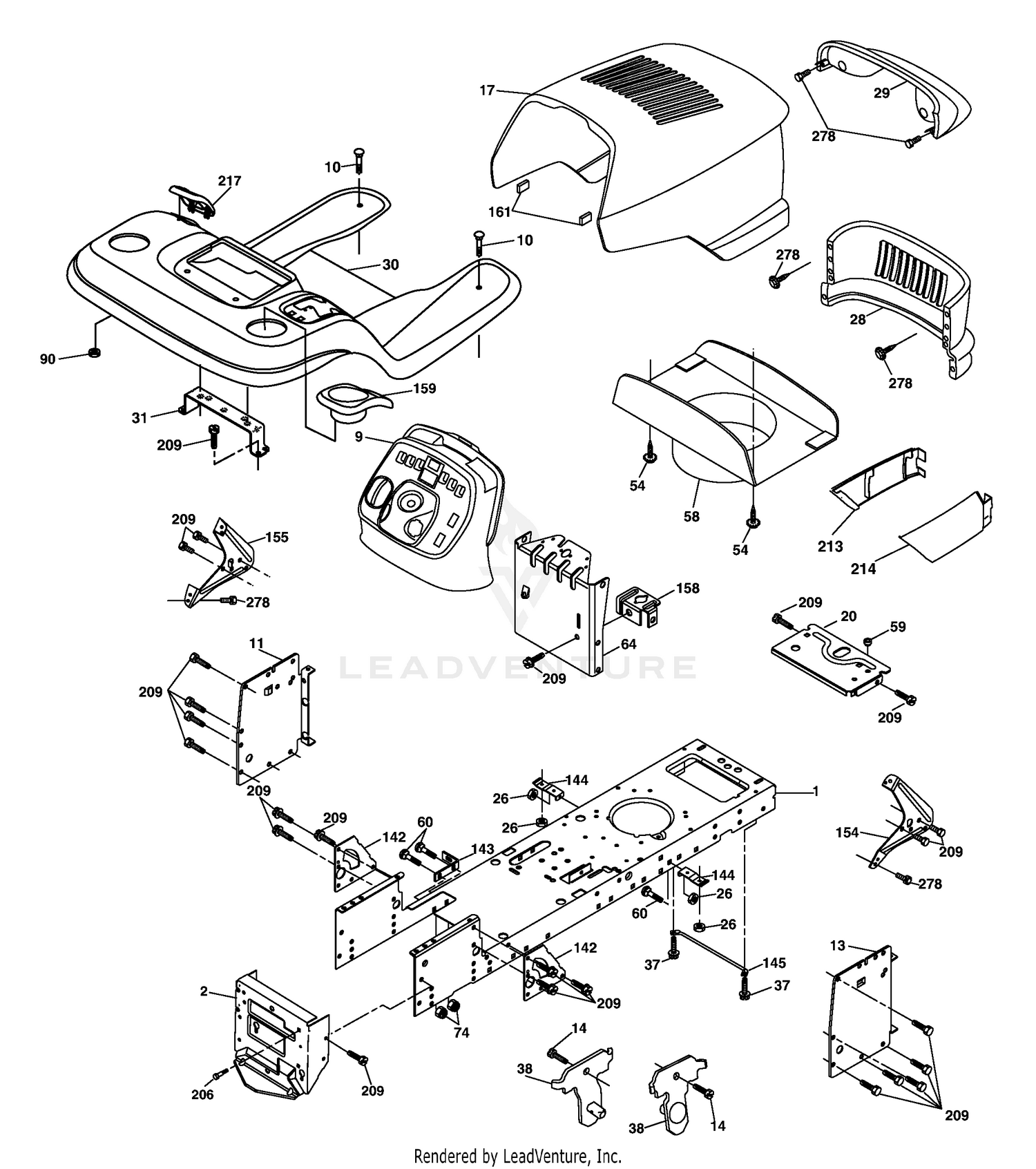

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 9 |
193635X428 |
Dash Price: Call Us |
| 010 |
98-9670 |
GAUGE-OIL Price: $50.49 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 13 |
178298 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
175260X428 |
Hood Price: Call Us |
| 020 |
98-9672 |
OIL GAUGE GUIDE ASM Price: $60.03 |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 28 |
175289 |
Grille Price: Call Us |
| 29 |
161840 |
Lens Bar Price: Call Us |
| 030 |
98-9722 |
O-RING This part replaces 98-9374. Price: $2.07 |
| 30 |
192395X428 |
Fender Footrest Price: Call Us |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 54 |
192512 |
Screw WSHD Hex 10-32 x 5/8 Price: Call Us |
| 58 |
175351 |
Duct Air Price: Call Us |
| 59 |
187495 |
Bushing Price: Call Us |
| 60 |
72140606 |
Bolt RDHD Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
174997 |
Dash Lower STLT Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self Thd Wsh - HD 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Step-thru Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash RH Price: Call Us |
| 155 |
161900 |
Bracket Dash LH Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
191120X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Bumper Hood Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille LH Price: Call Us |
| 214 |
169847X428 |
Skirt Grille RH Price: Call Us |
| 217 |
179132X428 |
Console Fuel Window Price: Call Us |
