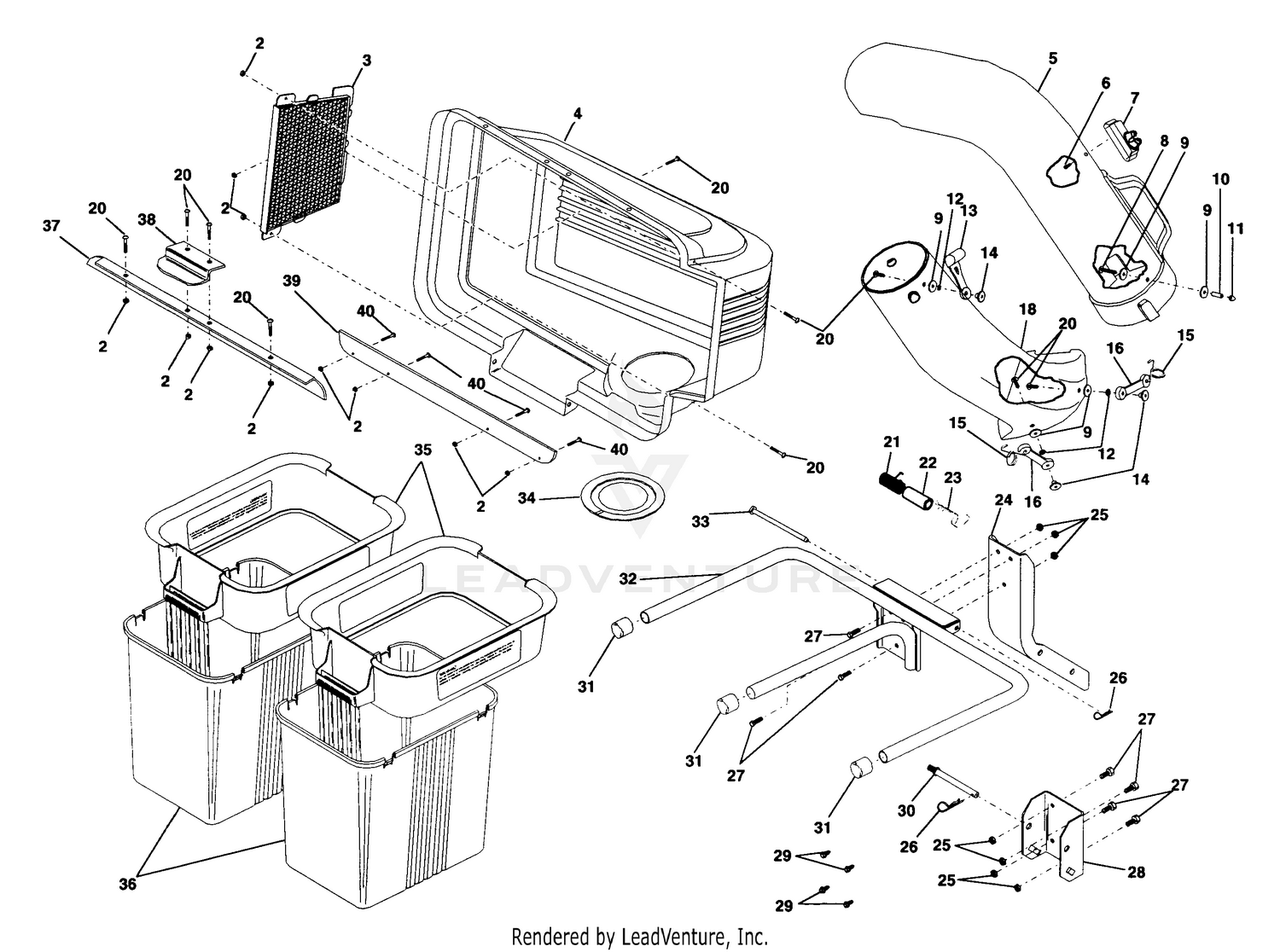

| Ref | Part Number | Description |
|---|
| 1 |
119-4763-01 |
COVER-BELT, RH This part replaces 72-9330. Price: $120.18 |
| 2 |
53269180 |
Nut, Crownlock #10-24 Price: Call Us |
| 2 |
72-9230-01 |
BASE-CASE, GEAR This part replaces 72-9230. Price: $176.88 |
| 3 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 3 |
532127533 |
COVER SCREEN Price: $14.99 |
| 4 |
51-3960 |
DECAL Price: $24.99 |
| 4 |
532171061 |
COVER.ASM.BAG.W/STRIP This part replaces 532140654. Price: $89.99 |
| 5 |
32128-20 |
NUT-HF Price: $0.99 |
| 5 |
532126840 |
CHUTE.UPPER.42" Price: $59.99 |
| 6 |
72-9240-01 |
BRACKET-EXTENSION This part replaces 72-9240. Price: $23.69 |
| 6 |
818021008 |
SCREW Price: $4.99 |
| 7 |
322-4 |
SCREW-HH Price: $0.35 |
| 7 |
532140572 |
INDICATOR DUMP BAG Price: $6.99 |
| 8 |
68-9890-01 |
COVER-GEARBOX, FRONT This part replaces 68-9890. Price: $47.21 |
| 8 |
874981024 |
SCREW.PAN.HEAD This part replaces 532087175. Price: $4.99 |
| 9 |
63-9750 |
MOUNT Price: $18.92 |
| 9 |
819061216 |
WASHER Price: $3.99 |
| 10 |
532007206 |
SPACER LT Price: $5.99 |
| 10 |
68-8560-03 |
BRACKET-GEARBOX This part replaces 68-8560. Price: $57.56 |
| 11 |
539108086 |
NUT 10-24 ACORN ZD This part replaces 532060867. Price: $3.99 |
| 11 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 12 |
63-8410 |
WASHER Price: $1.76 |
| 12 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 13 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 13 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 14 |
108-1370 |
GEARBOX REPLACEMENT KIT This part replaces 68-6810. Price: $862.61 |
| 14 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 15 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130760. Price: $5.99 |
| 16 |
323-4 |
SCREW-HH Price: $1.02 |
| 16 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130759. Price: $5.99 |
| 17 |
63-9900 |
GEARBOX PULLEY ASM Price: $135.09 |
| 18 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 18 |
592866501 |
CHUTE.LOWER.LT.42 This part replaces 532126839. Price: $59.99 |
| 19 |
27-6140 |
BUSHING-LOCK, TAPER Price: $84.79 |
| 20 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 20 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 21 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 21 |
532132796 |
SPRING COVER LH Price: $5.99 |
| 22 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 22 |
532133235 |
SPACER.COVER.BAGGER Price: $5.99 |
| 23 |
532132983 |
SPRING COVER RH Price: $5.99 |
| 23 |
80-0080 |
DISCONTINUED Price: Call Us |
| 24 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 24 |
532180925 |
POST.SUPPORT.BAGGER.2BIN This part replaces 532126813. Price: $32.99 |
| 25 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 25 |
596040501 |
Hardware This part replaces 532063124. Price: $2.99 |
| 26 |
3245-9 |
SCREW-SET, HSH Price: $0.81 |
| 26 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 27 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 28 |
532170053 |
MOUNTING BRACKET, BAGGER This part replaces 532130889. Price: $11.99 |
| 29 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 30 |
532131137 |
SUPPORT POST PIN Price: $11.99 |
| 31 |
532174083 |
PLUG, TUBING END This part replaces 532134496. Price: $5.99 |
| 32 |
532126919 |
BAGGER FRAME Price: $64.99 |
| 33 |
532192786 |
BAGGER.HINGE.PIN This part replaces 532128600. Price: $14.99 |
| 34 |
532127534 |
GASKET.COVER.BAGGER Price: $11.99 |
| 35 |
532183286 |
CONTAINER TOP This part replaces 532129585. Price: $29.99 |
| 36 |
532129586 |
CONTAINER BOTTOM Price: $59.99 |
| 37 |
532132256 |
SEAL.COVER.BAGGER Price: $7.99 |
| 38 |
532130895 |
LATCH CER38 Price: $5.99 |
| 39 |
532155042 |
STRIP.REINFORCE.BAGGER.2BIN.BL This part replaces 532135495. Price: $11.99 |
| 40 |
871141008 |
Screw #10-24 x 1/2 Price: $2.99 |
