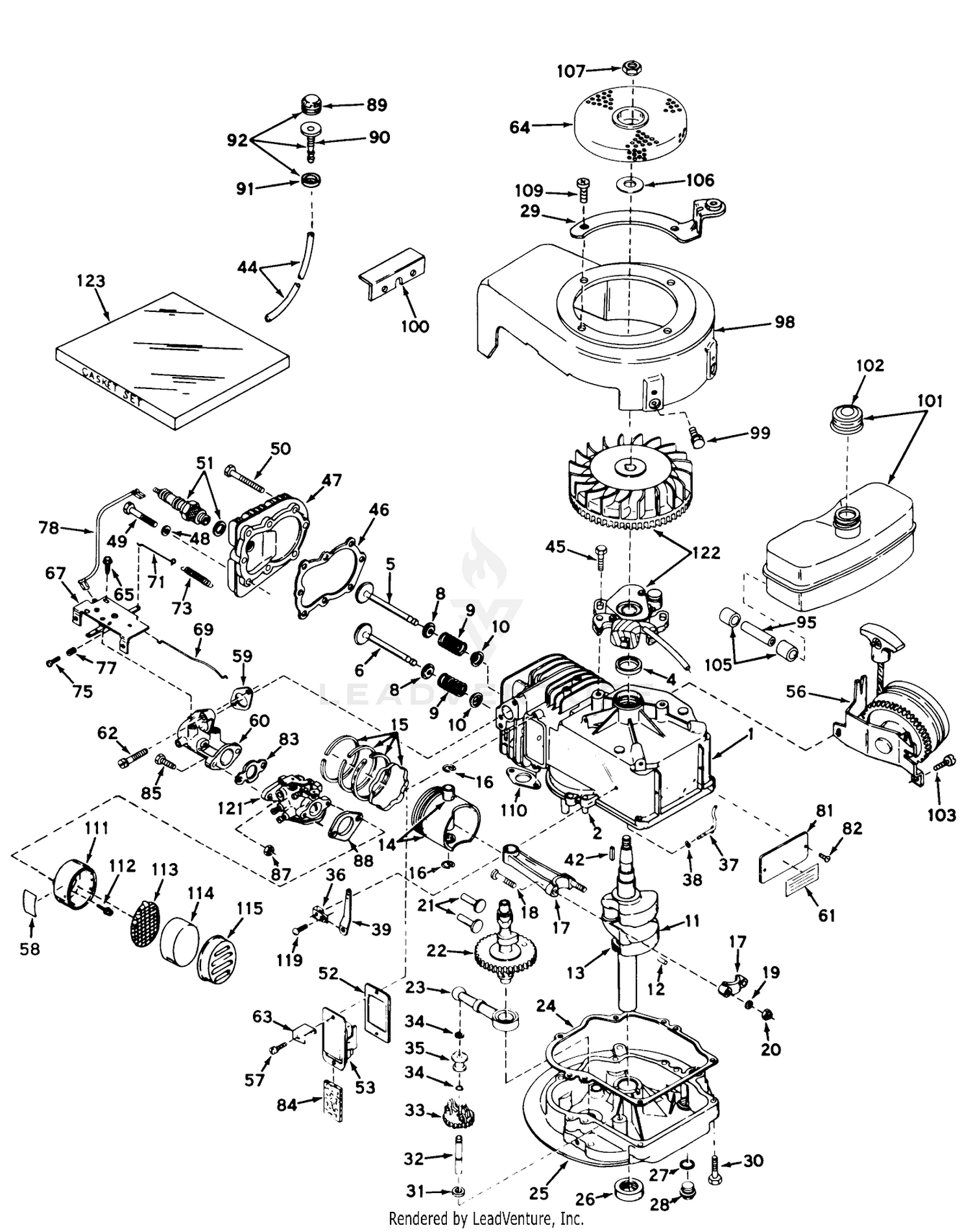

| Ref | Part Number | Description |
|---|
| 1 |
32617 |
Cylinder Assy. (Incl. Ref. 2 4) Price: Call Us |
| 2 |
26727 |
Pin-Dowel Price: Call Us |
| 5 |
29314A |
Valve, Intake (Std.) (Incl. Ref. #7, 8 9) Price: Call Us |
| 5 |
29316A |
Valve, Intake (1/32" Oversize)(Incl. Ref. 8, 9 10) Price: Call Us |
| 6 |
29313A |
Valve, Exhaust (Standard)(Incl. Ref. 8, 9 10) Price: Call Us |
| 6 |
29315A |
Valve, Exhaust (1/32" Overs.)(Incl. Ref. 8, 9 10) Price: Call Us |
| 8 |
31671 |
Cap-Upper Valve Spring Price: Call Us |
| 9 |
31672 |
Spring-Valve Price: Call Us |
| 10 |
31673 |
Cap-Valve, Spring Price: Call Us |
| 11 |
32639 |
Crankshaft Assy. (Incl. Ref. Nos. 12 13) Price: Call Us |
| 12 |
29783 |
Pin, Groove Price: Call Us |
| 13 |
27613 |
Gear, Crankshaft Price: Call Us |
| 14 |
31304 |
Piston Pin Assy. (Incl. 2 of No. 16) (Std.) Price: Call Us |
| 14 |
31305 |
Piston Pin Assy. (Incl. 2 of No. 16) (.010 Oversize) Price: Call Us |
| 14 |
31306 |
Piston Pin Assy. (Incl. 2 of No. 16) (.020 Oversize) Price: Call Us |
| 15 |
27565 |
Ring Set, Piston (Std.) Price: Call Us |
| 15 |
27566 |
Ring Set, Piston (.010 o.s.) Price: Call Us |
| 15 |
27567 |
Ring Set, Piston (.020 o.s.) Price: Call Us |
| 16 |
20381 |
Ring-Retaining, Piston Pin Price: Call Us |
| 17 |
30963A |
Rod Assy., Connecting (Incl. Ref. Nos. 18, 19 20) Price: Call Us |
| 18 |
26706 |
Bolt, Connecting Price: Call Us |
| 19 |
20747 |
Washer Price: Call Us |
| 20 |
27573 |
LOCKNUT Price: Call Us |
| 21 |
27241 |
Lifter-Valve Price: Call Us |
| 22 |
31316 |
Camshaft Price: Call Us |
| 23 |
29914 |
Oil Pump ASM Price: Call Us |
| 25 |
31907 |
Flange Assy., Mounting (Incl. Ref. 26, 27, 28 32) Price: Call Us |
| 28 |
27244 |
Plug Oil Drain Price: Call Us |
| 30 |
650488 |
Screw (1/4-20 x 1-1/4) Price: Call Us |
| 31 |
30590A |
Washer-Flat Price: Call Us |
| 32 |
30574 |
Shaft-Governor Price: Call Us |
| 33 |
30591 |
Gear Assy., Governor (Incl. No.132) Price: Call Us |
| 34 |
29193 |
Ring-Retaining Price: Call Us |
| 35 |
30588A |
Spool-Governor Price: Call Us |
| 36 |
31335 |
Clamp-Lever, Governor Price: Call Us |
| 37 |
30589 |
Rod, Governor (Incl. No. 6) Price: Call Us |
| 38 |
28277 |
Washer-Flat Price: Call Us |
| 39 |
31383 |
Lever, Governor Price: Call Us |
| 42 |
27247 |
Key Flywheel Price: Call Us |
| 44 |
32180A |
Line, Primer Price: Call Us |
| 45 |
650489 |
Screw Price: Call Us |
| 47 |
30579 |
CYLINDER HEAD Price: Call Us |
| 48 |
26073 |
Washer Price: Call Us |
| 49 |
6021 |
Screw Price: Call Us |
| 50 |
6023 |
Screw Price: Call Us |
| 51 |
21943 |
SPARK PLUG Price: Call Us |
| 53 |
31337 |
Breather Assembly (Incl. Nos. 52 84) Price: Call Us |
| 56 |
590450 |
Starter, Side Mount Rewind Price: Call Us |
| 57 |
650128 |
Screw Price: Call Us |
| 58 |
30002 |
MVP KIT-GM225 Price: $103.40 |
| 60 |
31384 |
Pipe, Intake Price: Call Us |
| 62 |
650176 |
Screw, Fil. Hd. Sems Price: Call Us |
| 63 |
30593 |
Retainer Clip Price: Call Us |
| 64 |
32237 |
Screen, Flywheel Price: Call Us |
| 65 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 67 |
32264 |
Control Assy., Speed Price: Call Us |
| 69 |
31385A |
Link, Throttle to Governor Price: Call Us |
| 71 |
31387A |
Link, Governor Spring Price: Call Us |
| 73 |
31386 |
Spring, Governor Price: Call Us |
| 75 |
650549 |
Screw Price: Call Us |
| 77 |
31342 |
Spring-Compression Price: Call Us |
| 78 |
31388 |
Wire, Ground Price: Call Us |
| 81 |
31345 |
IDENTIFICATION PLATE Price: Call Us |
| 82 |
28670 |
Stud Price: Call Us |
| 83 |
31688 |
Gasket-Carburetor Price: Call Us |
| 84 |
31410 |
Element-Breather Price: Call Us |
| 85 |
6202 |
Screw Price: Call Us |
| 87 |
29752 |
Nut and Lock Washer (1/4-28) Price: Call Us |
| 90 |
32184 |
Body, Primer Price: Call Us |
| 91 |
32312 |
Retainer, Primer Bulb Price: Call Us |
| 92 |
32182 |
Primer Assy. (Incl. Ref. Nos. 89, 90 91) Price: Call Us |
| 95 |
31400 |
Line, Fuel Price: Call Us |
| 98 |
32369 |
Housing, Blower Price: Call Us |
| 99 |
650561 |
Screw (1/4-20x19/32) Price: Call Us |
| 101 |
32170 |
Tank, Fuel Price: Call Us |
| 103 |
650191 |
Screw, Fil. Hd. Sems Price: Call Us |
| 105 |
29774 |
Line-Fuel (8.62) Price: Call Us |
| 106 |
650490 |
Washer Price: Call Us |
| 107 |
650607 |
Hex Nut Price: Call Us |
| 109 |
29716 |
Screw Price: Call Us |
| 111 |
31312 |
Body, Air Cleaner Price: Call Us |
| 112 |
28820 |
Screw (10-32 x 1/2) Price: Call Us |
| 113 |
29962 |
Screen, Spacer Price: Call Us |
| 114 |
29661 |
Element, Air Cleaner Price: Call Us |
| 115 |
30585 |
Cover, Air Cleaner Price: Call Us |
| 119 |
650548 |
Screw Price: Call Us |
| 120 |
31522 |
Decal Price: Call Us |
| 121 |
631243 |
Carburetor Price: Call Us |
| 122 |
610716 |
Magneto Price: Call Us |
