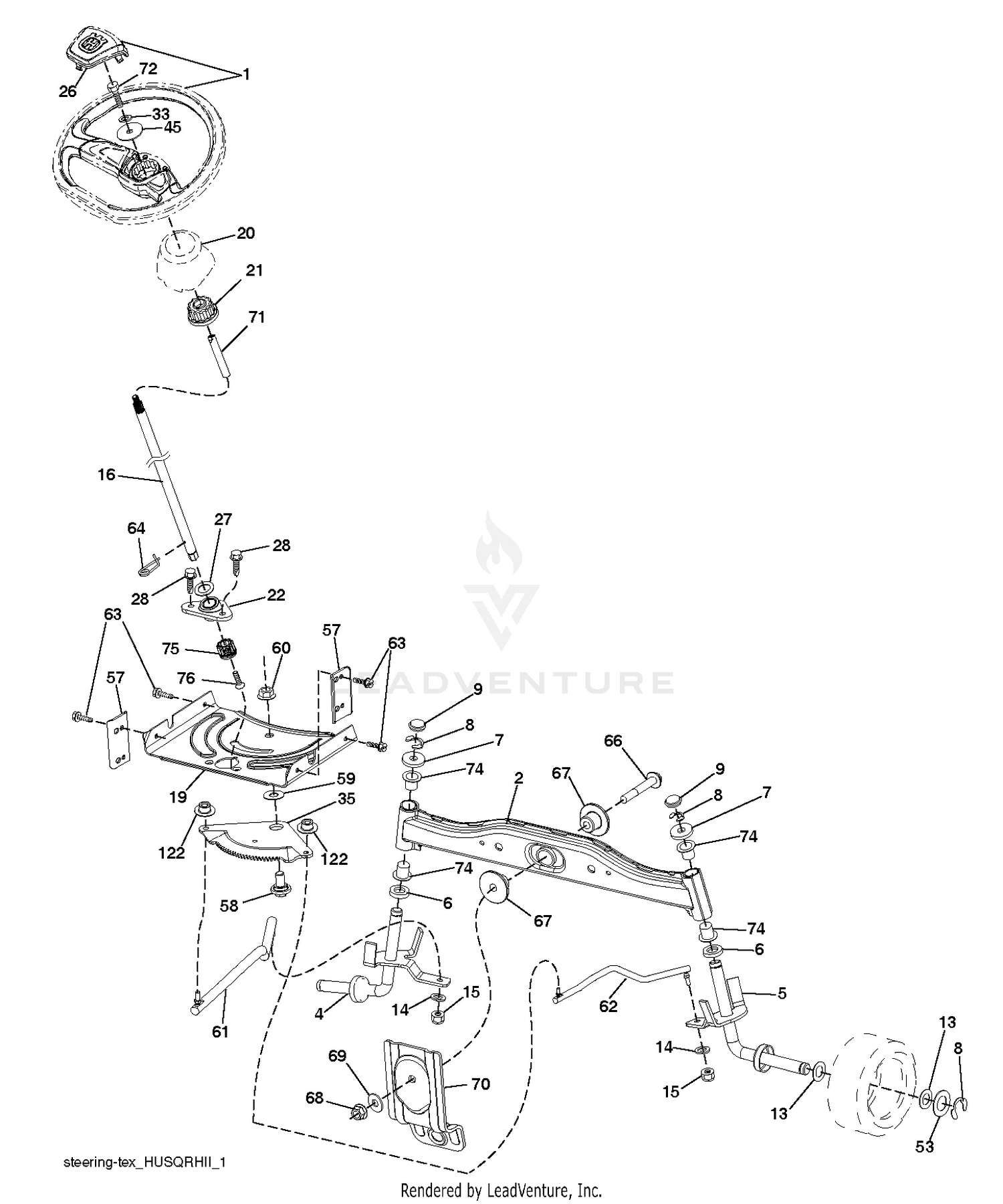

| Ref | Part Number | Description |
|---|
| 1 |
597866101 |
Service Kit Price: $64.99 |
| 1 |
95-8984 |
TUBE ASM Price: $185.98 |
| 2 |
340-70 |
NUT-LOCK Price: $2.10 |
| 2 |
531171101 |
SERVICE KIT AXLE HALF ASM This part replaces 532418168. Price: $59.99 |
| 3 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 4 |
95-8831 |
HOSE ASM Price: $86.26 |
| 5 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
532006266 |
WASHER THRUST Price: $4.99 |
| 6 |
99-3576 |
HOSE-HYD Price: $96.71 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
95-8983 |
TUBE ASM Price: $82.83 |
| 8 |
340-154 |
UNION-BULKHEAD Price: $44.48 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
93-6762 |
SWITCH-BALL Price: $132.17 |
| 10 |
112-9916 |
HYD CYLINDER ASM Price: $752.66 |
| 11 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 12 |
99-3574 |
HOSE ASM Price: $113.84 |
| 13 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers Price: $3.99 |
| 14 |
93-9151 |
FITTING-HYD Price: $40.90 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 15 |
99-3578 |
HOSE ASM Price: $121.48 |
| 16 |
115-3412 |
HOSE ASM Price: $81.68 |
| 16 |
587738903 |
KIT.SRVC.STEERINGSHAFT.3HISHFT This part replaces 585869202. Price: $44.99 |
| 17 |
95-8980 |
TUBE ASM Price: $142.88 |
| 18 |
95-8981 |
TUBE ASM Price: $151.38 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 19 |
95-8982 |
TUBE ASM Price: $329.91 |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT Price: $7.99 |
| 20 |
93-2509 |
CLAMP-TUBE Price: $14.32 |
| 21 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
321-11 |
SCREW-HH Price: $0.36 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 23 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 24 |
95-8990 |
SHAFT-PIVOT, REAR Price: $75.06 |
| 25 |
3220-9 |
NUT-JAM Price: $11.71 |
| 26 |
594949101 |
Steering Price: $5.99 |
| 26 |
86-1480 |
WASHER Price: $4.82 |
| 27 |
136-3425 |
REAR LIFTARM ASM-RM310X This part replaces 115-3475. Price: $558.16 |
| 27 |
596933401 |
Washers Price: $2.99 |
| 28 |
3234-27 |
SCREW-HHF Price: $5.97 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 31 |
104-1392 |
SHAFT-PIVOT Price: $99.73 |
| 32 |
323-6 |
SCREW-HH Price: $0.66 |
| 33 |
323-4 |
SCREW-HH Price: $1.02 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH Price: $2.99 |
| 34 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 35 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 36 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 37 |
95-8613 |
BRACKET-SWITCH Price: $21.12 |
| 38 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 39 |
3217-5 |
NUT-HEX Price: $0.25 |
| 41 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 42 |
121-3616-03 |
GUARD Price: $35.32 |
| 43 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 44 |
322-3 |
SCREW-HH Price: $0.79 |
| 45 |
32128-20 |
NUT-HF Price: $0.99 |
| 45 |
596040001 |
Washers Price: $6.99 |
| 46 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 47 |
95-8575 |
PIN-CLEVIS Price: $15.31 |
| 48 |
63-0070 |
SPACER Price: $1.82 |
| 49 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 585338801. Price: $14.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 72 |
596039701 |
Bolts Price: $3.99 |
| 74 |
532003366 |
BEARING.STEERING.COLUMN Price: $3.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
