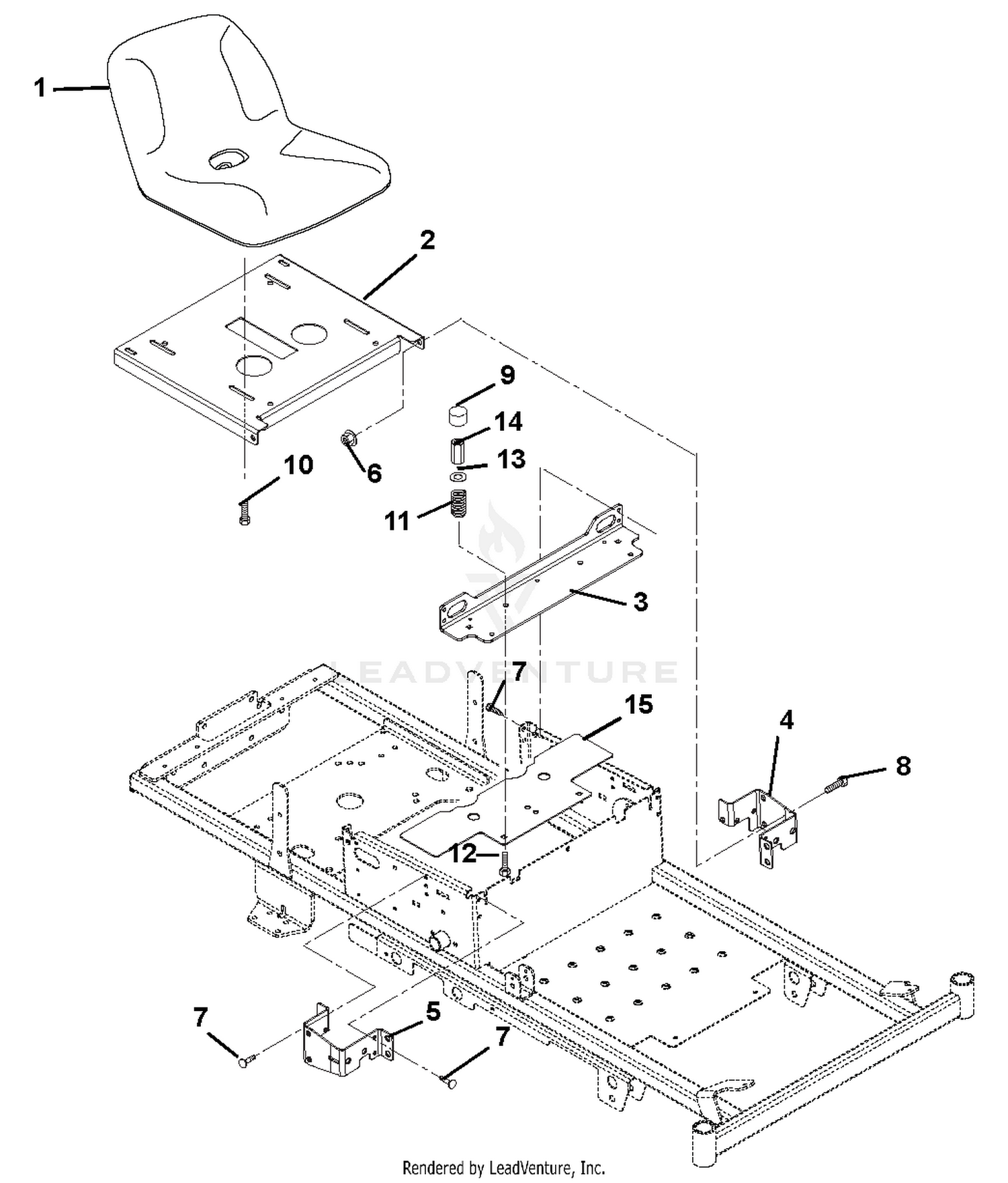

| Ref | Part Number | Description |
|---|
| 1 |
02986700 |
SEAT, V-2505 MICH NO ARMREST Price: $149.95 |
| 2 |
03369351 |
SEAT PLATE Price: $32.95 |
| 3 |
00478351 |
BRKT, SEAT SPRING Price: $21.95 |
| 4 |
07400127 |
SCR,TAP .312-18X.75 HWH TR ZCC This part replaces 00503300. Price: $1.45 |
| 5 |
07400127 |
SCR,TAP .312-18X.75 HWH TR ZCC This part replaces 00503400. Price: $1.45 |
| 6 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 7 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC This part replaces 07411500. Price: $1.45 |
| 8 |
07056700 |
BOLT-SHLDR .375-16X.150 Price: $3.95 |
| 9 |
00337700 |
HUB CAP Price: $2.45 |
| 10 |
07001820 |
BLT, SERHFWH 0.312-18X0.75 GR5 ZCC This part replaces 05900033. Price: $1.95 |
| 11 |
08300021 |
SPRING, SEAT Price: $18.45 |
| 12 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC This part replaces 06212100. Price: $1.45 |
| 13 |
06401103 |
WSHR, FLT .328X.870X.179 ZCC This part replaces 06439100. Price: $2.95 |
| 14 |
06500927 |
NUT, COUPLING .31-18X1.75 ZCC This part replaces 06500015. Price: $3.95 |
