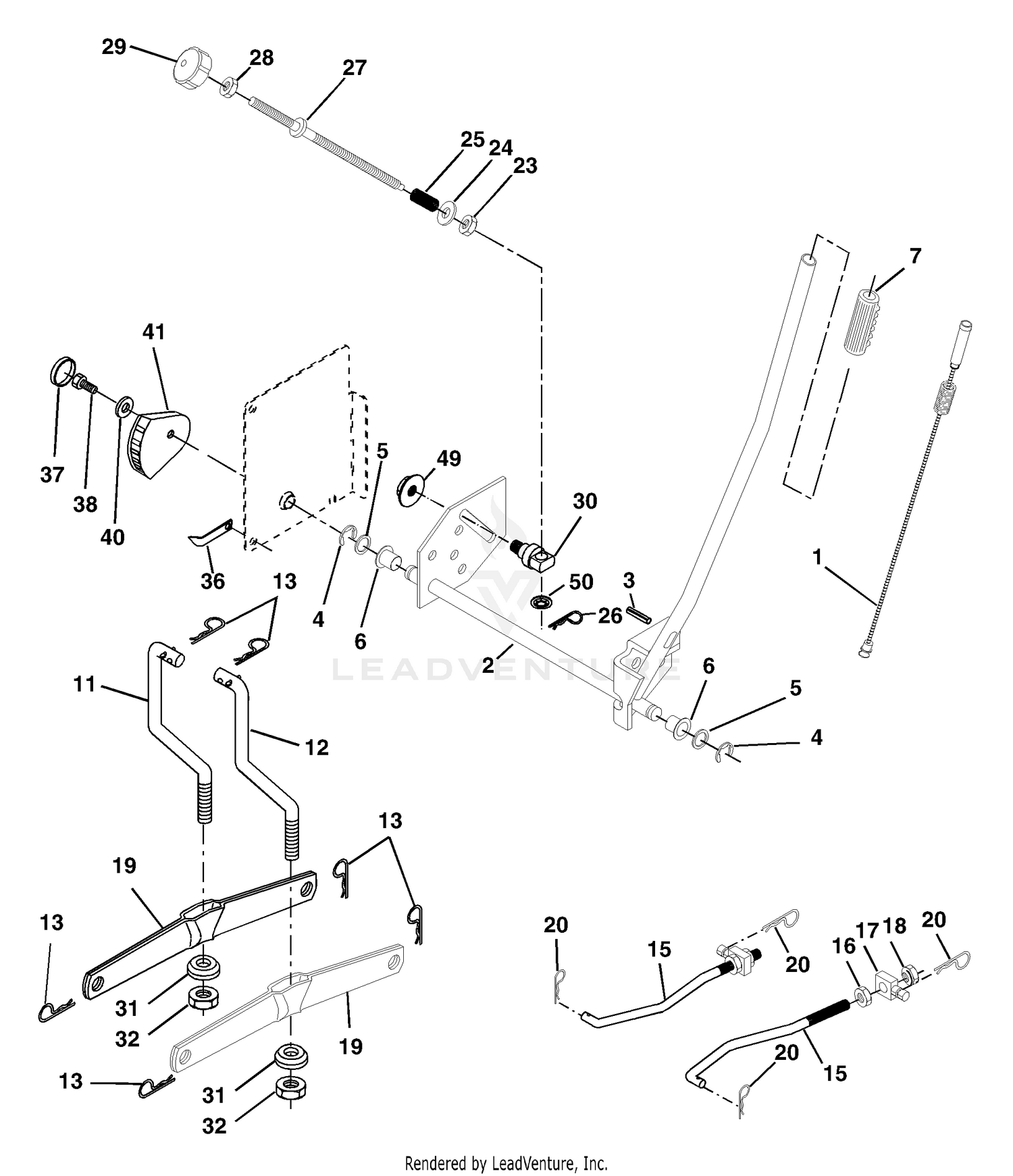

Mower Lift

Mower Lift

Parts (43)

RefPart NumberDescription
1 184432 Plunger Asm. Price: Call Us
1 95-7508 SUPPORT-AXLE Price: $931.33
2 159476 Shaft Asm Lift Price: Call Us
2 95-7506 SUPPORT-AXLE Price: $360.26
3 106-1067 O-RING This part replaces 95-7507. Price: $18.12
3 178981 Pin Groove Price: Call Us
4 12000002 E Ring #5133-62 Price: Call Us
4 95-7537 BUSHING-FLANGED Price: $64.20
5 19211621 Washer 21/32 x 1 x 21 Ga. Price: Call Us
5 99-7590 WASHER-SEAL Price: $2.94
6 120183X Bearing Nylon Price: Call Us
6 99-7589 PLUG Price: $3.73
7 110-4812 AXLE VENT ASM This part replaces 99-7591. Price: $11.06
7 175830 Grip Handle Price: Call Us
8 99-7592 BOLT Price: $1.44
9 106-1068 O-RING This part replaces 99-7593. Price: $7.27
10 104-2377 EXTENSION-VENT Price: $43.73
11 104-8643 PLUG Price: $10.18
11 139865 Link Lift Lh Price: Call Us
12 139866 Link Lift Rh Price: Call Us
13 4939M Retainer Spring Price: Call Us
15 173288 Link Front Price: Call Us
16 73350800 Nut Jam Hex 1/2-13 Unc Price: Call Us
17 175689 Trunnion Blk Zinc Price: Call Us
18 73800800 Nut Lock w/Wsh 1/2-13 Unc Price: Call Us
19 139868 Arm Suspension Rear Price: Call Us
20 163552 Retainer Spring Price: Call Us
23 110807X Nut Special Price: Call Us
24 19131016 Washer 13/32 x 5/8 x 16 Ga. Price: Call Us
25 2876H Spring Price: Call Us
26 169484 Retainer Clip Price: Call Us
27 126971X Rod Adj. Lift Price: Call Us
28 73350600 Nut Hex Jam 3/8-16 Unc Price: Call Us
29 138057 Knob Price: Call Us
30 150233 Trunnion Infin. Height Price: Call Us
31 169865 Bearing Pvt Lift Price: Call Us
32 73540600 Nut Crownlock 3/8-24 Price: Call Us
36 155097 Pointer Height Indicator Price: Call Us
37 123935X Plug Hole Price: Call Us
38 17060516 Screw 5/16-18 x 1 Price: Call Us
40 19112410 Washer 11/32 x 1-1/2 10 Ga. Price: Call Us
41 155098 Indicator Height Price: Call Us
49 145212 Nut Hex Flange Lock Price: Call Us
