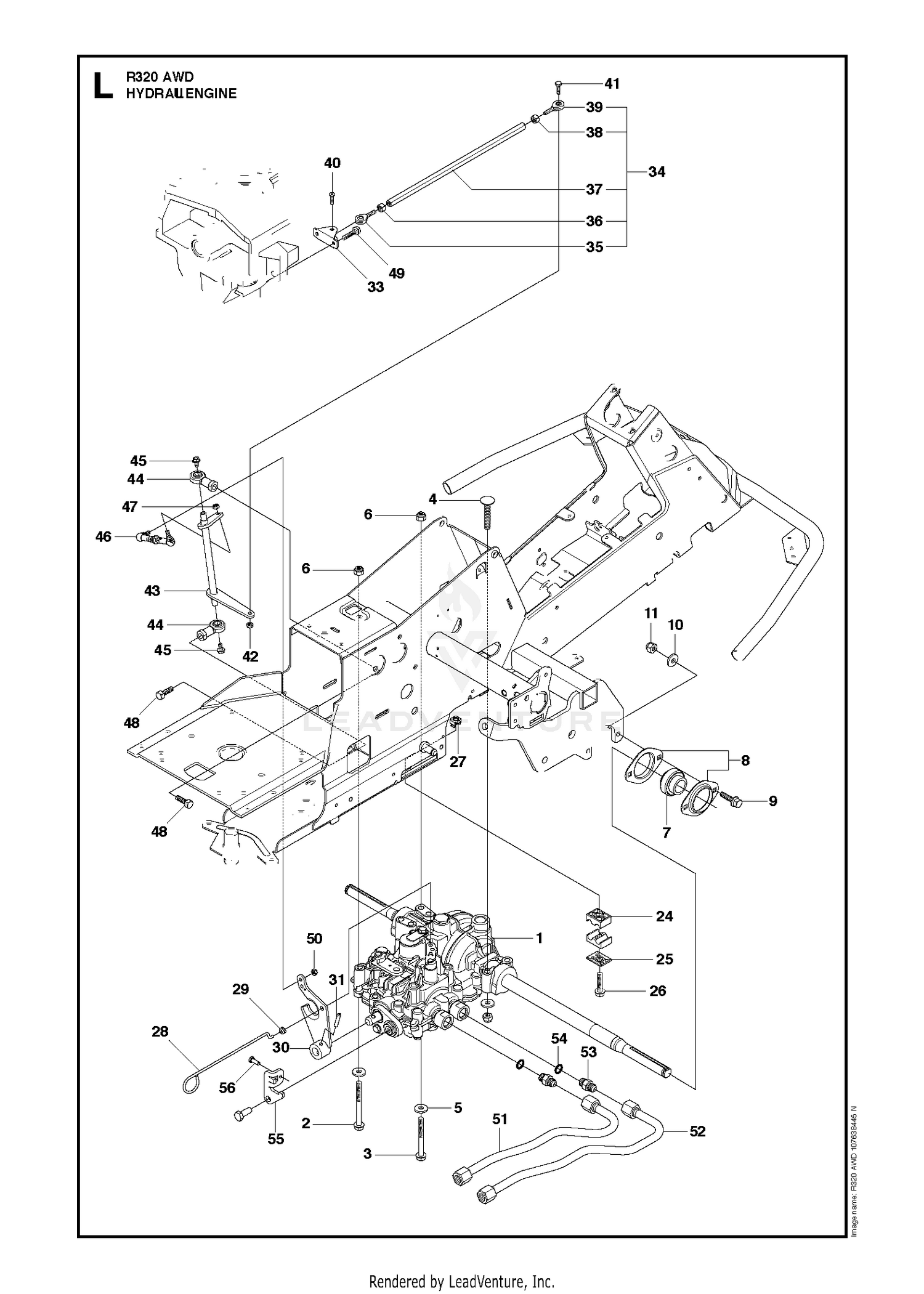

HYDRAULIC PUMP - MOTOR
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-5357-03 | BRACKET-JOYSTICK Price: $35.61 |
| 1 | 575484301 | TRANSMISSION SWE Price: $1,199.99 |
| 2 | 106-4192 | SPACER Price: $5.47 |
| 2 | 725246751 | Hex Bolt Price: $4.99 |
| 3 | 725246451 | SCREW Price: $5.99 |
| 3 | 93-5547 | BUSHING-NYLON Price: $6.15 |
| 4 | 119-3540 | HUB-PIVOT, JOYSTICK Price: $40.61 |
| 4 | 535423803 | SCREW Price: $3.99 |
| 5 | 105-8289 | SPRING-TORSION Price: $15.05 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 106-4193 | WASHER-FINGER, SPRING Price: $3.66 |
| 6 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 7 | 322-9 | SCREW-HH Price: $3.09 |
| 7 | 544008902 | BEARING Price: $64.99 |
| 8 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 8 | 544009002 | BEARING HOUSING Price: $22.99 |
| 9 | 3290-354 | NUT-SPEED Price: $9.99 |
| 9 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 10 | 108-6496 | SWITCH (W/BOOT) Price: $18.62 |
| 10 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 11 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 11 | 95-3003 | SCREW-PPHTF Price: $2.99 |
| 24 | 544373302 | PIPE CLAMP Price: $3.99 |
| 25 | 544373802 | COVER PLATE Price: $4.99 |
| 26 | 506570107 | SCREW EHHFM Price: $5.99 |
| 27 | 544811701 | CAGE NUT Price: $3.99 |
| 28 | 535499701 | ARM Price: $8.99 |
| 29 | 503735801 | FUEL TANK BUSHING Price: $5.99 |
| 30 | 578291901 | LEVER Price: $10.99 |
| 31 | 721434701 | PIN Price: $2.99 |
| 33 | 535492802 | BRACKET Price: $49.99 |
| 34 | 593959403 | NEEDS DESCRIPTION This part replaces 544456703. Price: $74.99 |
| 35 | 535486602 | LINK Price: $64.99 |
| 36 | 503221018 | NUT Price: $2.99 |
| 37 | 535486503 | ROD Price: $37.99 |
| 38 | 731231601 | NUT Price: $2.99 |
| 39 | 535486601 | LINK Price: $54.99 |
| 40 | 544841701 | SCREW Price: $2.99 |
| 41 | 725237071 | SCREW Price: $3.99 |
| 42 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 43 | 535497402 | LEVER Price: $22.99 |
| 44 | 506951701 | LINK Price: $39.99 |
| 45 | 535475212 | SCREW EHHFM Price: $2.99 |
| 46 | 544441901 | ADJUSTING ROD Price: $17.99 |
| 47 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 48 | 725249371 | Screw M10x25 Price: $1.82 |
| 49 | 725236651 | SCREW Price: $2.99 |
| 50 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 51 | 544808001 | HYDRAULIC PIPE Price: $49.99 |
| 52 | 544807901 | HYDRAULIC PIPE Price: $54.99 |
| 53 | 535426806 | PIPE FITTING Price: $17.99 |
| 54 | 592954301 | NEEDS DESCRIPTION Price: Call Us |
| 56 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
