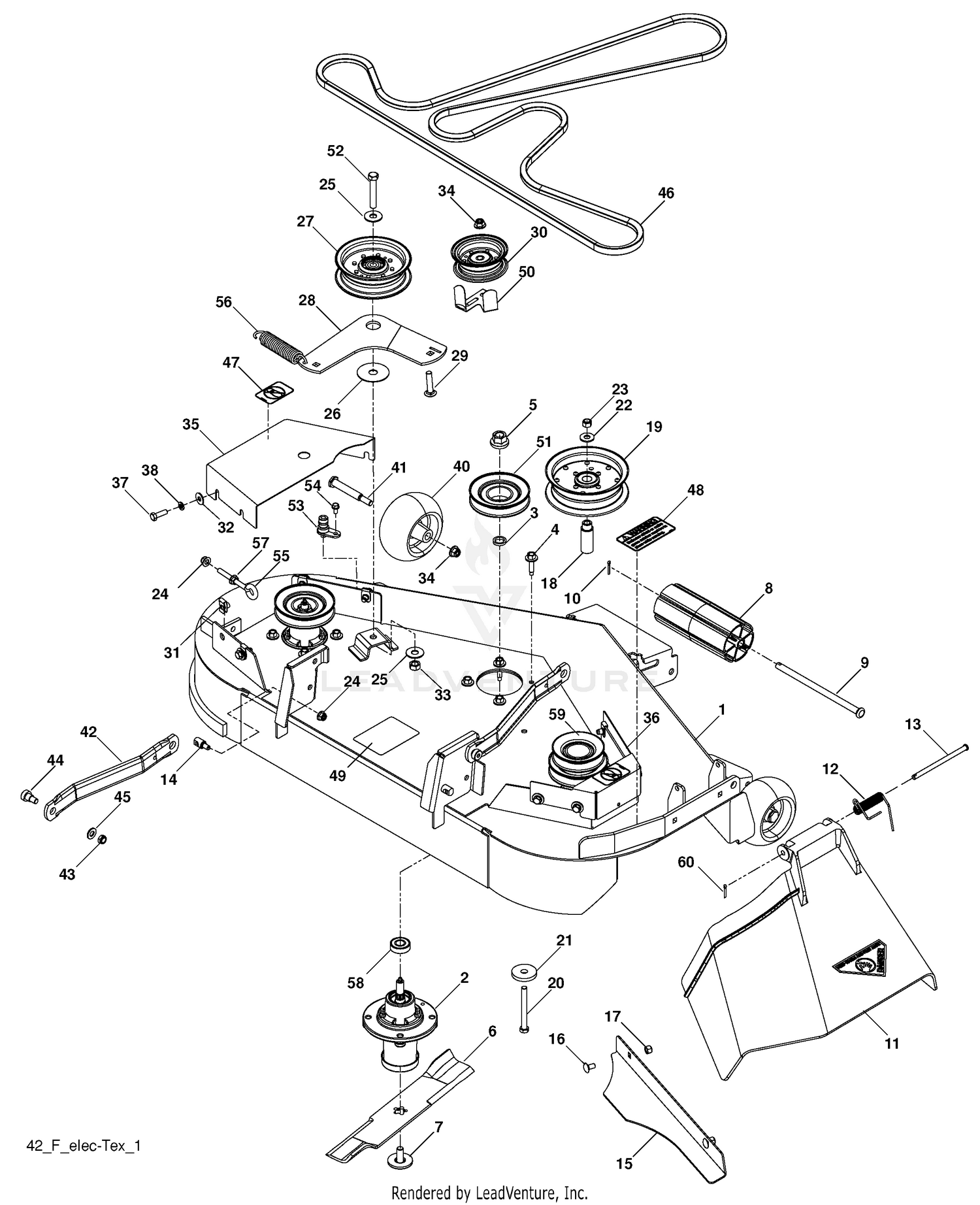

| Ref | Part Number | Description |
|---|
| 1 |
575438001 |
DECK SVC W/DECALS 42 YTH ORNGE Price: $1,599.99 |
| 1 |
75-6380 |
SHAFT-FAN Price: $141.82 |
| 2 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 2 |
539112170 |
MANDREL.DECK.ASSEMBLY Price: $69.99 |
| 3 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99 |
| 3 |
75-6390 |
FAN PULLEY Price: $50.20 |
| 4 |
47-0110 |
SPACER-SPINDLE Price: $1.42 |
| 4 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99 |
| 5 |
596134801 |
Nuts This part replaces 539107590. Price: $1.00 |
| 5 |
75-5310 |
SPACER-BEARING Price: $4.41 |
| 6 |
539112078 |
BLADE, 14 5/8" Price: $19.99 |
| 6 |
75-4450 |
HUB Price: $205.03 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 7 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 539107522. Price: $6.99 |
| 8 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 8 |
67-1630 |
SPACER Price: $28.84 |
| 9 |
323-6 |
SCREW-HH Price: $0.66 |
| 9 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 10 |
539178062 |
Clip Retainer Price: Call Us |
| 10 |
71-2910-03 |
RH REAR ENGINE ANGLE This part replaces 71-2910. Price: $22.46 |
| 11 |
539110731 |
DISCHARGE CHUTE 42" This part replaces 532110731. Price: $49.99 |
| 11 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 12 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 12 |
596646001 |
Springs This part replaces 532110735. Price: $3.99 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 13 |
595935501 |
Pins This part replaces 532110736. Price: $2.99 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 14 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 15 |
539112413 |
CONFINEMENT.PLATE.42".BLACK Price: $27.99 |
| 15 |
75-2460 |
HOSE - AIR CLEANER Price: $64.22 |
| 16 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 16 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 17 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 17 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 18 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 18 |
575224501 |
BUSHING, IDLER Price: $27.99 |
| 19 |
589766102 |
Pulleys This part replaces 539132728. Price: $27.99 |
| 20 |
539108271 |
HCS 3/8-16 X 3-1/2 GR5 ZD Price: $4.99 |
| 20 |
75-1360 |
DISCONTINUED Price: Call Us |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 22 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 22 |
75-0900 |
DISCONTINUED XREF Price: Call Us |
| 23 |
5-3637 |
SPACER Price: $2.23 |
| 23 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 24 |
48-7880 |
NUT-HEX This part replaces 43-5970. Price: $0.25 |
| 24 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 25 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
| 25 |
596437601 |
Washers This part replaces 539104864. Price: $2.99 |
| 26 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 26 |
532178515 |
WASHER Price: $5.99 |
| 27 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 27 |
57-6390 |
NUT-JAM Price: $0.89 |
| 28 |
574827102 |
ARM, IDLER, BLK Price: $27.99 |
| 28 |
75-2830 |
L/H REAR ENG BRKT *B Price: $22.38 |
| 29 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 29 |
539990923 |
RHSNB 3/8-16X1-3/4 Price: $2.99 |
| 30 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 30 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 31 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 31 |
70-8220 |
GROUND CABLE Price: $12.98 |
| 32 |
323-11 |
SCREW-HH Price: $1.08 |
| 32 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 33 |
595901901 |
Nuts This part replaces 539119124. Price: $2.99 |
| 33 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 34 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 34 |
63-7140 |
MOUNT-SHOCK, ENGINE Price: $54.67 |
| 35 |
575224702 |
SHIELD.BELT.LH.ORANGE Price: $29.99 |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 36 |
575967102 |
SHIELD, BELT, RH 42 ORG This part replaces 575500302. Price: $29.99 |
| 36 |
66-2320-03 |
LH FRONT MOUNT ASM This part replaces 66-2320. Price: $62.36 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 38 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 38 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 39 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 40 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 40 |
75-4220 |
DISCONTINUED Price: Call Us |
| 41 |
596434404 |
Bolts This part replaces 539107608. Price: $4.99 |
| 41 |
63-6720-03 |
IDLER LEVER This part replaces 63-6720. Price: $66.34 |
| 42 |
323-7 |
SCREW-HH Price: $0.65 |
| 42 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 43 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 43 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 44 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 44 |
75-1380 |
V-BELT, FAN Price: $40.41 |
| 45 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 45 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 46 |
27-9560 |
SPACER Price: $3.87 |
| 46 |
574845601 |
BELT, 42" FAB DECK Price: $79.99 |
| 47 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 47 |
581724301 |
DECAL.DECK.6MIL.EURO.NOSTEP This part replaces 539105743. Price: $3.99 |
| 48 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 48 |
539113224 |
DECAL, CAUTION Price: $4.99 |
| 49 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 49 |
531229002 |
DECAL.DECK.BELT.ROUTING.48/54 This part replaces 532198785. Price: $1.99 |
| 50 |
321-4 |
SCREW-HH Price: $0.99 |
| 50 |
531165901 |
SERVICE KIT GUARD This part replaces 575224301. Price: $4.99 |
| 51 |
322-2 |
SCREW-HH Price: $0.69 |
| 51 |
575224401 |
PULLEY, MANDREL 4.08 OP Price: $29.99 |
| 52 |
596435201 |
Bolts This part replaces 539104870. Price: $2.99 |
| 52 |
75-3780 |
FAN-ENGINE Price: $367.12 |
| 53 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 53 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 54 |
2412-126 |
R-CLAMP Price: $2.51 |
| 54 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 55 |
323-9 |
SCREW-HH Price: $1.29 |
| 55 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 56 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 56 |
596645601 |
Springs This part replaces 539106850. Price: $8.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 58 |
539112050 |
BEARING, BALL Price: $5.99 |
| 59 |
575416201 |
PULLEY, COLLECTION 42 Price: $49.99 |
| 60 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
