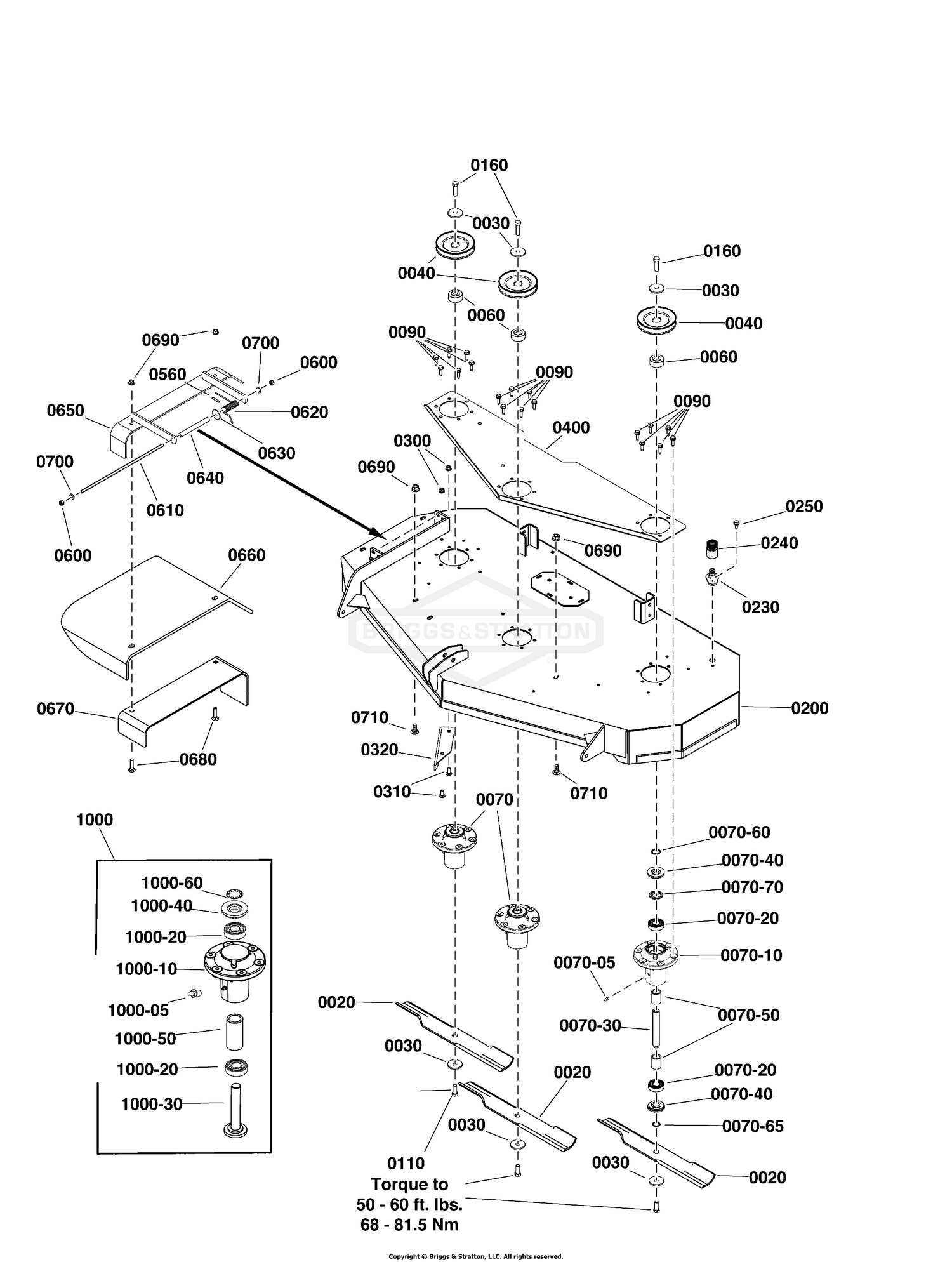

| Ref | Part Number | Description |
|---|
| 0030 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0040 |
1732951SM |
PULLEY-04.60 OD 1.000 Price: $18.18 |
| 0060 |
706362 |
SPACER, HUB Price: $8.91 |
| 0090 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 0110 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 Price: $4.70 |
| 0160 |
1921212SM |
CAPSCREW, Hex Head, 7/16-14 X 1 1/2 Price: $3.85 |
| 0200 |
1687923YP |
HOUSING, Mower Deck w/Decals, 52” FAB Price: $1,801.99 |
| 0230 |
1756247YP |
ADAPTOR, Washout Port Price: $5.78 |
| 0240 |
1756246YP |
CONNECTOR, Washout Port 46/52” Black Poly Price: $14.39 |
| 0250 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 0300 |
703115 |
NUT Price: $3.06 |
| 0310 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0320 |
5405557YP |
PLATE This part replaces 5405557AYP. Price: $19.77 |
| 0400 |
1760973AYP |
PLATE, Deck Top, 52” ZT - Black Price: $110.43 |
| 0560 |
5023489SM |
CAP, PROTECTOR, .120 Price: $3.40 |
| 0600 |
5025045SM |
NUT, 5/16-24 HEX NYLO Price: $2.97 |
| 0610 |
5042555SM |
ROD, BRAKE LINKAGE Price: $9.14 |
| 0620 |
5023385SM |
SPRING, TORSION Price: $7.48 |
| 0630 |
5025164SM |
WASHER, 5/16" FENDER Price: $3.51 |
| 0640 |
5050086X8SM |
TORSION SPRING SPACER Price: $8.05 |
| 0650 |
1760936AYP |
WELDMENT Price: $119.91 |
| 0660 |
84011104 |
CHUTE, Discharge This part replaces 5413498YP. Price: $37.05 |
| 0670 |
1760930AYP |
SUPPORT Price: $91.49 |
| 0680 |
703406 |
CAPSCREW,3/8-16X1.5 Price: $4.15 |
| 0690 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK Price: $3.82 |
| 0700 |
703302 |
WASHER, 5/16 Price: $3.82 |
| 1000 |
84003174 |
ARBOR ASSEMBLY Price: $103.20 |
