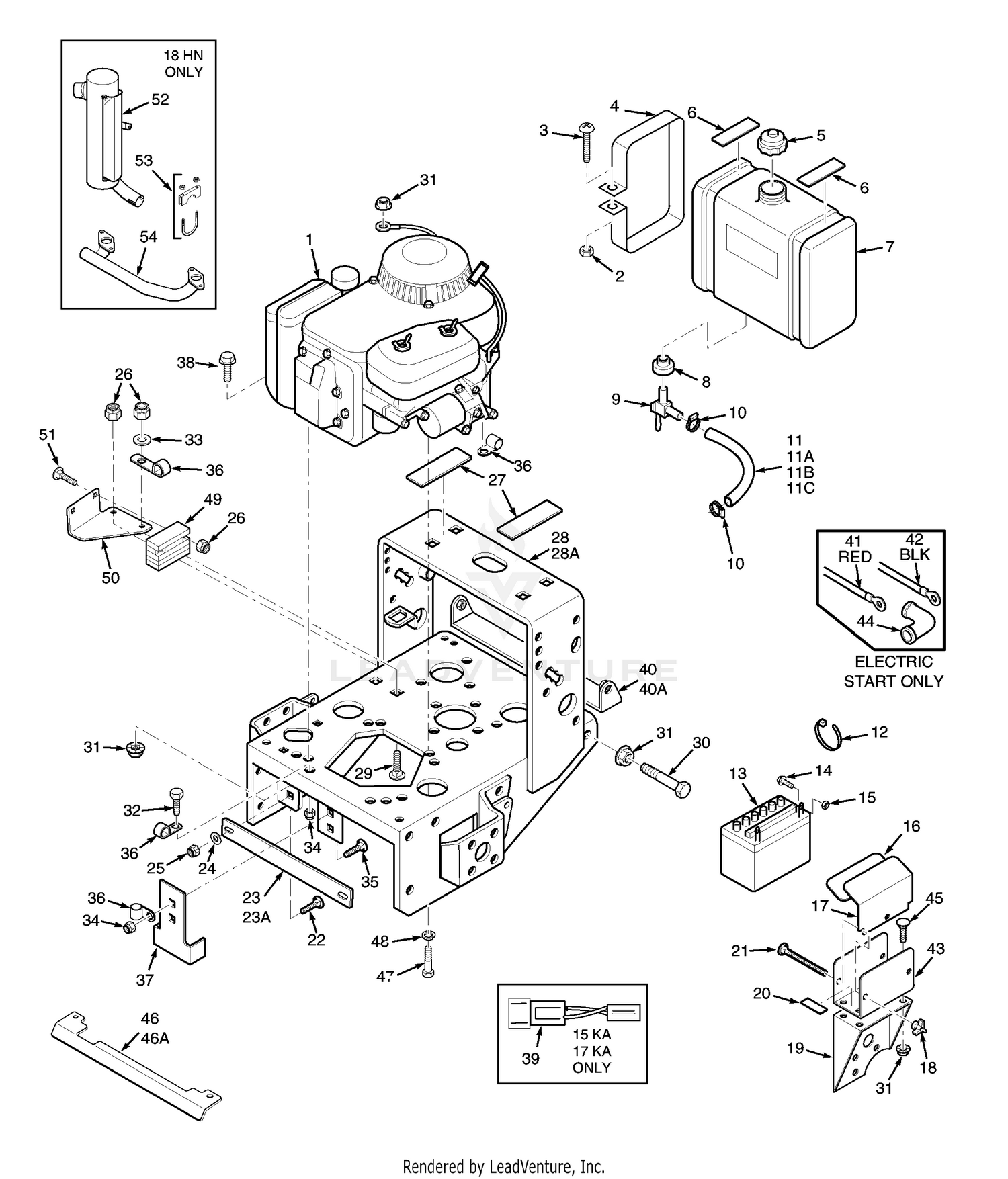

| Ref | Part Number | Description |
|---|
| 1 |
482145 |
Engine, 17KAE Kawasaki Price: Call Us |
| 2 |
04020-02 |
Hex Nut, 1/4-20 Price: Call Us |
| 3 |
04010-10 |
Screw, 1/4-20 x 2" Rnd. Hd. Phil. Price: Call Us |
| 4 |
421239 |
Strap, Fuel Tank Price: Call Us |
| 5 |
481603 |
Cap, Fuel Tank Price: Call Us |
| 6 |
48292 |
Pad, Rubber-Fuel Tank - Upper Price: Call Us |
| 8 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 9 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 10 |
48059-01 |
Clamp, Fuel Hose Price: Call Us |
| 11A |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058. Price: Call Us |
| 12 |
48028-05 |
Cable Tie Price: Call Us |
| 13 |
482700 |
Battery Price: Call Us |
| 14 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 15 |
04020-02 |
Nut, 1/4-20 Price: Call Us |
| 16 |
48099 |
Pad Price: Call Us |
| 17 |
42392 |
Battery Cover Price: Call Us |
| 18 |
04029-01 |
Wing Nut, 1/4-20 Price: Call Us |
| 19 |
423746 |
Battery Support Price: Call Us |
| 20 |
48661 |
Pad, Rubber Price: Call Us |
| 21 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 22 |
04003-11 |
Carriage Bolt, 3/8-16 X 1-1/4" Price: Call Us |
| 23 |
423748 |
Brace, (16" Small Frame) Price: Call Us |
| 24 |
04043-04 |
Flat Washer .391 x .938 x .105 Price: Call Us |
| 25 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 26 |
04021-08 |
Nut, 1/4-20 Elastic Stop Price: Call Us |
| 27 |
48205 |
Pad, Rubber-Fuel Tank Lower Price: Call Us |
| 28 |
461745 |
Engine Deck, 16" Wide w/Decals This part replaces 461667. Price: Call Us |
| 29 |
04003-09 |
Bolt, 1/4-20 x 1-1/4" Carriage Price: Call Us |
| 30 |
04001-17 |
Bolt, 5/16-18 x 2" Hex Head Price: Call Us |
| 31 |
04019-03 |
Nut, 5/16-18 Serr. Flange Price: Call Us |
| 32 |
04001-08 |
Hex Head Bolt, 5/16-18 x .75" Price: Call Us |
| 33 |
04040-14 |
Flat Washer 1/4" Price: Call Us |
| 34 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 35 |
04003-04 |
Carriage Bolt, 5/16-18 x 1" Price: Call Us |
| 36 |
48030-09 |
Clamp Price: Call Us |
| 37 |
421370 |
Clutch Bracket Price: Call Us |
| 38 |
04017-19 |
Cap Scrw, 5/16-18 x 1.50" Sr. Flg Price: Call Us |
| 40 |
45418 |
Pulley Guard, 16" Frame Price: Call Us |
| 41 |
48029-02 |
Battery Cable, 31.5" Red Price: Call Us |
| 42 |
48029-14 |
Battery Cable, 31.5" Black Price: Call Us |
| 43 |
423308 |
Battery Box Price: Call Us |
| 44 |
48126 |
Rubber Boot Price: Call Us |
| 45 |
04003-12 |
Carriage Bolt, 5/16-18 x .75" Price: Call Us |
