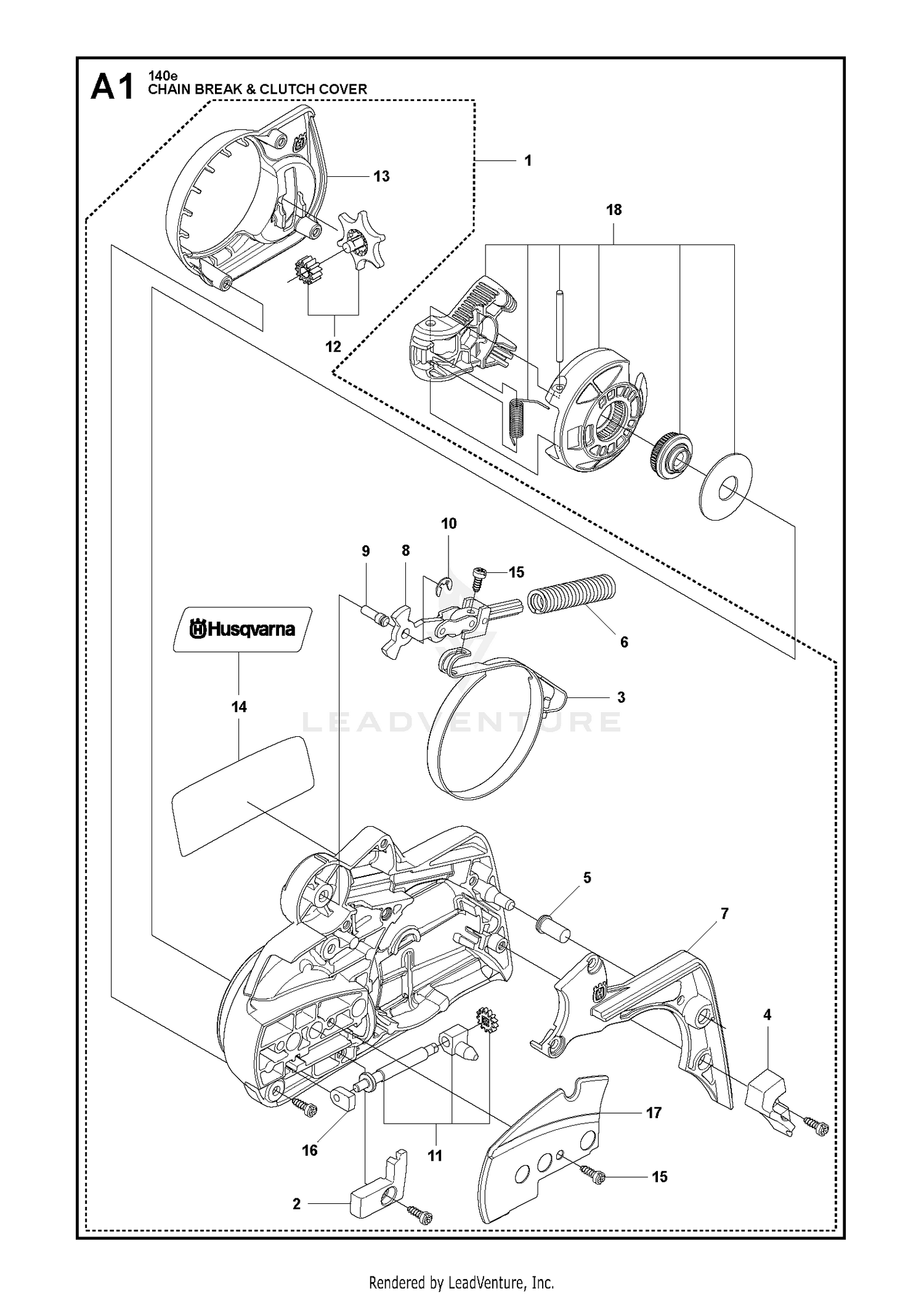

CHAIN BRAKE & CLUTCH COVER
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544194907 | ASSY CHAIN BRAKE HUSQ ORANGE This part replaces 544194905. Price: $49.99 |
| 2 | 504542801 | COVER Price: $3.99 |
| 3 | 544306001 | BRAKE BAND ASSY Price: $8.99 |
| 4 | 544253101 | WEAR PROTECTION Price: $4.99 |
| 5 | 503855201 | SLEEVE Price: $4.99 |
| 6 | 505892601 | BRAKE SPRING Price: $3.99 |
| 8 | 503890802 | JOINT Price: $19.99 |
| 9 | 503892901 | PIN Price: $2.99 |
| 10 | 735310820 | E-RING 4 Price: $2.99 |
| 11 | 537392901 | CHAIN TENSIONER SCREW, COMP. Price: $6.99 |
| 12 | 537347201 | CHAIN TENSIONER WHEEL, COMP. Price: $6.99 |
| 13 | 537392601 | HEAT SHIELD Price: $7.99 |
| 14 | 544357501 | DECAL, CLUTCH HOUSING Price: $3.99 |
| 15 | 503217010 | SCREW Price: $3.99 |
| 16 | 525354301 | BEARING SLEEVE Price: $5.99 |
| 17 | 505321001 | WEAR PLATE Price: $3.99 |
| 18 | 537347801 | KNOB, COMPLETE Price: $17.99 |
