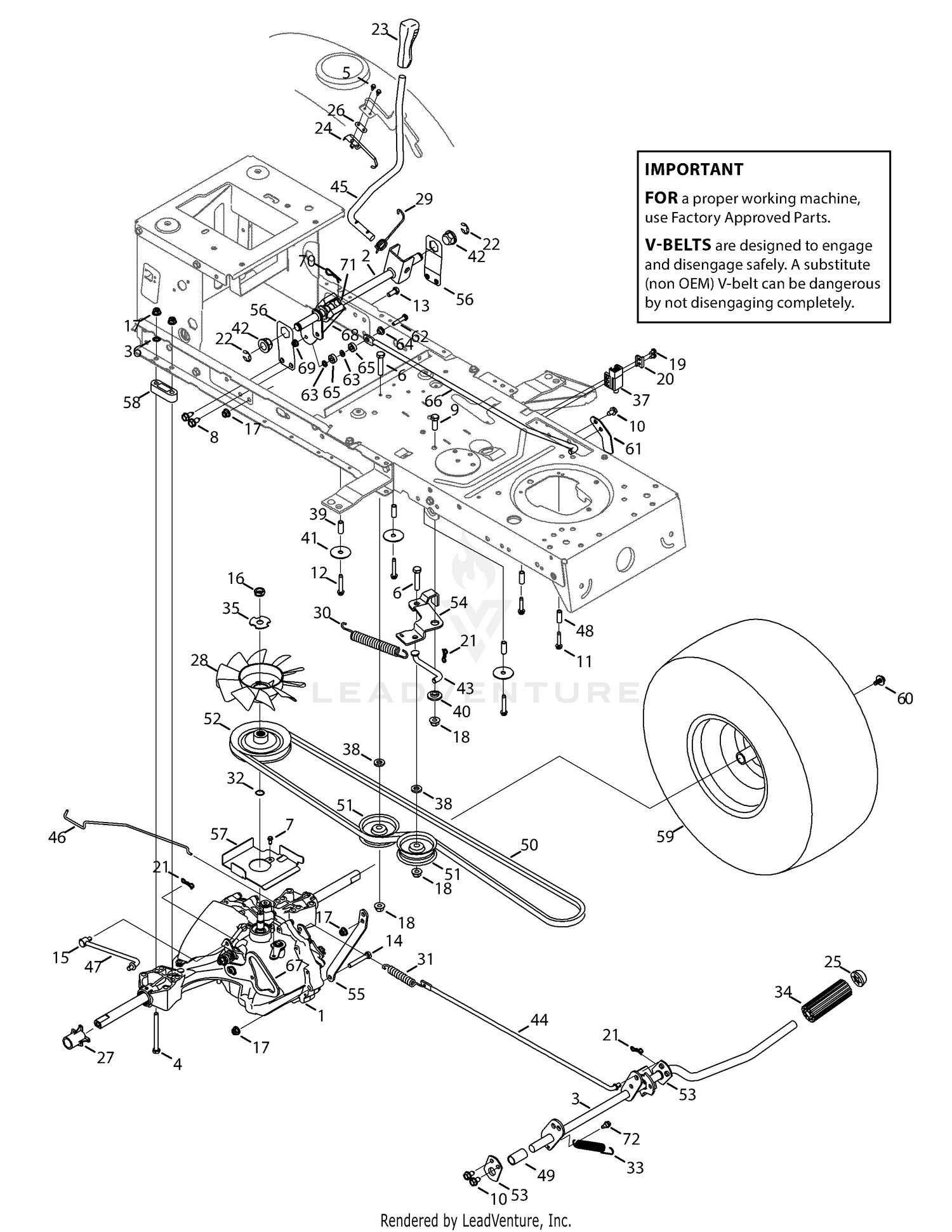

| Ref | Part Number | Description |
|---|
| 1 |
918-04892C |
HYDRO TRANSMISSION ASSEMBLY This part replaces 918-04892B. Price: $973.94 |
| 2 |
647-04200A |
Hydro Handle Control Assembly Price: $21.40 |
| 3 |
647-04261A-0637 |
Hydro Pedal Assembly Price: $32.92 |
| 4 |
710-1266 |
Hex Screw, 5/16-18 x 3.5 Price: $8.66 |
| 5 |
710-0227 |
Screw, #8-18:0.500 Price: $3.90 |
| 6 |
710-0347 |
Hex Screw, 3/8-16:1.75 Price: $4.39 |
| 7 |
910-0224 |
Screw, #10-16:0.500 Price: $3.19 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
710-0514 |
Hex Screw, 3/8-16:1.00 Price: $3.78 |
| 10 |
710-0604A |
Screw, 5/16-18:0.625 Price: $3.96 |
| 11 |
710-0809 |
Screw, 1/4-20:1.250 Price: $6.37 |
| 12 |
710-1026 |
Screw, 1/4-20 x 1.75 Price: $5.94 |
| 13 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 14 |
710-3103 |
Screw, 5/16-18 x 2.00 Price: $4.02 |
| 15 |
711-04448 |
Ferrule, 5/16-24 X .312 DIA. Price: $9.07 |
| 16 |
712-0346 |
Jam Nut, 1/2-20 This part replaces 912-0346. Price: $3.95 |
| 17 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 18 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 19 |
728-04021 |
Rivet Price: $3.42 |
| 20 |
17962 |
Plate Switch Price: $4.36 |
| 21 |
714-04040 |
Cotter Pin, Bow Tie Price: $1.28 |
| 22 |
716-0106A |
E Rign, .625 DIA Price: $4.42 |
| 23 |
720-0311 |
Handle Grip Price: $13.26 |
| 24 |
725-04249 |
Hydro Spring Switch Price: $9.09 |
| 25 |
726-0214 |
Push Cap, 5/8 Price: $9.11 |
| 26 |
926-0320 |
Insulator Plate Nut Price: $6.01 |
| 27 |
731-08237 |
Sleeve, .765 ID X 2.11 LG Price: $3.49 |
| 28 |
731-06098 |
Hydro Fan Price: $17.02 |
| 29 |
732-04225 |
Torsion Spring Price: $10.75 |
| 30 |
732-04229 |
Extension Spring, .75 DIA. X 6.02 Price: $19.09 |
| 31 |
732-0716D |
Extension Spring, .59 OD X 4.00 LG Price: $11.49 |
| 32 |
732-0729 |
Wire Ring Price: $4.20 |
| 33 |
732-04587 |
Extension Spring, .63 DIA X 4.95 LG Price: $6.51 |
| 34 |
735-0239A |
FOOT PAD This part replaces 735-0239. Price: $10.76 |
| 35 |
736-04263 |
Lock Washer, TRANS HYDRO Price: $5.94 |
| 36 |
736-0607 |
Lock Washer, 5/16 EXT TOOTH Price: $3.66 |
| 37 |
925-04039 |
Switch Interlock Price: $22.73 |
| 38 |
736-3010 |
Flat Washer, .407X.812X.135:HT Price: $4.02 |
| 39 |
750-04456 |
Spacer, .260 x .372 x 1.420 Price: $6.20 |
| 40 |
738-04430 |
SHOULDER SPACER 1.375 x .380 X.154 Price: $3.63 |
| 41 |
736-0430 |
Flat Washer, .350 x 1.59 x .062 Price: $3.90 |
| 42 |
941-0225 |
Hex Flange Bearing Price: $6.55 |
| 43 |
747-05603 |
Declutching Rod Price: $10.24 |
| 44 |
747-05242A |
Brake Rod Price: $15.61 |
| 45 |
747-04296A |
Hydro Control Handle Price: $36.19 |
| 46 |
747-05245 |
Hydro Bypass Rod Price: $8.69 |
| 47 |
747-04407A |
Hydro Control Rod Price: $15.64 |
| 48 |
750-0566A |
Spacer, .260 x .375 x 1.030 LG Price: $9.17 |
| 49 |
750-05593 |
Spacer, .640 ID X .76 OD X 1.60 Price: $3.13 |
| 50 |
954-04252 |
V-BELT 4L x 84.17" Price: $42.39 |
| 51 |
756-04224 |
Flat Idler Pulley 2.75 OD Price: $24.80 |
| 52 |
756-04308 |
Input Pulley Price: $27.39 |
| 53 |
783-04536B-0637 |
Support Pedal Bracket Price: $5.67 |
| 54 |
783-04570B-0637 |
Idler Arm Price: $17.04 |
| 55 |
783-06551-0637 |
Torque Bracket Price: $11.59 |
| 56 |
783-04585A |
Handle Bracket Price: $4.95 |
| 57 |
783-06558-0637 |
Belt Support Bracket Price: $6.01 |
| 58 |
948-0334 |
Spacer, T-Axle Price: $9.87 |
| 59 |
634-0104-0911 |
Wheel, 20 x 8 x 8 - Grey Price: $127.19 |
| 60 |
710-05339A |
SCREW 5/16-24 x .750 GR5 This part replaces 710-05339. Price: $3.70 |
| 61 |
783-06807A-0637 |
Stop Pedal Plate Price: $3.86 |
| 62 |
710-0606 |
Hex Screw, 1/4-20 x 1.50 Price: $4.67 |
| 63 |
936-0329 |
Lock Washer, 1/4 Price: $3.90 |
| 64 |
738-04483 |
SHOULDER SPACER Price: $3.53 |
| 65 |
741-04280 |
Ball Bearing, .25 x .6875 x .25 Price: $13.98 |
| 66 |
747-05598A-0637 |
Hydro Rod, RTN Price: $14.87 |
| 67 |
783-06750A-0637 |
Cam Bracket, RTN Price: $7.44 |
| 68 |
783-06756-0637 |
Pivot Bracket, RTN Price: $8.70 |
| 69 |
712-04064 |
Nut, Flange Lock, 1/4-20, GrF Price: $3.64 |
| 70 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 71 |
741-3065B |
Hex Flange Bearing, .628 ID Price: $7.45 |
| 72 |
738-04278 |
Shoulder Screw, 1/4-20 x 0.50 Price: $5.99 |
