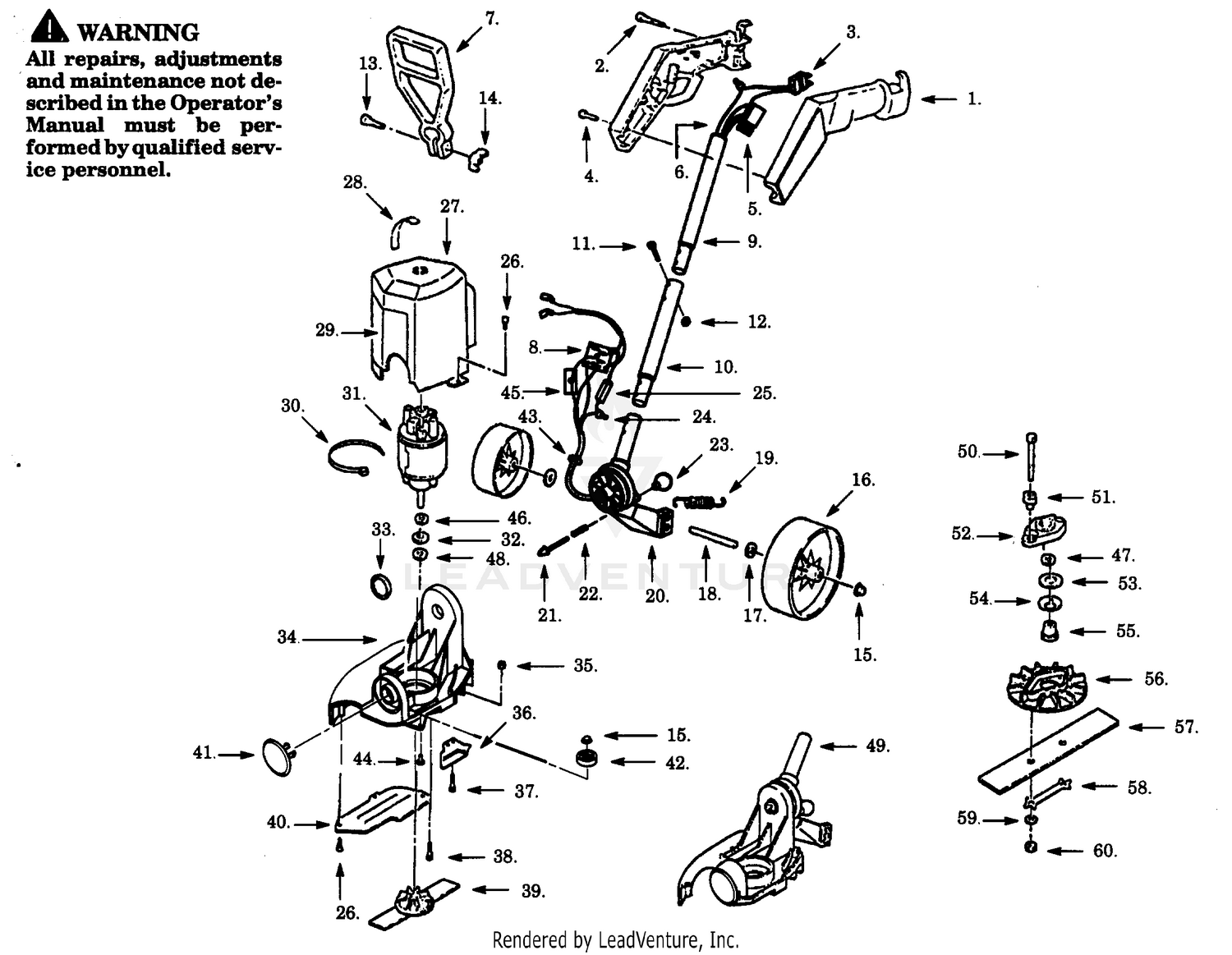

EDGER ASSEMBLY
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 112-5262 | SHAFT-ROLLER This part replaces 107-1984. Price: $134.71 |
| 1 | 534826525 | Handle Set Price: $5.99 |
| 2 | 534826802 | Screw Price: $0.99 |
| 3 | 534936001 | Power Plug Price: $3.33 |
| 3 | 93-3007 | SEAL-OIL Price: $4.46 |
| 4 | 107-1997 | FITTING-GREASE Price: $5.68 |
| 4 | 534826801 | Screw Price: $1.99 |
| 5 | 109966 | BEARING-BALL Price: $14.99 |
| 5 | 534193004 | Switch Price: $3.33 |
| 6 | 534101163 | Harness Ass'y. Price: $6.16 |
| 6 | 93-1251 | SEAL-INNER Price: $9.50 |
| 7 | 534156405 | Assist Handle Price: $3.33 |
| 7 | 93-1252 | SEAL-OUTER Price: $18.76 |
| 8 | 32120-62 | RING-RETAINING Price: $4.29 |
| 8 | 530400816 | Bridge Ass'y. Price: $3.33 |
| 9 | 253-70 | SEAL-OIL Price: $6.52 |
| 9 | 534838001 | Upper Tube Price: $3.33 |
| 10 | 534838101 | Lower Tube Price: $11.99 |
| 11 | 534829600 | Screw Price: $3.33 |
| 12 | 530403094 | Nut This part replaces 534235901. Price: $1.99 |
| 13 | 534828400 | Screw Price: $1.99 |
| 14 | 534828500 | Wing Nut Price: $3.33 |
| 15 | 534121000 | Push Nut Price: $1.99 |
| 16 | 534236800 | Rear Wheel Price: $4.99 |
| 17 | 534137900 | Washer Price: $1.99 |
| 18 | 534137701 | Rear Axle Price: $3.33 |
| 19 | 534121300 | Spring Price: $0.99 |
| 20 | 534137505 | Rear Swivel Price: $13.68 |
| 21 | 534700002 | Swivel Lock Shaft Price: $2.99 |
| 22 | 534710000 | Swivel Lock Spring Price: $1.99 |
| 23 | 534720001 | Knob Price: $1.99 |
| 24 | 534561000 | Terminal Cap Price: $1.99 |
| 25 | 534134500 | Resister Price: $2.99 |
| 26 | 534826800 | Screw Price: $1.99 |
| 27 | 534824902 | Motor Cover Price: $3.33 |
| 28 | 534838800 | Rear Adjust Label (Not a serviceable part) Price: $3.33 |
| 29 | 534036731 | Motor Cover Label Price: $3.33 |
| 30 | 534134700 | Tie Wrap Price: $0.99 |
| 31 | 534225015 | Motor Ass'y. Price: $3.33 |
| 32 | 534938100 | Washer Price: $1.99 |
| 33 | 534780000 | Retaining Ring Price: $0.99 |
| 34 | 534036715 | Deck Frame Price: $6.56 |
| 35 | 534315300 | Locknut Price: $1.99 |
| 36 | 534830000 | Blade Guide Price: $3.99 |
| 37 | 534315200 | Screw Price: $0.44 |
| 38 | 534136401 | Screw Price: $1.99 |
| 39 | 534135205 | Blade Ass'y. Price: $22.48 |
| 40 | 534131515 | Side Guard Plate Price: $5.99 |
| 41 | 534696005 | Plug Price: $1.99 |
| 42 | 534615805 | Roller Price: $1.99 |
| 43 | 534742400 | Washer Price: $1.99 |
| 44 | 534642300 | Rivet Price: $1.99 |
| 45 | 534954300 | Shield Price: $1.99 |
| 46 | 534246700 | Retaining Ring Price: $0.99 |
| 47 | 534758000 | Washer Price: $1.99 |
| 48 | 534757900 | Washer Price: $1.99 |
| 49 | 534135185 | Edger Frame Ass'y. Price: $59.99 |
| 50 | 534135901 | Screw Price: $1.99 |
| 51 | 534135605 | Insulating Sleeve Price: $3.33 |
| 52 | 534135410 | Clutch Plate Price: $3.99 |
| 53 | 534136300 | Washer Price: $1.99 |
| 54 | 534238900 | Spring Washer Price: $1.99 |
| 55 | 534135500 | Clutch Sleeve Price: $5.99 |
| 56 | 534135305 | Fan Price: $3.33 |
| 57 | 534205300 | Blade Price: $11.99 |
| 58 | 534135700 | Lock Strap Price: $1.99 |
| 59 | 534136600 | Lockwasher Price: $1.99 |
| 60 | 534136200 | Locknut Price: $1.99 |
