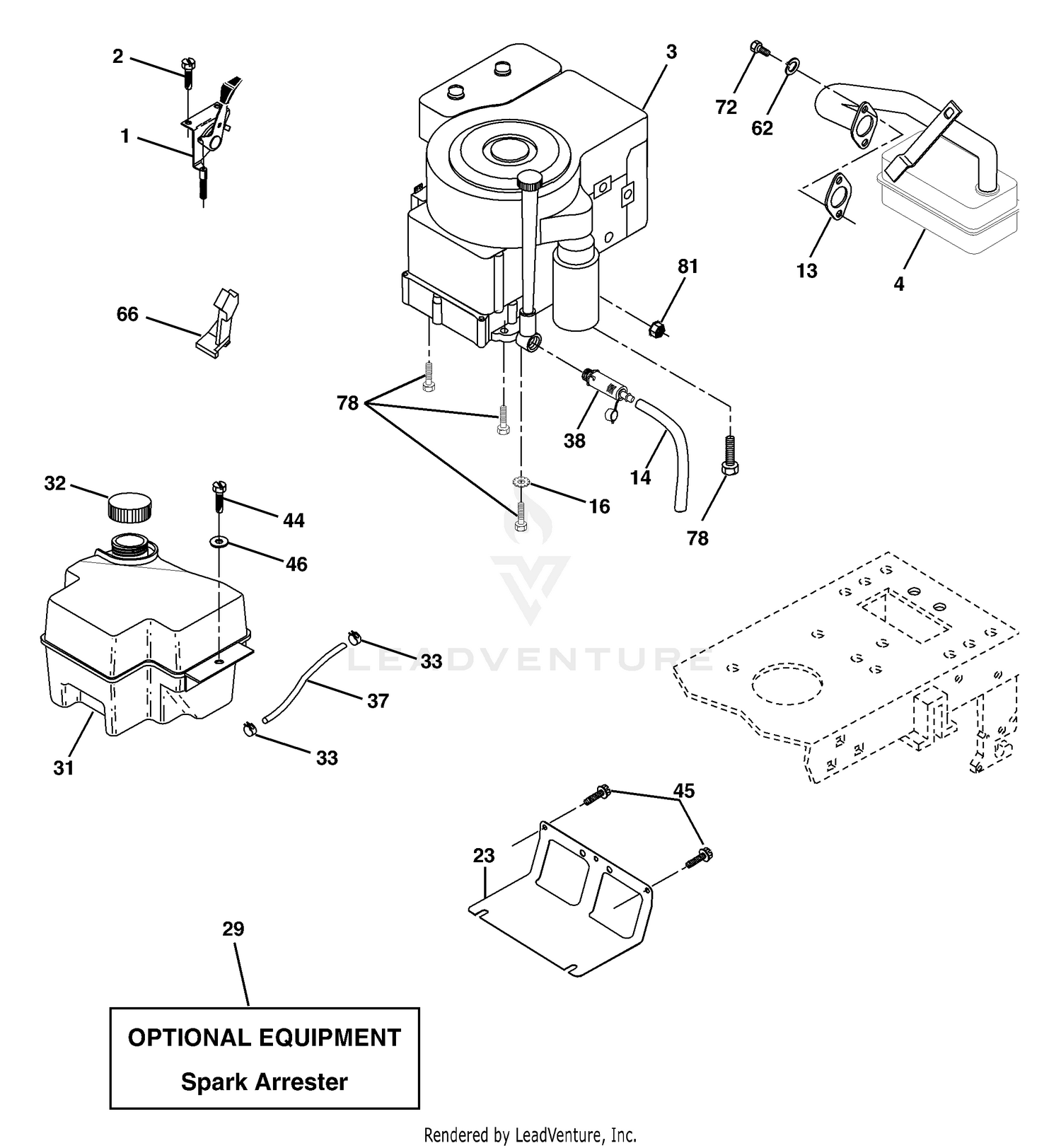

| Ref | Part Number | Description |
|---|
| 1 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 1 |
532170865 |
THROTTLE.CONTROL.CABLE.BLACK Price: $22.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 2 |
83-7470 |
SHIM Price: $8.86 |
| 3 |
83-4970-03 |
BRACKET-BEARING This part replaces 83-4970. Price: $95.44 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 5 |
76-2460 |
BEARING ASM Price: $67.16 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
54-9090 |
YOKE-END Price: $202.33 |
| 8 |
54-9180 |
U-JOINT KIT Price: $58.18 |
| 9 |
72-3420 |
YOKE AND SHAFT ASM Price: $278.13 |
| 10 |
302-58 |
FITTING-STRAIGHT Price: $0.81 |
| 11 |
83-5260 |
TUBE-YOKE, SLIP Price: $657.90 |
| 12 |
72-3440 |
SHAFT-YOKE Price: $743.98 |
| 13 |
253-155 |
SEAL-OIL Price: $14.36 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 14 |
71-4590 |
WASHER-THRUST Price: $3.32 |
| 15 |
76-4690-03 |
COUPLING-AXLE This part replaces 76-4690. Price: $318.79 |
| 16 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
3274-64 |
SCREW-HSH This part replaces 3274-8. Price: $1.02 |
| 18 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 19 |
322-8 |
SCREW-HH Price: $1.26 |
| 20 |
284-3 |
PLUG Price: $7.14 |
| 21 |
32151-87 |
RING-RETAINING Price: $1.22 |
| 22 |
71-4580 |
BEARING Price: $80.51 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 23 |
71-4570-03 |
HOUSING-CLUTCH, ROLLER This part replaces 71-4570. Price: $367.36 |
| 24 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 25 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 26 |
251-337 |
BEARING Price: $37.82 |
| 27 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 28 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 29 |
33094-00 |
WASHER-PLAIN This part replaces 48-8030. Price: $0.25 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3274-34 |
SCREW-HSFH Price: $3.73 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532161911. Price: $59.99 |
| 31 |
83-4900 |
DISCONTINUED Price: Call Us |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 66 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
