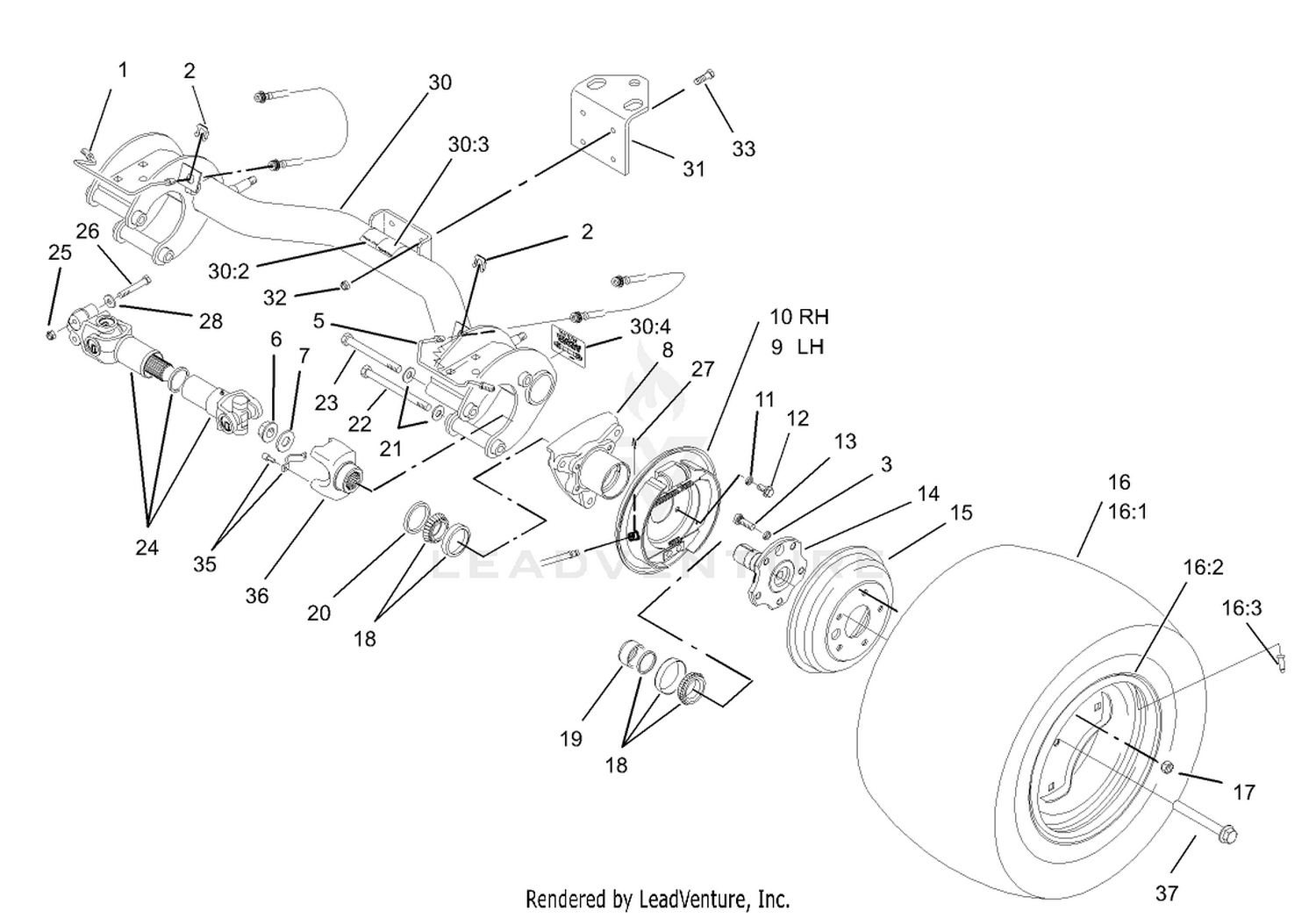

| Ref | Part Number | Description |
|---|
| 1 |
87-4090 |
RH REAR BRAKE TUBE ASM Price: $37.72 |
| 2 |
87-3580 |
CLIP-RETAINER Price: $2.48 |
| 3 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 5 |
87-4080 |
LH REAR BRAKE TUBE ASM Price: $37.72 |
| 6 |
105-1764 |
NUT-FLANGE, SIDE LOCK Price: $12.87 |
| 7 |
104-9216 |
WASHER-HARDENED Price: $5.60 |
| 8 |
87-2240 |
HOUSING-AXLE This part replaces 87-2240-03. Price: $142.42 |
| 9 |
112-7961 |
LH REAR BRAKE ASM This part replaces 93-7126. Price: $377.59 |
| 10 |
112-7962 |
RH REAR BRAKE ASM This part replaces 93-7125. Price: $377.59 |
| 11 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 13 |
87-2080 |
BOLT-HEX, TAP Price: $2.34 |
| 14 |
105-1717-03 |
AXLE-STUB Price: $367.71 |
| 15 |
93-7128 |
DRUM-BRAKE Price: $223.14 |
| 17 |
23-7270 |
NUT-LUG Price: $10.37 |
| 18 |
87-1970 |
BEARING-MATCHED SET Price: $120.59 |
| 19 |
87-4060 |
SPACER-BEARING, WHEEL Price: $37.35 |
| 20 |
87-3590 |
SEAL-BEARING Price: $14.19 |
| 21 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 22 |
325-20 |
SCREW-HH Price: $6.29 |
| 23 |
325-19 |
SCREW-HH Price: $2.57 |
| 24 |
98-2967 |
DRIVESHAFT ASM KIT This part replaces 98-2918. Price: $968.71 |
| 25 |
32128-36 |
NUT-HF Price: $1.56 |
| 26 |
98-2939 |
SCREW-CAP Price: $3.10 |
| 27 |
87-3310 |
CLIP-CABLE, BRAKE Price: $2.04 |
| 28 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 30 |
115-7833 |
HD AXLE ASM This part replaces 105-7961. Price: $1,118.69 |
| 31 |
92-5951-03 |
ANGLE-HITCH Price: $77.86 |
| 32 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 33 |
323-7 |
SCREW-HH Price: $0.65 |
| 35 |
92-4189 |
STRAP KIT Price: $102.10 |
| 36 |
92-4190 |
YOKE Price: $379.94 |
