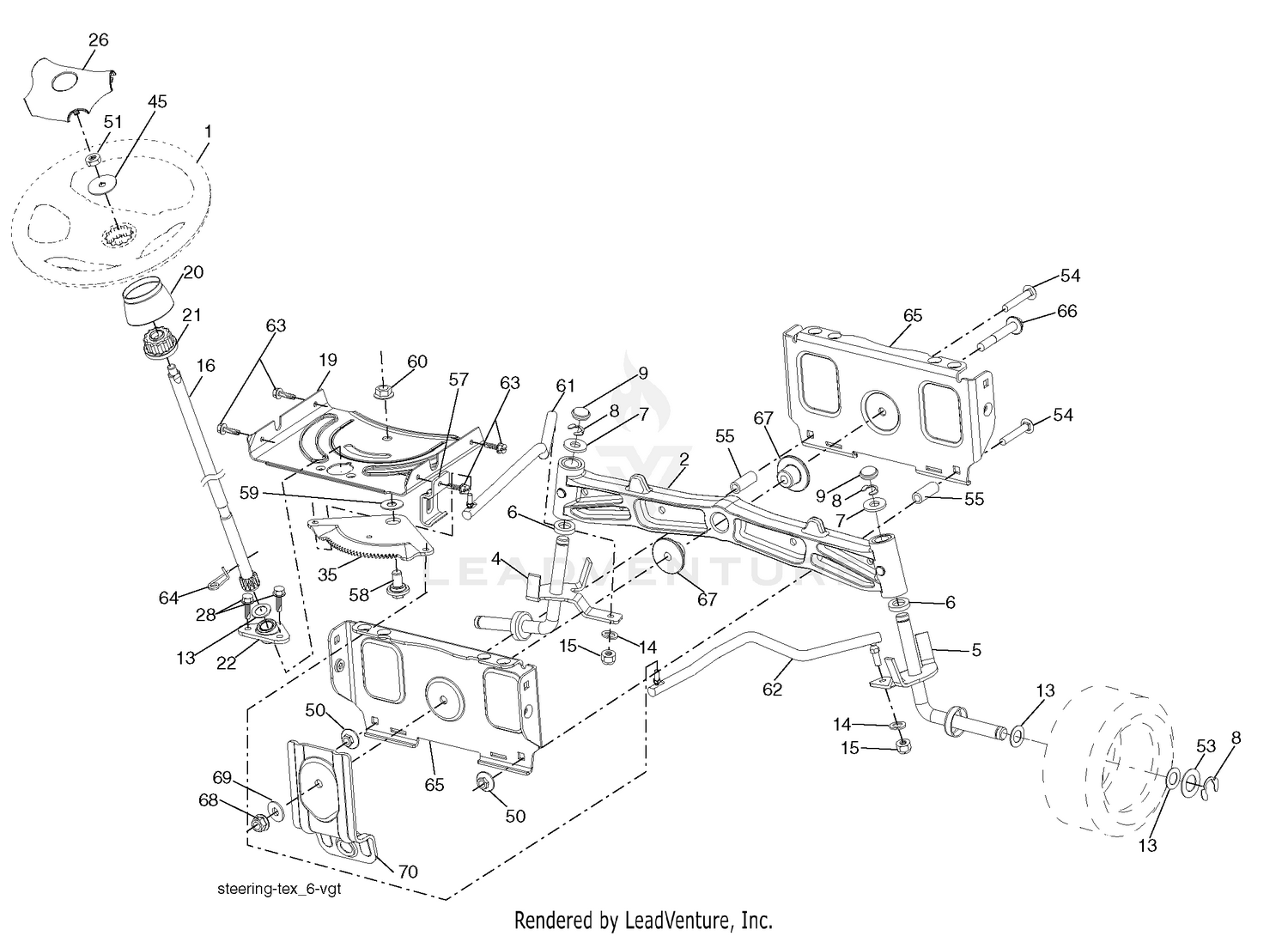

| Ref | Part Number | Description |
|---|
| 1 |
186093X428 |
Wheel, Steering Price: Call Us |
| 2 |
195968 |
Axle Asm., Front Price: Call Us |
| 4 |
403087 |
Spindle Asm., LH Price: Call Us |
| 5 |
403088 |
Spindle Asm., RH Price: Call Us |
| 6 |
6266H |
Bearing, Race Thrust Harden Price: Call Us |
| 7 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 8 |
12000029 |
Ring, Klip #T5304-75 Price: Call Us |
| 9 |
121232X |
Cap, Spindle Price: Call Us |
| 010 |
98-7693 |
ALTERNATOR ASM Price: $511.95 |
| 13 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 14 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 15 |
73540600 |
Nut, Crown Lock 3/8-24 unf Price: Call Us |
| 16 |
194746 |
Shaft Steering Price: Call Us |
| 19 |
194729 |
Plate Steering Price: Call Us |
| 020 |
98-7707 |
PULLEY-ALTERNATOR Price: $64.31 |
| 20 |
199743X428 |
Boot, Steering Price: Call Us |
| 21 |
186737 |
Adapter, Wheel Steering Price: Call Us |
| 22 |
194845 |
Bushing, Strg. Blk Price: Call Us |
| 26 |
186095X428 |
Insert, Wheel Steering Price: Call Us |
| 28 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 030 |
98-7708 |
NUT Price: $7.76 |
| 35 |
194732 |
Gear, Sector Plate Price: Call Us |
| 040 |
98-7709 |
COLLAR Price: $8.79 |
| 45 |
19183812 |
Washer 9/16ID x 2-3/8OD 12GZIN Price: Call Us |
| 050 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 50 |
73900600 |
Nut Lock 3/8-16 unc Price: Call Us |
| 51 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 53 |
188967 |
Washer Hardened .793 x 1.637 x .060 Price: Call Us |
| 54 |
74760636 |
Bolt Hex 3/8-16 unc x 2-1/4 Price: Call Us |
| 55 |
197636 |
Spacer Brace Axle Price: Call Us |
| 57 |
197246 |
Bracket Upstop Price: Call Us |
| 58 |
194747 |
Bolt Shoulder Sector Pivot CFM Price: Call Us |
| 59 |
194748 |
Washer Thrust Sector Steering Price: Call Us |
| 060 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 60 |
73971000 |
Nut Flange Lock 5/8-11 Price: Call Us |
| 61 |
194740 |
Draglink LH Price: Call Us |
| 62 |
194741 |
Draglink, RH Price: Call Us |
| 63 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 64 |
199849 |
Retainer Clip Spring Steering Price: Call Us |
| 65 |
194734 |
Brace Axle Front Price: Call Us |
| 66 |
71020748 |
Bolt Hex Fghd 7/16-14 x 3 Serr Price: Call Us |
| 67 |
194737 |
Bushing PM Front Axle Price: Call Us |
| 68 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 69 |
199162 |
Washer 1.5 x .505 x .118 Price: Call Us |
| 070 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 080 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 090 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 140 |
98-7719 |
FRAME-END Price: $88.65 |
| 150 |
98-7720 |
COVER-END Price: $39.58 |
| 160 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
