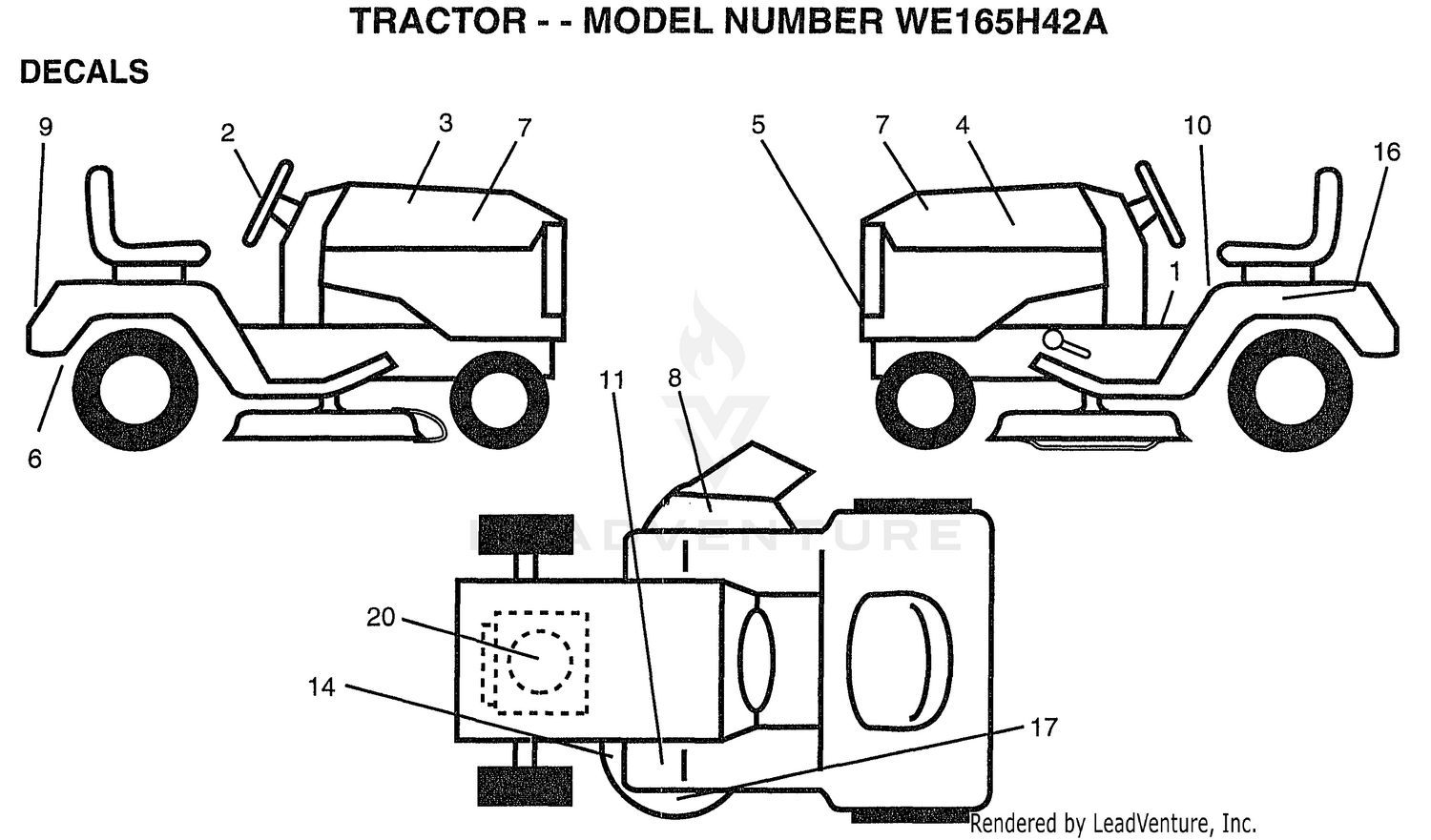

| Ref | Part Number | Description |
|---|
| C42 |
GRASS |
CATCHER Price: Call Us C42 |
| 1 |
156993 |
DECAL SADDLE OPER Price: Call Us |
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
162398 |
DECAL, INS STRG WH Price: Call Us |
| 2 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 3 |
162389 |
DECAL.HOOD.RH. Price: Call Us |
| 3 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 4 |
162390 |
DECAL.HOOD.LH Price: Call Us |
| 4 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 5 |
162392 |
DECAL, GRILLE LENS Price: Call Us |
| 5 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 6 |
142341 |
DECAL DRAWBAR LH Price: Call Us |
| 6 |
46-8840-01 |
SPRING-LIFT ARM Price: $35.71 |
| 7 |
164425 |
DECAL.PANEL.SIDE Price: Call Us |
| 8 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 9 |
162395 |
DECAL.FENDER.LOGO Price: Call Us |
| 9 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 10 |
157140 |
DECAL.CAUT.ENG/FR Price: Call Us |
| 10 |
324-4 |
SCREW-HH Price: $0.95 |
| 11 |
101892X |
DECAL T Price: Call Us |
| 11 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 12 |
21-2860-01 |
PUSH ARM BRACKET ASM Price: $154.46 |
| 13 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 14 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 15 |
32128-42 |
NUT-HF Price: $0.98 |
| 16 |
145005 |
DECAL.BATRY.3-3908 Price: Call Us |
| 16 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 17 |
105-9550-01 |
SPRING-TORSION, LH (LIGHT) Price: $217.23 |
| 17 |
162391 |
DECAL, DECK GRASSEATER Price: Call Us |
| 17 |
21-2900-01 |
SPRING-TORSION, LH Price: $566.83 |
| 19 |
21-2890-01 |
SPRING-TORSION, RH Price: $566.83 |
| 20 |
273801 |
DECAL ENGINE Price: Call Us |
| 21 |
28-8070 |
LANYARD Price: $13.85 |
| 22 |
99-1299-03 |
ROPS-2 POST Price: $2,264.78 |
| 23 |
3-1365 |
CHAIN Price: $72.97 |
| 24 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 25 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 26 |
3212-4 |
SCREW-HH Price: $2.73 |
| 27 |
328-12 |
SCREW-HH Price: $9.77 |
| 28 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 29 |
3217-12 |
NUT-HEX Price: $3.12 |
| 30 |
93-7040-01 |
SUPPORT-REINFORCEMENT Price: $85.37 |
| 31 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 32 |
72-9390 |
BELT-SEAT Price: $140.77 |
| 33 |
93-7644 |
PIN-HITCH, COTTERLESS Price: $9.14 |
| 34 |
24-9510 |
PIN Price: $77.49 |
| 35 |
5-2942 |
SHACKLE Price: $16.99 |
| 36 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 37 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 38 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 41 |
2412-133 |
CLAMP-R Price: $3.19 |
| 42 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 43 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 44 |
93-7650-01 |
LEVER-LOCKING Price: $33.03 |
| 45 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 138311 |
DECAL |
HANDLE LIFT Price: Call Us 138311 |
| 157199 |
"PAD-FOOTREST,SQ" |
Price: Call Us 157199 |
| 158124 |
MANUAL.GENERIC.42 |
Price: Call Us 158124 |
| 164223 |
MANUAL |
PARTS Price: Call Us 164223 |
