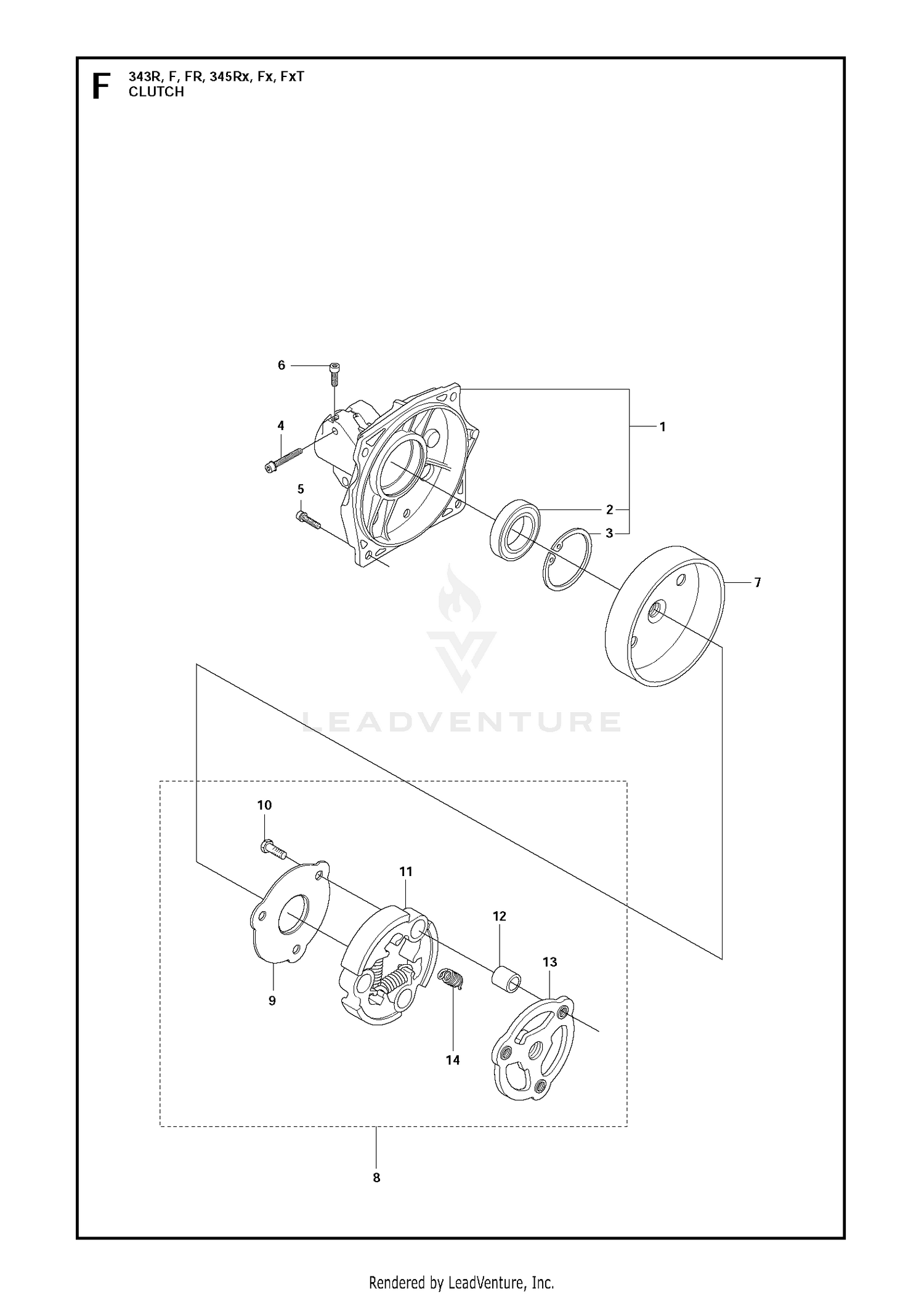

| Ref | Part Number | Description |
|---|
| 1 |
3211-12 |
SCREW-HH Price: $1.70 |
| 1 |
503954104 |
COVER, CLUTCH This part replaces 503954103. Price: $54.99 |
| 2 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 2 |
738220219 |
BALL BEARING 6202-2RS1 Price: $32.99 |
| 3 |
59-3490 |
COMP SPRING *O Price: $10.46 |
| 3 |
735313310 |
RETAINING RING SGH 35 Price: $2.99 |
| 4 |
503200230 |
SCREW Price: $3.99 |
| 4 |
59-2770 |
PIVOT ROD (PLTD) Price: $29.65 |
| 5 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 5 |
503200220 |
SCREW Price: $2.99 |
| 6 |
3219-3 |
NUT-HEX Price: $0.34 |
| 6 |
503202001 |
SCREW MC6LS 5X12 Price: $2.99 |
| 7 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 8 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 8 |
594512301 |
Clutches This part replaces 503953501. Price: $49.99 |
| 9 |
537135301 |
WASHER Price: $6.99 |
| 9 |
72-4660-03 |
RH TURF GUARD ASM This part replaces 72-4660. Price: $145.84 |
| 10 |
503201802 |
SCREW This part replaces 503201818. Price: $3.99 |
| 10 |
72-4680-03 |
CENTER TURF GUARD ASM This part replaces 72-4680. Price: $242.96 |
| 11 |
503953601 |
CLUTCH Price: $8.99 |
| 11 |
72-4640-03 |
LH TURF GUARD ASM This part replaces 72-4640. Price: $145.84 |
| 12 |
537135401 |
BUSHING Price: $6.99 |
| 13 |
503953701 |
HUB Price: $17.99 |
