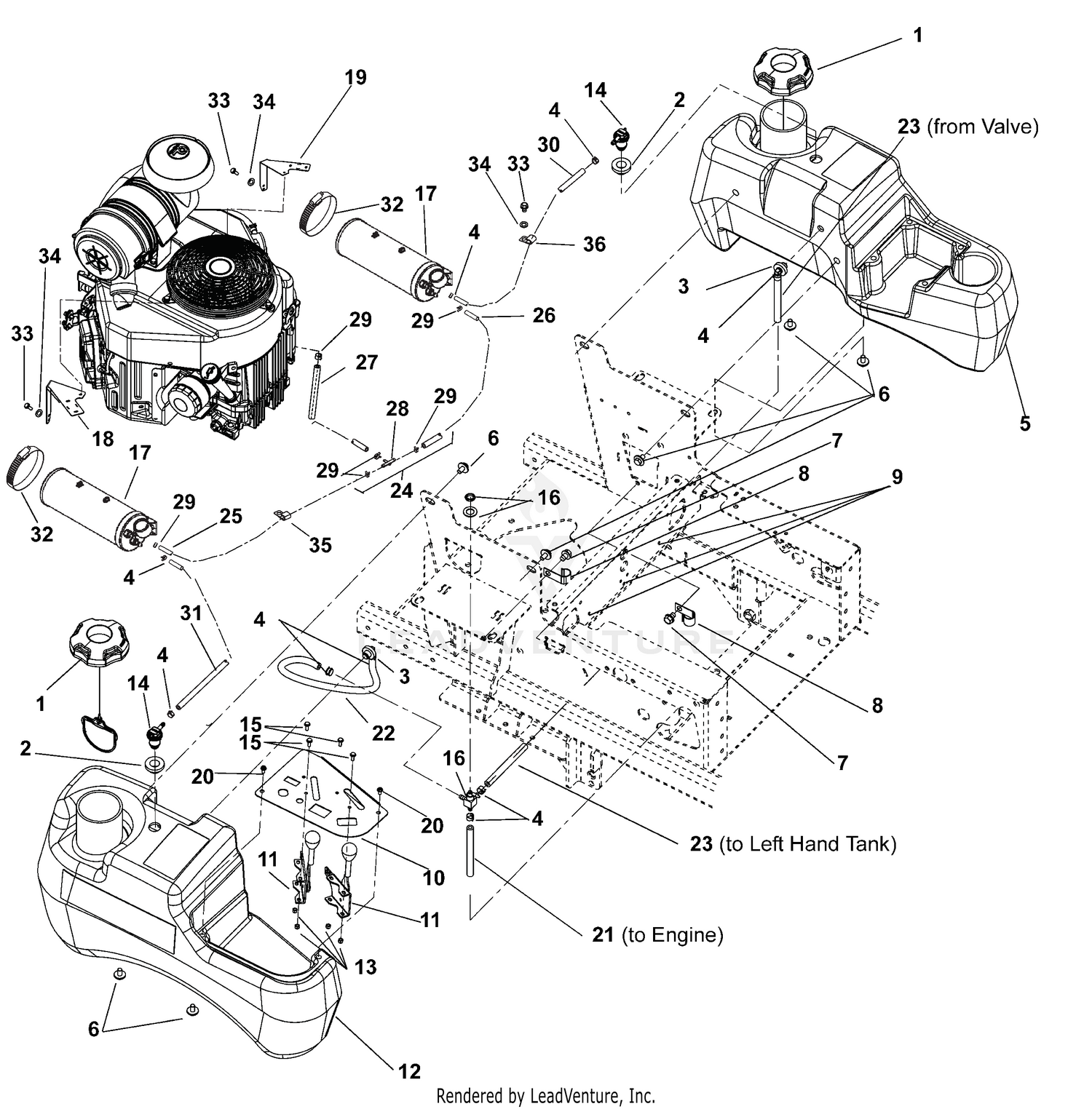

| Ref | Part Number | Description |
|---|
| 1 |
04558100 |
CAP, FUEL NONVENT AUTOLOCK Price: $20.45 |
| 2 |
04082700 |
GROMMET, REMOTE VENT NITRILE Price: $3.45 |
| 3 |
04320900 |
ASM, FUEL PICK-UP SML/MED TANK This part replaces 03900300. Price: $35.95 |
| 4 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 5 |
04340700 |
TANK-LH MEDIUM GRAVELY FUEL Price: $214.45 |
| 6 |
07000018 |
BOLT, SEMS .31-18 X .62 Price: $3.45 |
| 7 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 8 |
06916000 |
J-CLAMP Price: $2.45 |
| 9 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 10 |
04039151 |
PT100 CONTROL PANEL - BLACK Price: $27.45 |
| 11 |
06900417 |
CABLE, PT100 THROTTLE CONTROL Price: $65.45 |
| 12 |
04340600 |
TANK-RH MEDIUM GRAVELY FUEL Price: $214.45 |
| 13 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 14 |
05185600 |
VALVE, COMBINATION VENT 3/16 This part replaces 04068910. Price: $16.45 |
| 15 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 16 |
09258200 |
VALVE, FUEL Price: $42.95 |
| 17 |
04548100 |
CANISTER, 400 CC CARB Price: $70.95 |
| 18 |
04548351 |
BKRT, PT100 RH CARB CAN MTG Price: $14.25 |
| 19 |
04548451 |
BRKT, PT100 LH CARB CAN MTG Price: $14.25 |
| 20 |
06100211 |
SCR-MCH 10-24X.38 HWHSTAINLESS Price: $2.95 |
| 25 |
03375900 |
HOSE, .188 LOW-PERM BULK GAS Price: $0.95 |
| 26 |
03375900 |
HOSE, .188 LOW-PERM BULK GAS Price: $0.95 |
| 27 |
03375900 |
HOSE, .188 LOW-PERM BULK GAS Price: $0.95 |
| 29 |
04097700 |
CLAMP-HOSE- SPRING .188 Price: $1.45 |
| 33 |
05901628 |
BLT, HEX M8-1.25X20 G8.8 ZCC This part replaces 05973300. Price: $1.45 |
| 34 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 35 |
06908200 |
CLAMP, CUSHIONED STEEL Price: $5.45 |
