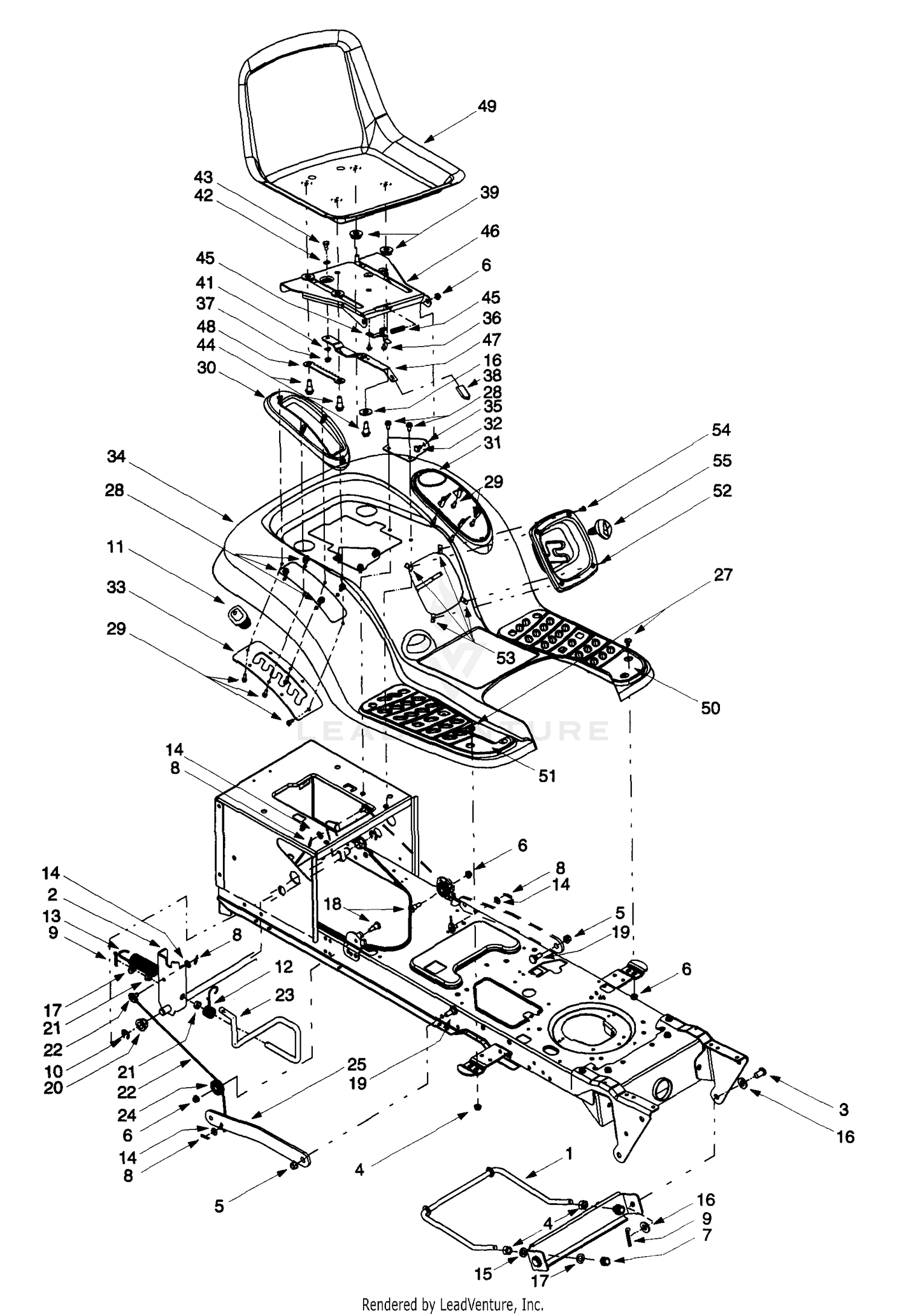

| Ref | Part Number | Description |
|---|
| 1 |
647-0040 |
Deck Stabilizer Rod Price: Call Us |
| 2 |
983-0197 |
LIFT SHAFT ASSEMBLY Not Available This part replaces 683-0197. Price: |
| 3 |
911-0332 |
Clevis Pin, .50" Dia. This part replaces 711-0332. Price: $14.98 |
| 4 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 5 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 6 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 7 |
712-3083 |
Hex Nut, 1/2-13 Price: $4.05 |
| 8 |
714-0104 |
Internal Cotter Pin Price: $3.90 |
| 9 |
714-0111 |
Cotter Pin Price: $4.20 |
| 10 |
716-0106 |
E-ring Price: $3.52 |
| 11 |
720-0311 |
Handle Grip Price: $13.26 |
| 12 |
732-0874 |
Torsion Spring Price: $4.02 |
| 13 |
732-0934 |
Lift-assist Spring, 1.15 x 5.99 Price: $10.43 |
| 14 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 15 |
736-0921 |
Lock Washer, 1/2 Price: $3.90 |
| 16 |
736-3019 |
Flat Washer, .31 x 1.062 x .134 Price: $5.45 |
| 17 |
736-3084 |
Flat Washer, .51 x 1.12 x .06 Price: $4.39 |
| 18 |
738-0138A |
SHOULDER SCREW 5/16-18 x .62 GR2 This part replaces 738-0138. Price: $5.81 |
| 19 |
738-0380 |
Shoulder Screw, .5 x .27, 3/8-16 Price: $7.34 |
| 20 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 21 |
941-0715 |
SNAP RING FLANGE BEARING Not Available This part replaces 741-0715. Price: |
| 22 |
746-0968 |
Lift Cable, 16.16 Price: $18.10 |
| 23 |
747-1111A |
LIFT HANDLE Not Available This part replaces 747-1111. Price: |
| 24 |
756-1154 |
Roller Pulley Price: $6.63 |
| 25 |
783-0678C |
Deck Lift Link This part replaces 783-0678. Price: $21.13 |
| 27 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 This part replaces 710-0260. Price: $3.71 |
| 28 |
710-0604A |
Self-tapping Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 29 |
710-0895 |
Self Tapping Screw, 1/4-15 x .75 Price: $5.82 |
| 30 |
731-06795 |
Cover, Lift Lever This part replaces 731-1990. Price: $21.39 |
| 31 |
731-1993A |
COVER-W/CUP HOLDER Not Available This part replaces 731-1993. Price: |
| 32 |
938-0155 |
Screw, Shoulder.437 Dia x.162 This part replaces 738-0155. Price: $6.01 |
| 33 |
783-0677B-0637 |
LIFT ADJUSTMENT BRACKET Not Available This part replaces 783-0677. Price: |
| 34 |
783-0763 |
FENDER Not Available Price: |
| 35 |
783-1489D |
BRACKET This part replaces 783-0715. Price: $16.74 |
| 36 |
710-1268 |
Screw, #10-16 x .375 Price: $3.90 |
| 37 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 38 |
720-0309A |
Seat Adjuster Grip Price: $8.22 |
| 39 |
731-1989 |
SEAT ADJUST SPACER Not Available Price: |
| 41 |
936-0175 |
Spring Washer, .265 x .562 x .025 This part replaces 736-0175. Price: $3.48 |
| 42 |
736-0204 |
Flat Washer, .344 x .62 x .03 Price: $3.89 |
| 43 |
738-0137A |
Shoulder Screw, .340 x .285,1/4-20 Price: $9.83 |
| 44 |
738-1007 |
SHOULDER SCREW .50 x .39 3/8 Not Available Price: |
| 45 |
783-0611 |
Seat Stop Price: $9.14 |
| 46 |
783-0738D |
SEAT PIVOT BRACKET Not Available This part replaces 783-0738. Price: |
| 47 |
783-0739 |
Seat Adjustment Lever Price: $21.10 |
| 48 |
783-0753 |
Seat Adjustment Selector Price: $13.84 |
| 49 |
957-0350 |
Seat - 14-1/4" High Not Available This part replaces 757-0350. Price: |
| 50 |
735-0657 |
FOOT PAD (LH) Not Available Price: |
| 51 |
735-0656 |
FOOT PAD (RH) Not Available Price: |
| 52 |
731-2107 |
COVER:SHIFT:TWO SP Not Available Price: |
| 53 |
712-0292 |
Speed Nut, 1/4-20 Price: $8.97 |
| 54 |
710-0924 |
Phillips Screw, 1/4-20 x .75 Price: $4.02 |
