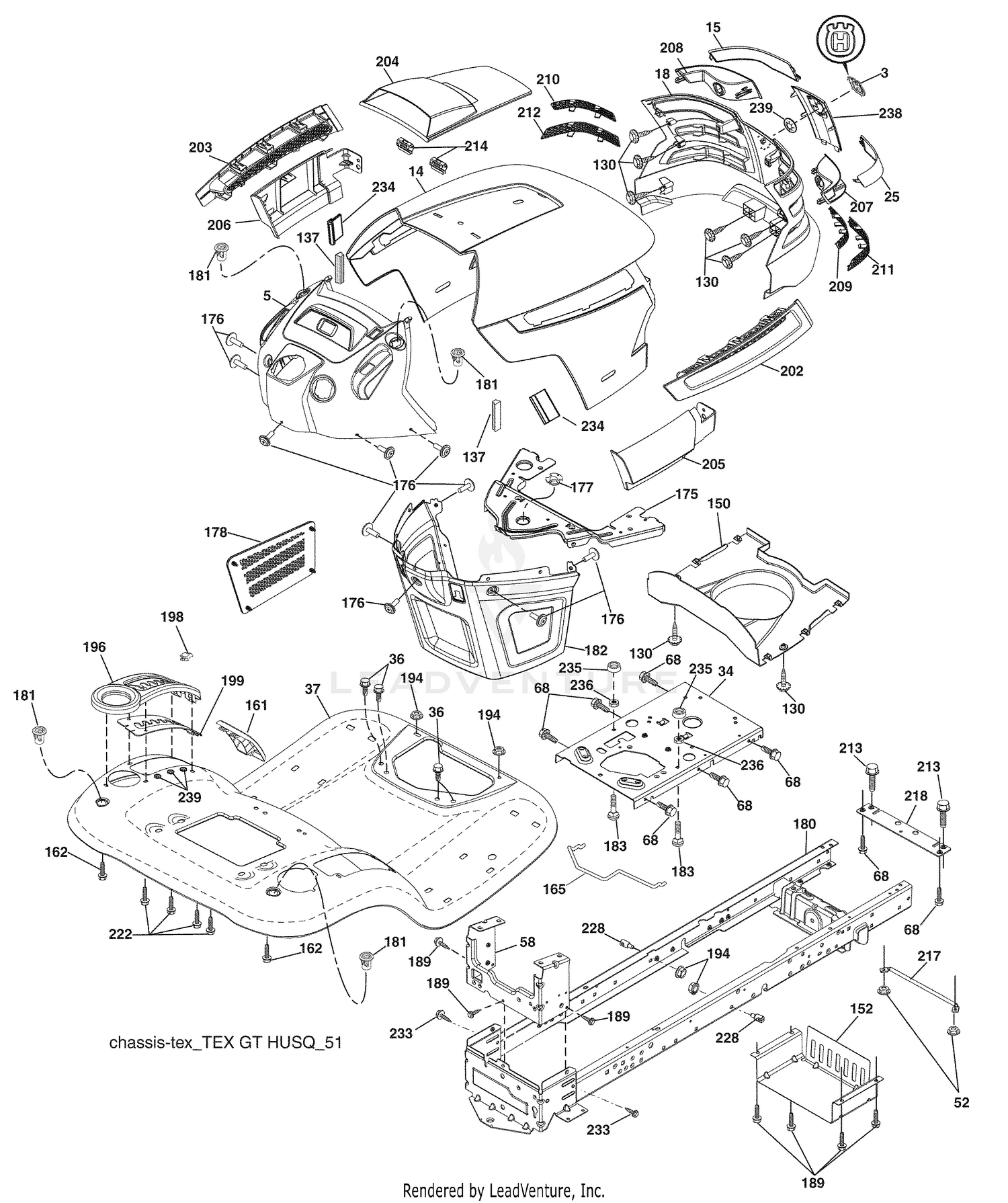

| Ref | Part Number | Description |
|---|
| 1 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 2 |
55-4630 |
Suspension Assembly (Incl. Ref. #9 27) Price: Call Us |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 532405012. Price: $5.99 |
| 4 |
62-6980 |
SHIM-CARRIER Price: $10.00 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
532408700 |
DASH.ASM.HUSQ.GT Price: $59.99 |
| 6 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 7 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 8 |
74-0350 |
CUSHION-RUBBER Price: $5.01 |
| 9 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 10 |
325-19 |
SCREW-HH Price: $2.57 |
| 11 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 12 |
62-5580 |
BEARING-OUTSIDE This part replaces 62-5530. Price: $6.58 |
| 13 |
68-8980 |
SPANNER-TIRE Price: $8.72 |
| 14 |
3217-6 |
NUT-HEX Price: $1.19 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532411046. Price: $149.99 |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
68-8930 |
MALE WHEEL HALF Price: $14.99 |
| 17 |
62-5570 |
BEARING-ROLLER Price: $18.63 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM Price: $129.99 |
| 18 |
68-8950 |
TUBE-INNER (W/VALVE) Price: $26.99 |
| 19 |
68-8960 |
TIRE Price: $63.99 |
| 20 |
68-8920 |
FEMALE WHEEL HALF Price: $14.99 |
| 21 |
68-8940 |
HUB-CENTER Price: $29.99 |
| 22 |
54-8890 |
WHEEL BOLT Price: $0.47 |
| 23 |
302-61 |
FITTING-GREASE Price: $10.99 |
| 24 |
32153-5 |
NUT-HEX Price: $1.59 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 25 |
68-8900-01 |
FRONT CASTOR FORK ASM This part replaces 68-8900. Price: $108.04 |
| 26 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 27 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 28 |
74-0490 |
DECAL-FUEL SHUT OFF Price: $5.26 |
| 29 |
68-8360 |
DECAL-HOC, LH Price: $21.99 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532425879 |
FENDER Price: $149.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 58 |
532412281 |
DRAWBAR.UPPER.2PC,LRG.FENDER Price: $37.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 150 |
532198512 |
AIR.DUCT.HOOD.TEX.GT.HUSQ Price: $29.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 161 |
532425883 |
CONSOLE FUEL WINDOW Price: $4.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
532415063 |
CHASS.WLDMNT.TL.12GA/2P.48/54 Price: $169.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 196 |
532425884 |
CONSOLE ASM DECK LIFT Price: $22.99 |
| 198 |
532425886 |
Indicator Deck Lift Price: Call Us |
| 199 |
532196377 |
PLATE DECK LIFT Price: $12.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532416613. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 222 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 233 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532408606 |
TRIM.HUSQ.TG/CRD.SERVICE Price: $17.99 |
