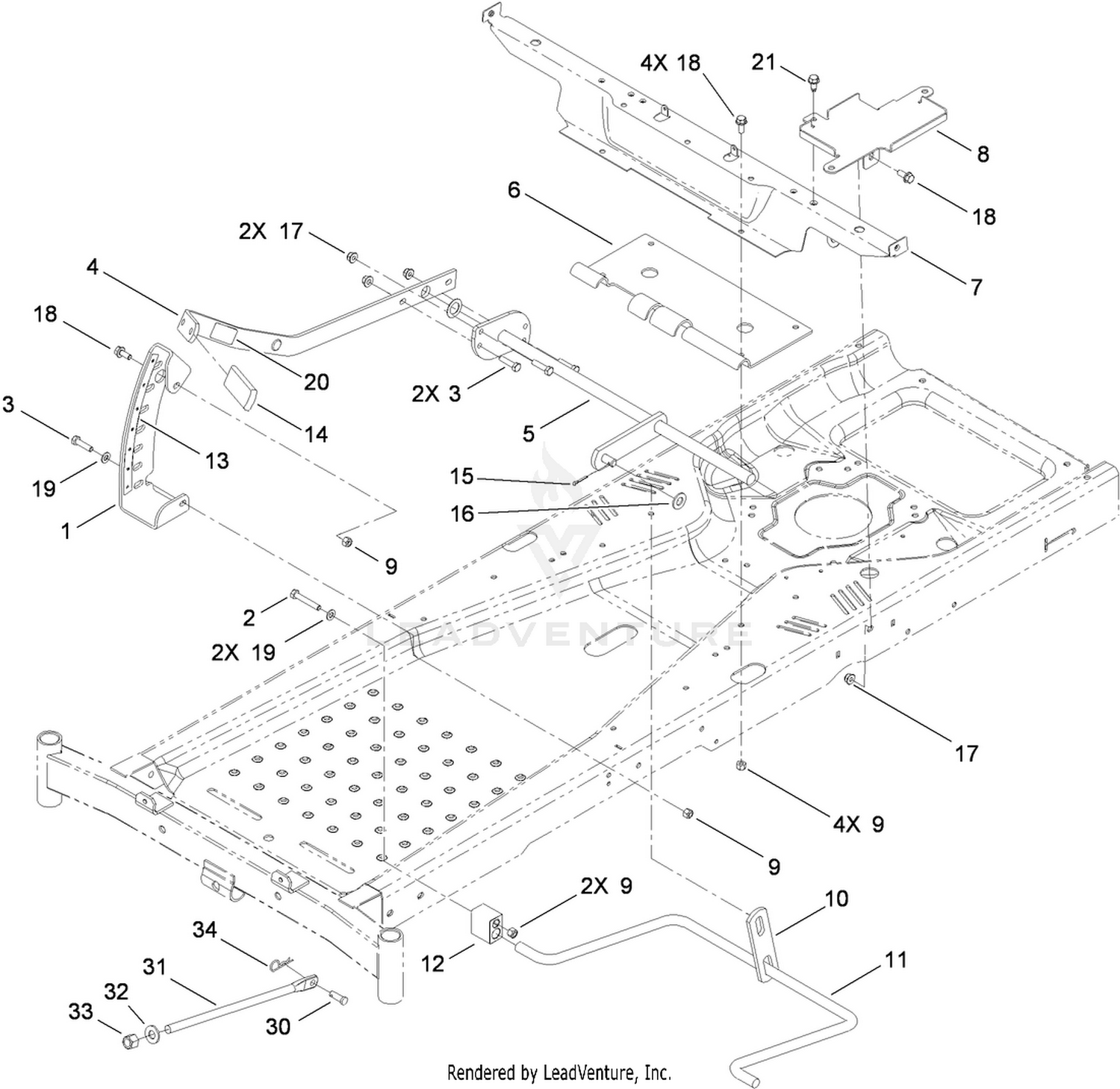

Deck Lift Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 112-4027-03 | SECTOR-HOC Price: $19.82 |
| 2 | 322-10 | SCREW-HH Price: $0.70 |
| 3 | 322-6 | SCREW-HH Price: $0.45 |
| 4 | 112-3960-03 | LIFT ARM ASM Price: $31.76 |
| 5 | 108-7841-03 | LIFT LEVER ASM Price: $46.58 |
| 6 | 110-6800-03 | PLATE-LIFT Price: $16.68 |
| 7 | 110-6805-03 | BRACKET-SEAT/PODS Price: $59.68 |
| 8 | 110-1937-03 | TRAY-BATTERY Price: $18.65 |
| 9 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 10 | 138-7235 | LINK-LIFT This part replaces 108-7840. Price: $4.88 |
| 11 | 138-7234 | ARM-LIFT, REAR This part replaces 108-7839. Price: $22.72 |
| 12 | 108-7845 | BLOCK-PIVOT Price: $11.42 |
| 13 | 112-9802 | DECAL-HOC Price: $3.06 |
| 14 | 105-3450 | GRIP-LEVER, LIFT Price: $6.25 |
| 15 | 3272-10 | PIN-COTTER Price: $0.25 |
| 16 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 17 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 18 | 3234-47 | SCREW-HHF Price: $1.79 |
| 19 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 20 | 106-8743 | DECAL-HOC Price: $1.45 |
| 21 | 32104-32 | SCREW-HWH Price: $1.99 |
| 30 | 1-808284 | PIN-CLEVIS Price: $2.28 |
| 31 | 108-7847 | ROD-LIFT Price: $13.09 |
| 32 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 33 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
