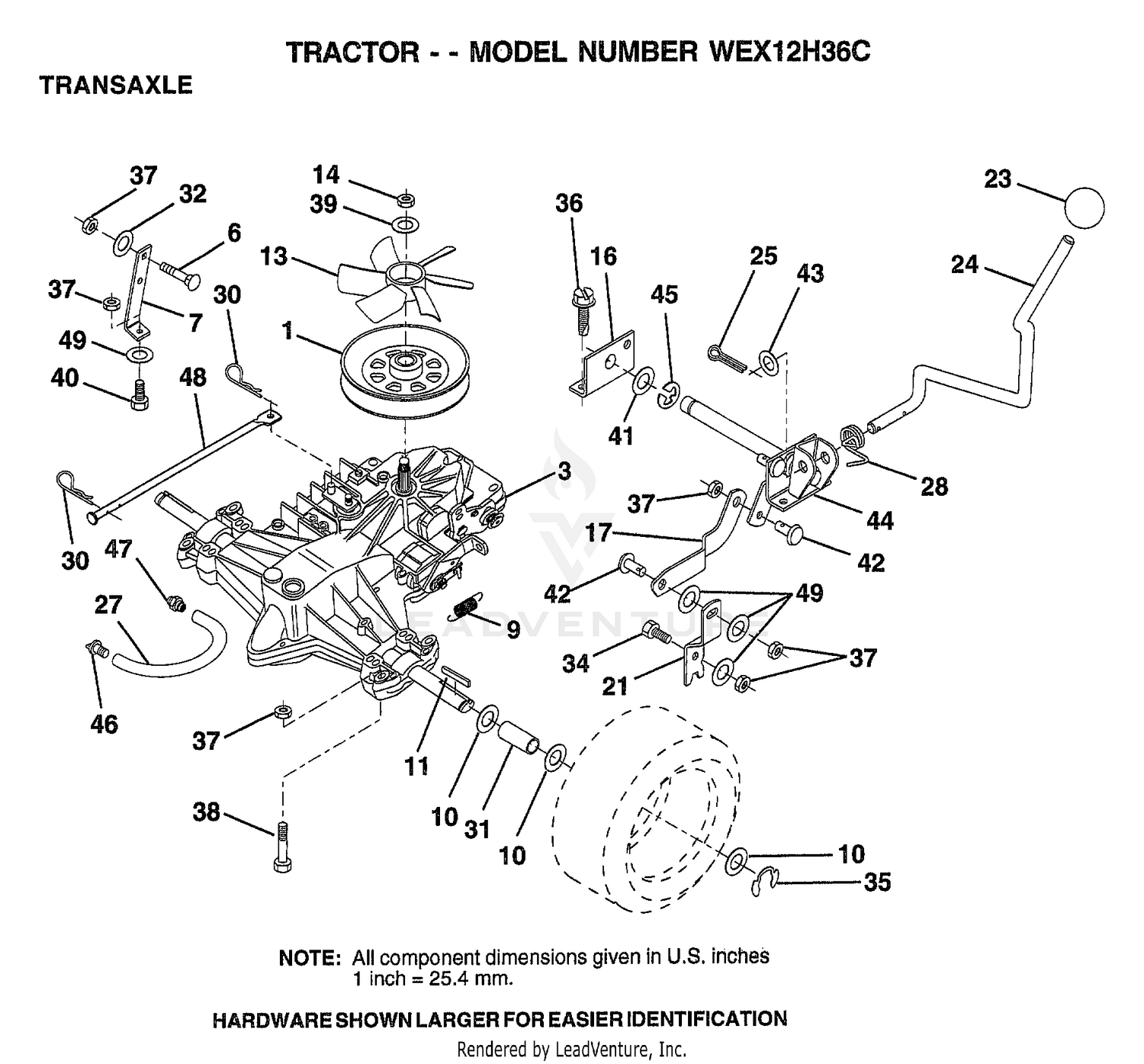

| Ref | Part Number | Description |
|---|
| 1 |
140779 |
PULLEY.V-GROOVE Price: Call Us |
| 3 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 6 |
72140506 |
BOLT Price: Call Us |
| 7 |
140774 |
STRAP.TORQUE.HYD Price: Call Us |
| 9 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 10 |
121749X |
WASHER Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 11 |
123583X |
SQUARE KEY Price: Call Us |
| 13 |
140778 |
FAN.HYDRO.6FANS Price: Call Us |
| 16 |
140763 |
SUPPORT.HDLE.SHFT Price: Call Us |
| 17 |
140767 |
LINK.SHIFT.HYD.LR Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
140773 |
LEVER.SHIFT.TRANS Price: Call Us |
| 23 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 24 |
140765 |
ROD.SHIFTER.HYD. Price: Call Us |
| 25 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 28 |
140772 |
SPRING.TORSION.LR Price: Call Us |
| 30 |
4497H |
RETAINER M Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
121199X |
SPACER SPLIT Price: Call Us |
| 32 |
19111116 |
WASHER Price: Call Us |
| 34 |
74760516 |
SUB= 77394 Price: Call Us |
| 35 |
12000001 |
E-RING LT Price: Call Us |
| 36 |
17720408 |
SCREW Price: Call Us |
| 37 |
73800500 |
NUT Price: Call Us |
| 38 |
74490540 |
BOLT.HEX.FLGHD Price: Call Us |
| 39 |
19171912 |
WASHER Price: Call Us |
| 40 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
19212013 |
WASHER Price: Call Us |
| 42 |
140769 |
PIN.PIVOT.SHIFT. Price: Call Us |
| 43 |
19171216 |
WASHER Price: Call Us |
| 44 |
156047 |
SHAFT.PIVOT.LR. Price: Call Us |
| 45 |
12000002 |
SUB= 2225J Price: Call Us |
| 46 |
PARTS |
IMAGE REFER TO PARTS IMAGE Price: Call Us PARTS IMAGE |
| 47 |
PARTS |
IMAGE REFER TO PARTS IMAGE Price: Call Us PARTS IMAGE |
| 48 |
140912 |
ACTUATOR.BYPASS Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
