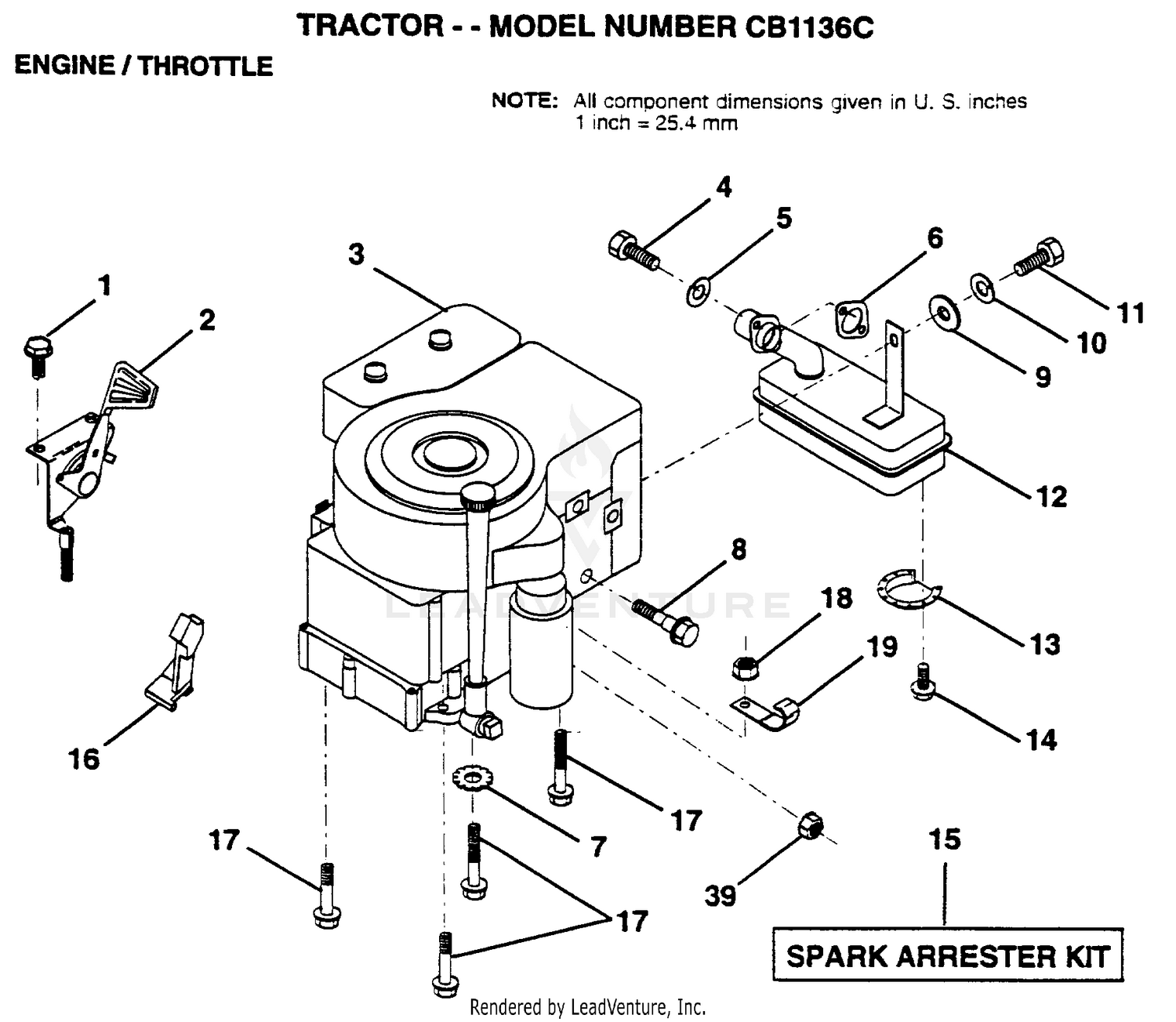

| Ref | Part Number | Description |
|---|
| 1 |
17060408 |
SCREW.1/4-20X1/2 Price: Call Us |
| 1 |
3220-7 |
NUT-JAM Price: $4.09 |
| 2 |
133025 |
SUB= 532133025 Price: Call Us |
| 2 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 3 |
28C707 |
ENGINE, B&S, 11HP Price: Call Us |
| 4 |
71070512 |
SCREW Price: Call Us |
| 4 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 5 |
10040500 |
LOCKWASHER Price: Call Us |
| 5 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 6 |
125593X |
SUB= 272293 Price: Call Us |
| 7 |
11050600 |
LOCKWASHER Price: Call Us |
| 8 |
121094X |
BOLT T Price: Call Us |
| 9 |
19101216 |
WASHER Price: Call Us |
| 10 |
10040400 |
LOCKWASHER Price: Call Us |
| 10 |
328-25 |
SCREW-HH Price: $4.07 |
| 11 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 11 |
74760416 |
BOLT Price: Call Us |
| 12 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 12 |
137437 |
MUFFLER Price: Call Us |
| 13 |
101326L |
DEFLECTOR.222573 Price: Call Us |
| 14 |
17030808 |
SUB= 17030814 Price: Call Us |
| 15 |
137180 |
SUB= 532137180 Price: Call Us |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 17 |
63-6770-03 |
PIN-MASKED Price: $145.71 |
| 18 |
321-4 |
SCREW-HH Price: $0.99 |
| 18 |
73510600 |
NUT Price: Call Us |
| 19 |
2751R |
CLIP T Price: Call Us |
| 19 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 20 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 25 |
67-7250 |
SPACER-RING Price: $3.32 |
| 27 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 34 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 36 |
32128-45 |
NUT-HHF Price: $7.67 |
| 37 |
67-9410 |
WASHER Price: $2.04 |
| 40 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 41 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 42 |
115-4525 |
CYLINDER ASM This part replaces 76-2070. Price: $1,342.36 |
| 43 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 44 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 45 |
67-7300 |
SCREW-HH Price: $81.39 |
| 50 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 51 |
63-6430-03 |
FRAME-REAR Price: $757.78 |
| 52 |
92-8762-03 |
DISCONTINUED Price: Call Us |
| 53 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 55 |
24-5790-01 |
WEIGHT-REAR Price: $334.70 |
| 56 |
325-9 |
SCREW-HH Price: $1.87 |
| 58 |
70-8040 |
WASHER Price: $5.46 |
