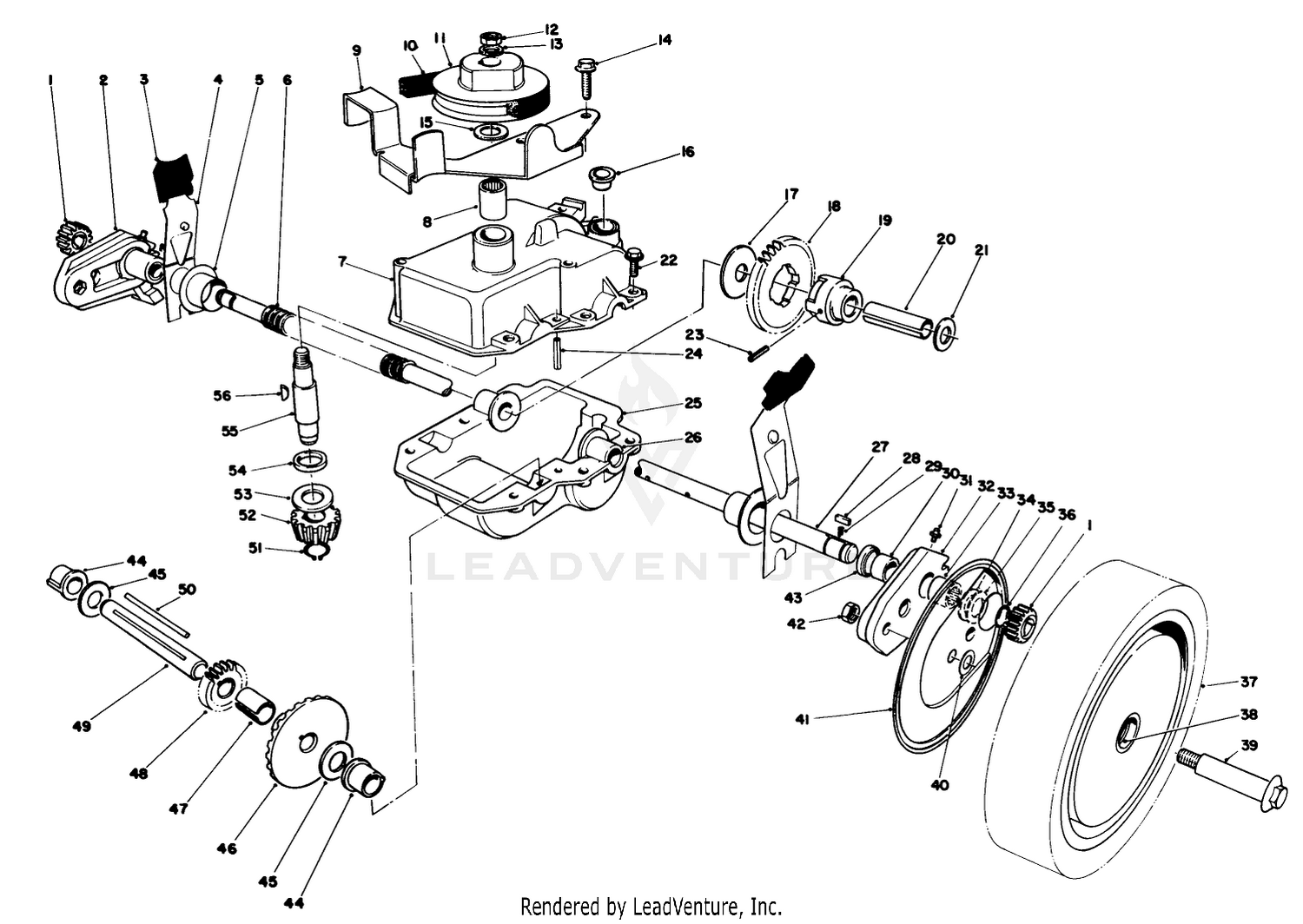

| Ref | Part Number | Description |
|---|
| 1 |
39-9160 |
GEAR-PINION Price: $9.84 |
| 2 |
49-7720 |
PIVOT ARM ASM RH Price: $74.74 |
| 3 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 4 |
44-1010 |
SPRING ARM ASM SP Price: $25.85 |
| 5 |
138-3235 |
CAP-END This part replaces 42-3520. Price: $2.29 |
| 6 |
24-7922 |
CONDUIT-CONVOLUTED, SPLIT Price: $9.99 |
| 7 |
11-8709 |
DISCONTINUED This part replaces 39-7283. Price: Call Us |
| 8 |
47-6720 |
BEARING Price: $22.96 |
| 9 |
49-8460 |
DISCONTINUED Price: Call Us |
| 10 |
36-8070 |
V-BELT Price: $16.41 |
| 11 |
39-6740 |
PULLEY Price: $37.08 |
| 12 |
3296-5 |
NUT-HEX Price: $3.09 |
| 13 |
325645 |
Washer Price: Call Us |
| 14 |
12-3270 |
SCREW Price: $3.09 |
| 15 |
36-4790 |
WASHER-THRUST Price: $2.49 |
| 16 |
12-0510 |
Caplug Price: Call Us |
| 17 |
29-9690 |
WASHER Price: $8.10 |
| 18 |
29-9271 |
GEAR-42T Price: $58.12 |
| 19 |
49-4280 |
DISCONTINUED Price: Call Us |
| 20 |
36-9120 |
Spacer-Output Shaft Price: Call Us |
| 21 |
364780 |
Washer Price: Call Us |
| 22 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 23 |
32121-109 |
DISCONTINUED Price: Call Us |
| 24 |
32121-100 |
ROLL PIN 3/16 X 1 IN Price: $1.13 |
| 25 |
29-9410 |
DISCONTINUED Price: Call Us |
| 26 |
47-5220 |
DISCONTINUE Price: Call Us |
| 27 |
12-4779 |
OUTPUT SHAFT ASM This part replaces 53-7870. Price: $119.65 |
| 28 |
39-9680 |
KEY RECTANGULAR Price: $3.28 |
| 29 |
39-9650 |
SPRING-COMPRESSION Price: $2.01 |
| 30 |
47-2890 |
BUSHING Price: $3.19 |
| 31 |
302-56 |
FITTING-GREASE Price: $3.69 |
| 32 |
49-7710 |
DISCONTINUED Price: Call Us |
| 33 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 48-2060. Price: $4.69 |
| 34 |
49-7690 |
DISCONTINUED Price: Call Us |
| 35 |
49-7700 |
WASHER-THRUST, OUTER Price: $1.49 |
| 36 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 37 |
14-9959 |
WHL & TIRE ASSEMBLY This part replaces 11-9519. Price: $28.44 |
| 38 |
27-6250 |
BUSHING Price: $2.17 |
| 39 |
27-6231 |
WHEEL BOLT Price: $3.28 |
| 40 |
40-1940 |
WASHER Price: $1.59 |
| 41 |
52-4860 |
WHEEL COVER * Price: $21.62 |
| 42 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 43 |
47-6730 |
SEAL-OIL Price: $7.88 |
| 44 |
52-5410 |
BUSHING Price: $6.01 |
| 45 |
36-4791 |
WASHER-THRUST Price: $0.77 |
| 46 |
39-6670 |
BEVEL GEAR Price: Call Us |
| 47 |
36-9130 |
Spacer-Short Shaft Price: Call Us |
| 48 |
46-3550 |
GEAR-14T Price: $14.52 |
| 49 |
46-9470 |
DISCONTINUED Price: Call Us |
| 50 |
39-7843 |
DISCONTINUED This part replaces 39-7841. Price: Call Us |
| 51 |
32151-57 |
RING-RETAINING Price: $2.37 |
| 52 |
39-6660 |
PINION-BEVEL Price: $25.89 |
| 53 |
47-2910 |
WASHER-THRUST Price: $12.99 |
| 54 |
47-7260 |
SEAL Price: $5.36 |
| 55 |
39-6690 |
DISCONTINUED Price: Call Us |
| 56 |
3257-1 |
KEY-WOODRUFF Price: $1.79 |
