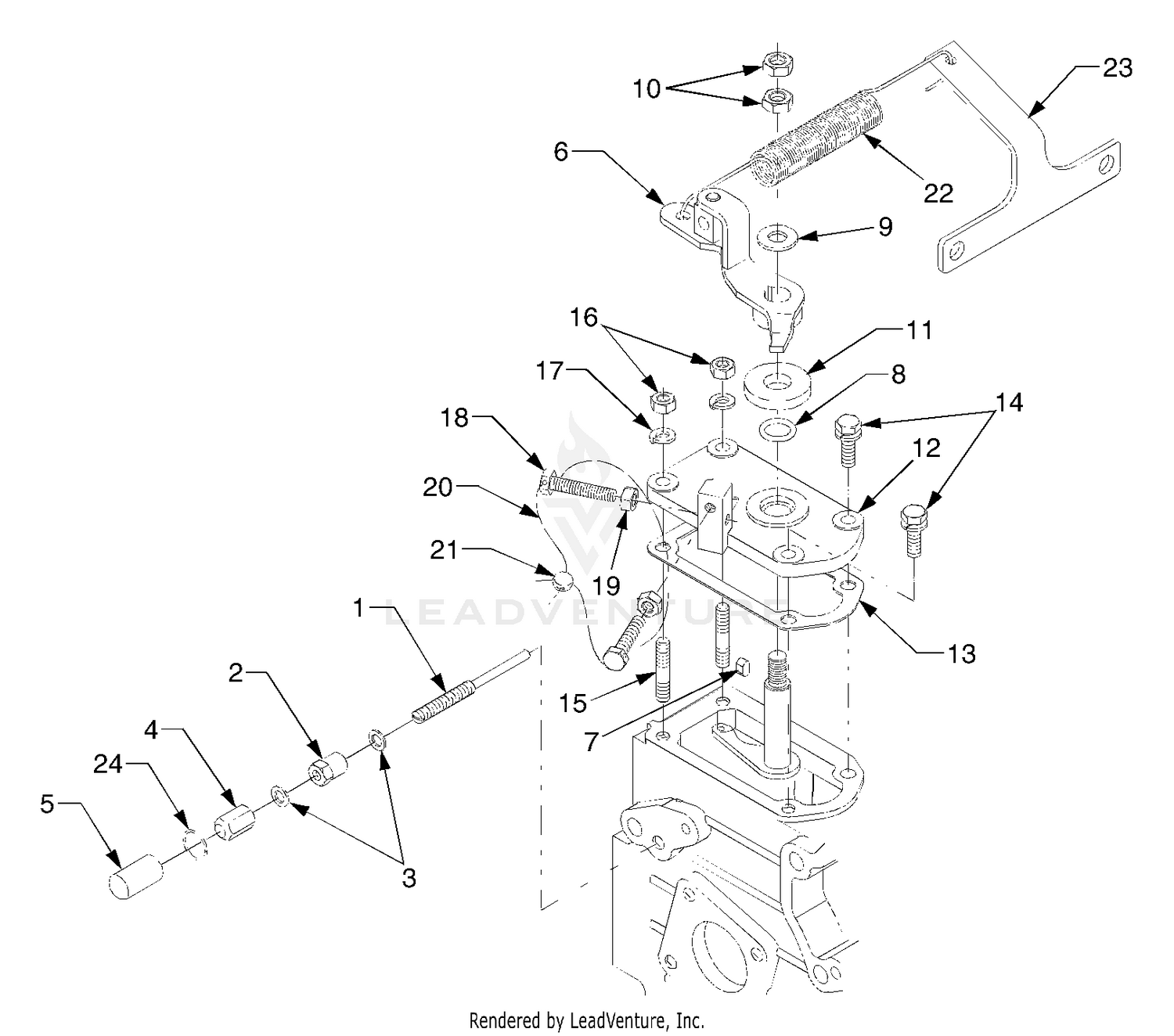

Speed Control Plate
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 532401043 | SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 1 | 93-3444 | CAP-FILLER Price: $45.82 |
| 1 | DD-15601-54121 | ADJUSTING BOLT Not Available Price: |
| 2 | 531152401 | SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 | 93-3445 | DISCONTINUED Price: Call Us |
| 2 | DD-E6305-92021 | NUT-SPD CONTROL AD Not Available Price: |
| 3 | 67-2340 | BOLT W/WASHER Price: $2.19 |
| 3 | 871110616 | BOLT, HEX 3/8-16X1 Price: $3.99 |
| 3 | DD-E6305-96652 | GASKET Not Available Price: |
| 4 | 819131610 | WASHER PM Price: $4.99 |
| 4 | 93-3446 | PLATE-FRONT Price: $126.32 |
| 4 | DD-E6305-54221 | CAP NUT Not Available Price: |
| 5 | 532145006 | PUSH CLIP Price: $2.99 |
| 5 | 93-3447 | GASKET-PLATE FRONT Price: $31.81 |
| 5 | DD-E6305-54421 | CAP Not Available Price: |
| 6 | 596322601 | Nuts This part replaces 873800600. Price: $2.99 |
| 6 | 93-3448 | CASE - GEAR Price: $495.20 |
| 6 | DD-E5611-57152 | LEVER-SPEED CONTRO Not Available Price: |
| 7 | 42-7390 | OIL SEAL Price: $31.54 |
| 7 | 587613301 | SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 | DD-05712-00408 | SPEED CONTROL KEY Not Available Price: |
| 8 | 817000616 | SCREW 3/8-16X1 Price: $5.99 |
| 8 | DD-04811-00120 | O-RING Not Available Price: |
| 9 | 596140201 | Washers This part replaces 819131614. Price: $2.99 |
| 9 | DD-04013-50080 | FLAT WASHER Not Available Price: |
| 10 | 532195530 | PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 | DD-02112-50080 | HEX NUT Not Available Price: |
| 11 | 532166369 | KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 | DD-17011-57383 | FRICTION PLATE Not Available Price: |
| 12 | 532174648 | BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 | DD-E5800-57111 | PLATE-SPEED CONTRO Not Available Price: |
| 13 | 532121248 | BUSHING Price: $4.99 |
| 13 | DD-E5800-57211 | GASKET-CONTROL PLA Not Available Price: |
| 14 | 872050412 | BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 14 | DD-01023-50620 | HEX BOLT Not Available Price: |
| 15 | 532121249 | SPACER SPLIT Price: $4.99 |
| 15 | DD-01518-50622 | SPEED CONTROL STUD Not Available Price: |
| 16 | 532123740 | SPRING COMPRESSED Price: $3.99 |
| 16 | DD-02056-50060 | HEX NUT Not Available Price: |
| 17 | 586668901 | NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 | DD-04512-50060 | LOCK WASHER Not Available Price: |
| 18 | DD-15108-57284 | BOLT Not Available Price: |
| 19 | DD-02056-50060 | HEX NUT Not Available Price: |
| 20 | DD-07811-11210 | WIRE Not Available Price: |
| 21 | 587907801 | BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 | DD-07918-00001 | LEAD-SEALING Not Available Price: |
| 22 | 596040501 | Hardware This part replaces 873800500. Price: $2.99 |
| 22 | DD-52200-41921 | SPRING-SPEED CONTR Not Available Price: |
| 23 | DD-E6305-41291 | BRACKET-SPRING Not Available Price: |
| 24 | 819171912 | WASHER Price: $3.99 |
