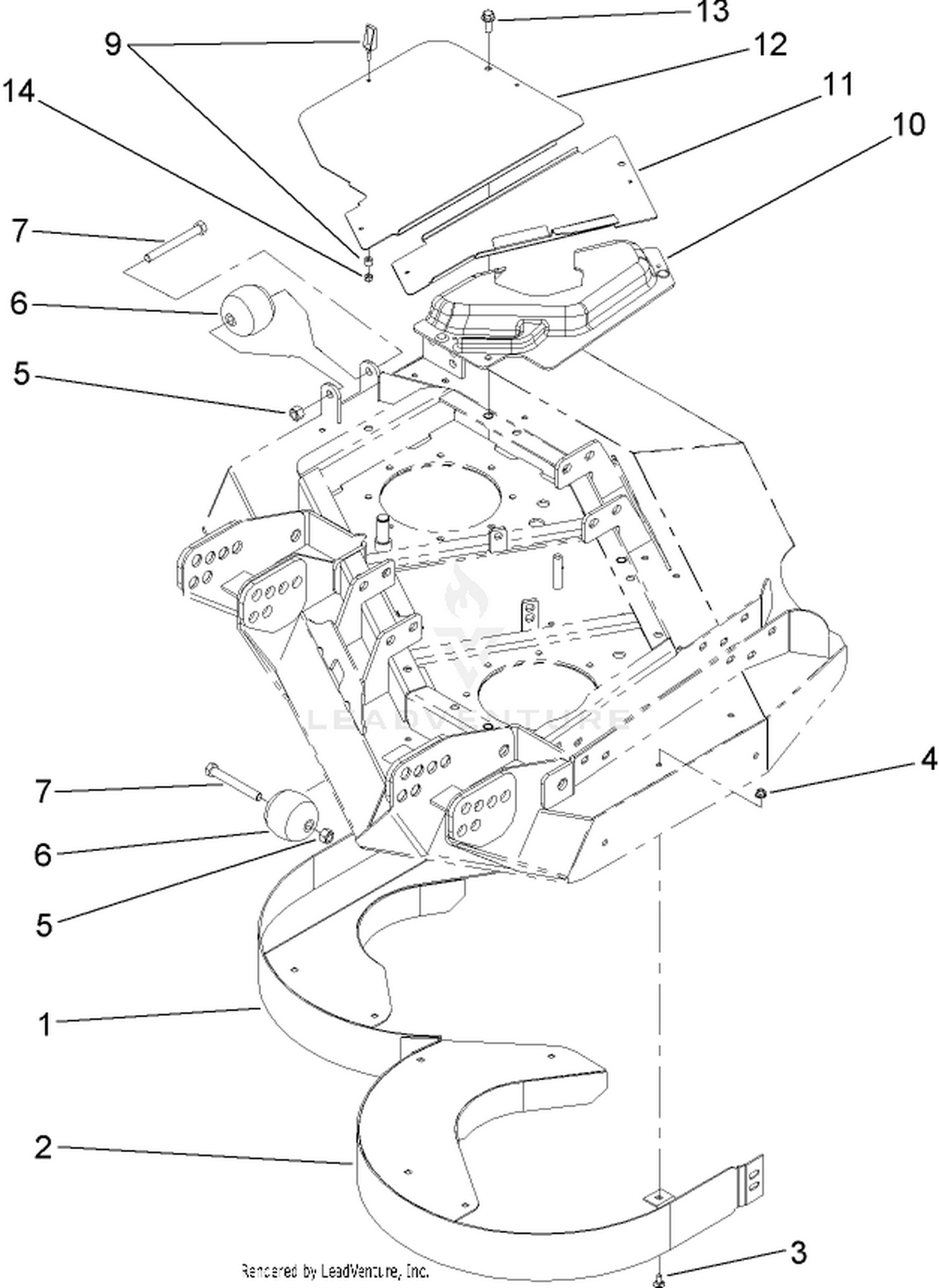

Left Hand Deck Rear Discharge Chamber and Cover Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-2205-01 | CHAMBER-INNER Price: $271.45 |
| 2 | 104-2206-01 | OUTER CHAMBER ASM Price: $349.27 |
| 3 | 3230-18 | SCREW-CARR Price: $4.09 |
| 4 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 5 | 3296-45 | NUT-HEX Price: $3.79 |
| 6 | 29-4820 | ROLLER Price: $14.88 |
| 7 | 325-17 | SCREW-HH Price: $2.90 |
| 9 | 74-5950 | LATCH-SWELL Price: $21.28 |
| 10 | 100-5669 | COVER-MOTOR, LH DECK Price: $139.21 |
| 11 | 100-5664-03 | PLATE-COVER, LH Price: $73.07 |
| 12 | 100-5667-03 | PLATE-COVER, LH SIDE Price: $77.06 |
| 13 | 3234-42 | SCREW-HHF Price: $1.10 |
