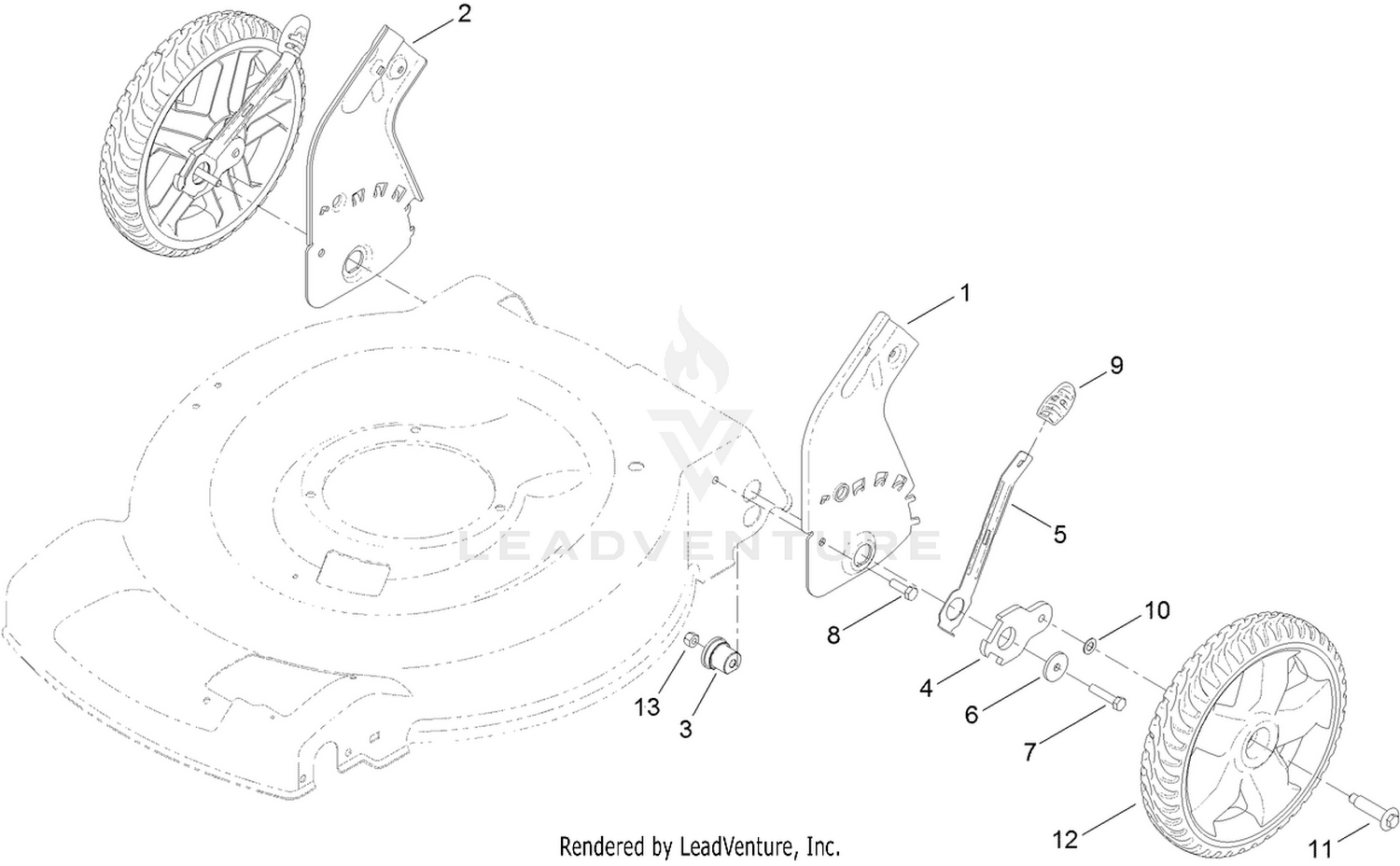

Height-of-Cut and Rear Wheel Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-7993-03 | PLATE-HOC, REAR (LH) Price: $25.99 |
| 2 | 114-7994-03 | PLATE-HOC, REAR (RH) Price: $25.99 |
| 3 | 115-4651 | BUSHING-MOUNT, HOC Price: $6.09 |
| 4 | 137-9129 | ARM-PIVOT, REAR This part replaces 114-7997. Price: $11.99 |
| 5 | 115-2899 | ARM-SPRING, REAR Price: $11.99 |
| 6 | 105-3048 | WASHER-FLAT Price: $0.89 |
| 7 | 322-7 | SCREW-HH Price: $0.89 |
| 8 | 322-5 | SCREW-HH Price: $0.34 |
| 9 | 105-3042 | KNOB-LEVER, HOC Price: $4.09 |
| 10 | 40-1940 | WASHER Price: $1.59 |
| 11 | 614650 | BOLT-SHOULDER Price: $3.99 |
