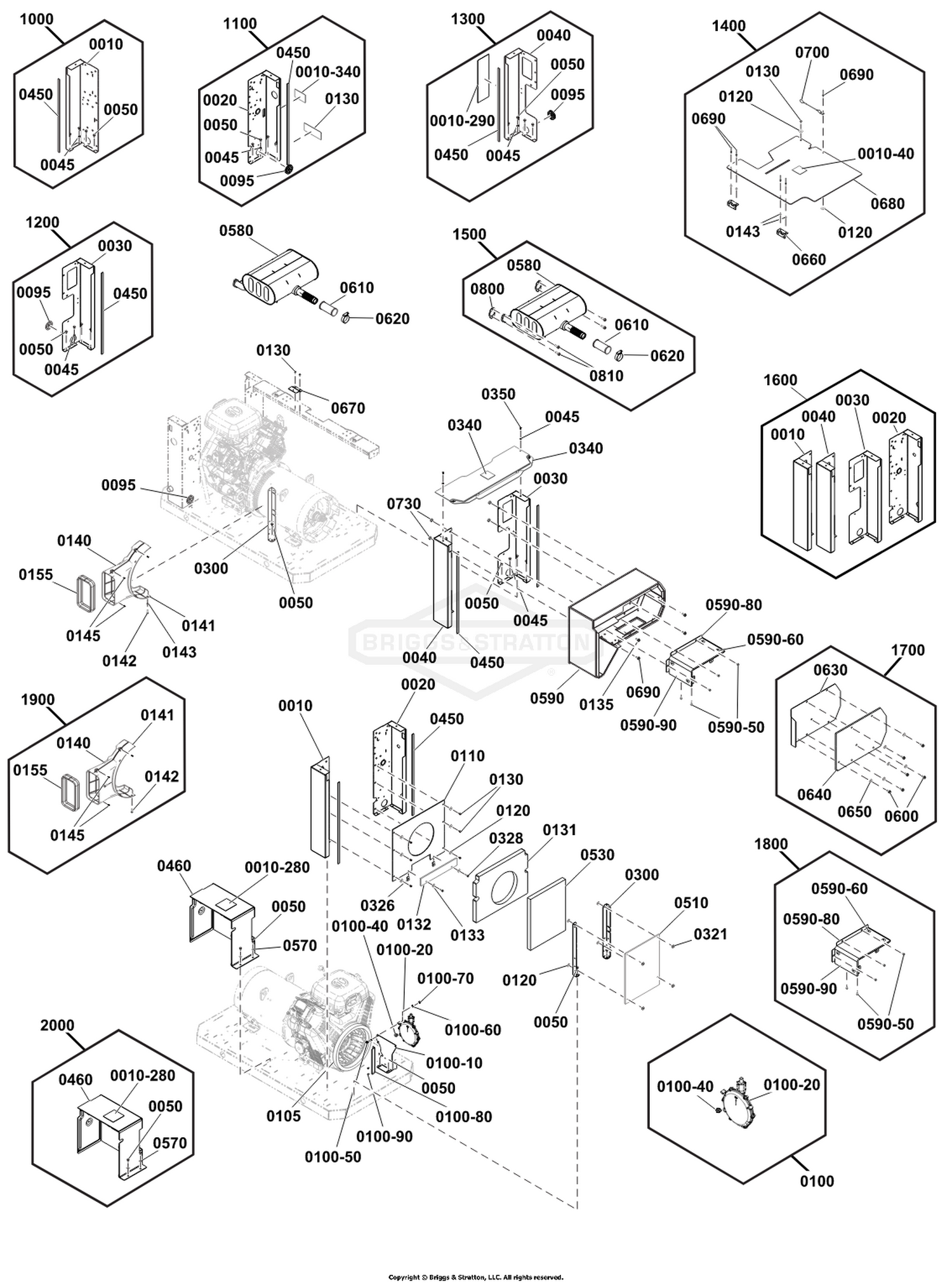

Fuel, Duct & Support Group

Fuel, Duct & Support Group

Parts (16)

RefPart NumberDescription
0045 26850GS WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60
0050 704130 SCREW, HEX, 1/4-20X.5 Price: $3.28
0110 84006038 PANEL, Intake Price: $43.71
0130 194561GS HHS, Trilobular, #10-32 x 3/8 Price: $2.79
0133 703332 WASHER This part replaces 22473GS. Price: $3.72
0142 52618GS SCREW, M5 x 0.8 x 12 Price: $2.64
0143 1910531SM WASHER, Rivet, 3/16 This part replaces 23897GS. Price: $3.47
0328 5025010X6SM BOLT, 1/4-20 X 3/4" G This part replaces 5025010X6. Price: $3.29
0340 84006316 PANEL Price: Call Us
0350 84006392 SCREW, #10-32 X 3/8 Price: $1.16
0600 200020GS SCREW, Trilobular, #10-32 x 1/2 Price: $3.81
0610 84007134 SLEEVE Price: $14.69
0620 84007135 CLAMP, Hose Price: $2.40
0730 22158GS NUT Price: $2.30
0800 809872 GASKET, Exhaust Price: $4.53
0810 846149 SCREW Price: $3.72
