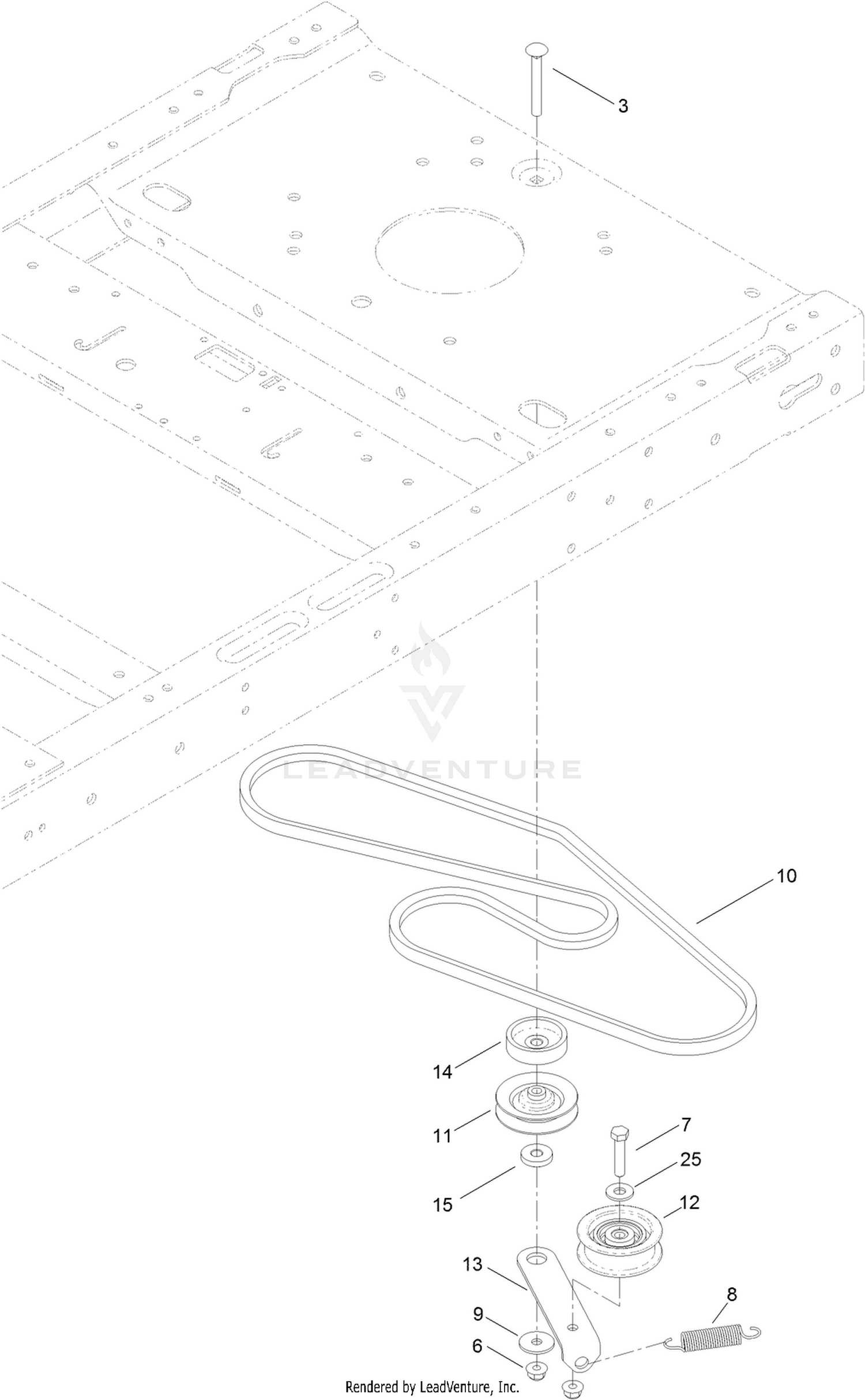

Belt and Idler Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 3230-8 | SCREW-CARR Price: $1.00 |
| 6 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 322-7 | SCREW-HH Price: $0.89 |
| 8 | 137-7040 | SPRING-RETURN, PEDAL This part replaces 104-6415. Price: $4.89 |
| 9 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 10 | 119-3309 | V-BELT Price: $24.06 |
| 11 | 119-8822 | PULLEY-IDLER Price: $17.50 |
| 12 | 106-2176 | PULLEY-IDLER Price: $22.03 |
| 13 | 138-7276 | ARM-IDLER This part replaces 119-3326. Price: $3.74 |
| 14 | 119-3353 | SPACER Price: $7.02 |
| 15 | 119-3327 | SPACER-ARM, IDLER Price: $1.27 |
