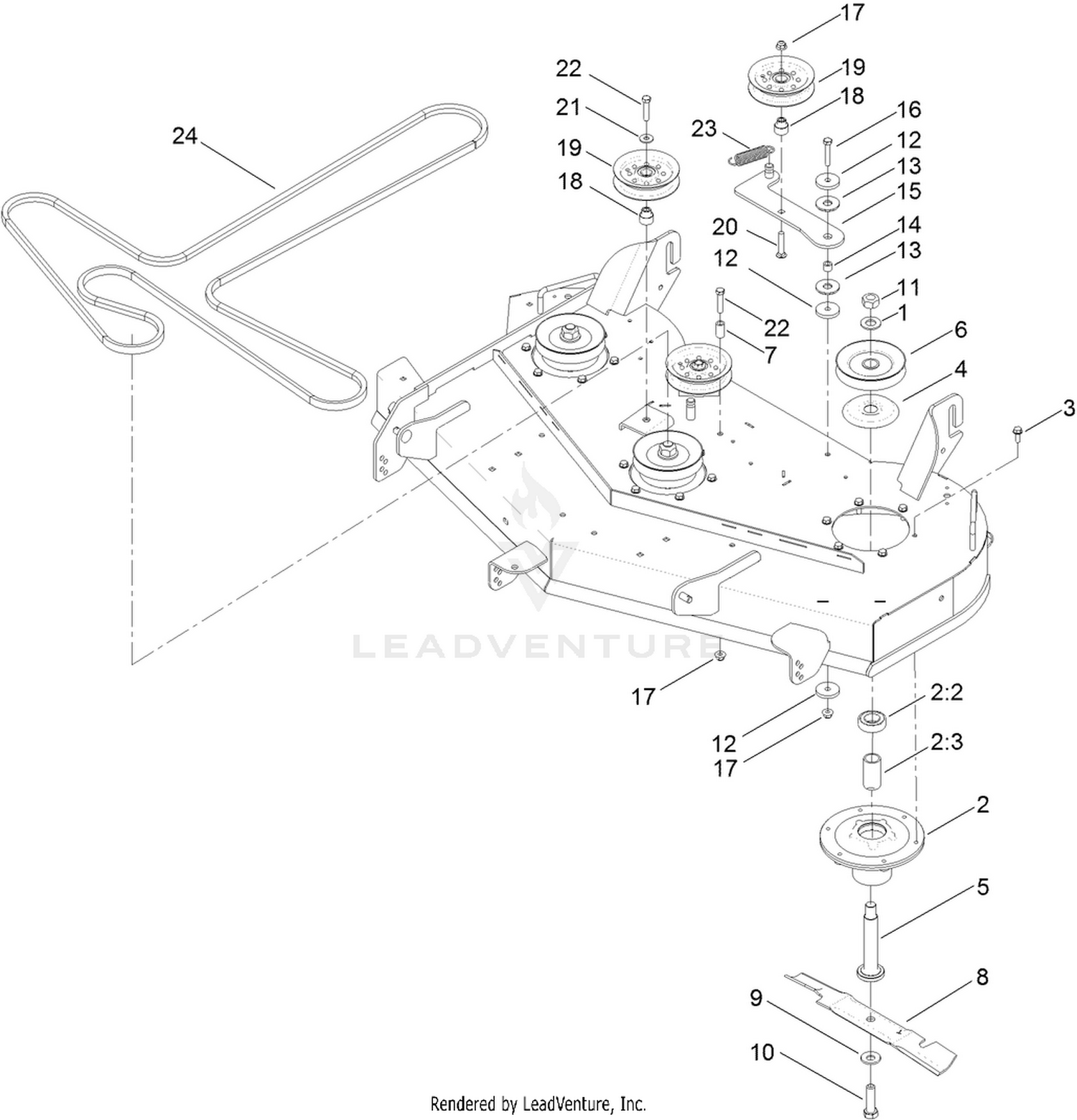

| Ref | Part Number | Description |
|---|
| 1 |
7-4150 |
WASHER Price: $1.19 |
| 2 |
120-5477 |
SPINDLE ASM Price: $76.60 |
| 3 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 4 |
117-7210 |
SHIELD-BEARING Price: $6.59 |
| 5 |
115-2642 |
SHAFT-SPINDLE Price: $34.39 |
| 6 |
117-7326 |
PULLEY Price: $40.03 |
| 7 |
1-603401 |
SPACER Price: $4.58 |
| 8 |
117-7277-03 |
BLADE-HI FLO, 16.50 INCH Price: $22.97 |
| 9 |
125-1736 |
WASHER-BELLEVILLE Price: $3.89 |
| 10 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 11 |
3219-7 |
NUT-HEX Price: $1.53 |
| 12 |
110-9981 |
WASHER-PLAIN Price: $13.99 |
| 13 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 14 |
1-413088 |
BUSHING-LEVER, LIFT Price: $6.74 |
| 15 |
115-5054 |
ARM-IDLER Price: $51.76 |
| 16 |
323-10 |
SCREW-HH Price: $0.89 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
115-2577 |
BUSHING-IDLER Price: $4.12 |
| 19 |
132-4718 |
PULLEY-IDLER, FLAT This part replaces 116-3626. Price: $22.69 |
| 20 |
3231-6 |
SCREW-CARR Price: $2.69 |
| 21 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 22 |
323-9 |
SCREW-HH Price: $1.29 |
| 23 |
108-4056 |
SPRING-EXTENSION Price: $5.38 |
