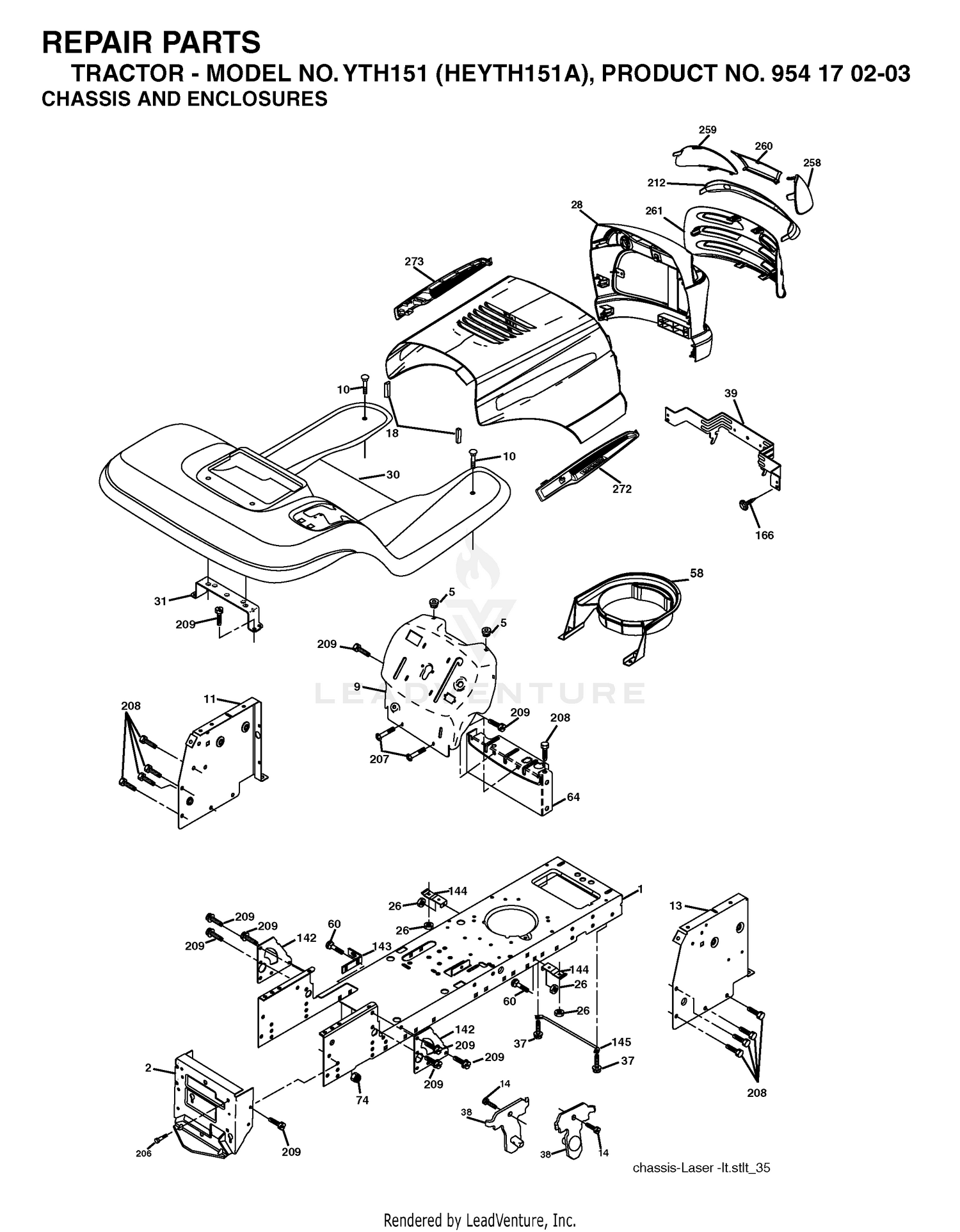

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 2 |
3244-21 |
SCREW-SQH Price: $10.59 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 4 |
107-1050 |
CLUTCH-CENTRIFUGAL Price: $5,481.65 |
| 5 |
13-3320 |
SHEAVE Price: $893.43 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
13-2800 |
SHEAVE Price: $961.42 |
| 7 |
13-2970 |
BUSHING Price: $182.26 |
| 8 |
13-3330 |
BUSHING Price: $47.20 |
| 9 |
3-9155 |
KEY-SQUARE Price: $11.44 |
| 9 |
532168336 |
DASH This part replaces 532171853. Price: $33.08 |
| 10 |
321-6 |
SCREW-HH Price: $0.25 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 12 |
117-8510-03 |
GUARD-BELT Price: $341.40 |
| 13 |
321-4 |
SCREW-HH Price: $0.99 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 14 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 16 |
4-1920 |
WASHER Price: $26.67 |
| 17 |
323-10 |
SCREW-HH Price: $0.89 |
| 17 |
588251301 |
KIT.HOOD.PNT.STEEL.LASER.SV668 This part replaces 532188893. Price: $49.99 |
| 18 |
3218-5 |
NUT-JAM Price: $0.27 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $4.99 |
| 19 |
119-6137-03 |
PLATE-ADAPTER Price: $45.14 |
| 20 |
323-9 |
SCREW-HH Price: $1.29 |
| 21 |
13-2650 |
BELT-V Price: $177.37 |
| 22 |
93-0183 |
BELT-V, IMPELLER Price: $173.29 |
| 23 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 24 |
121-2850-03 |
SHIELD-MUFFLER Price: $217.97 |
| 25 |
121-2851-03 |
SHIELD-HEAT, FRONT BOTTOM Price: $61.95 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
120-5956 |
MUFFLER ASM Price: $180.87 |
| 28 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
532183538 |
Price: Call Us |
| 29 |
323-6 |
SCREW-HH Price: $0.66 |
| 30 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532180507. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 32 |
324-31 |
SCREW-HH Price: $6.65 |
| 33 |
3255-16 |
WASHER-LOCK/EXT Price: $0.61 |
| 34 |
37-4700 |
SPACER-WHEEL Price: $34.54 |
| 35 |
324-13 |
SCREW-HH Price: $1.22 |
| 36 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 37 |
104-7201 |
NUT-HF Price: $0.69 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
13-2240 |
KEY-SQUARE Price: $14.31 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 40 |
105-7864 |
KEY-SQUARE Price: $19.67 |
| 41 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 42 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 43 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 44 |
121-2848-03 |
SHIELD-HEAT, BACK BOTTOM Price: $62.20 |
| 58 |
532187154 |
NEEDS DESCRIPTION Price: Call Us |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 166 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532183548 |
INSERT.LENS.REFLECTIVE Price: $9.99 |
| 258 |
532183378 |
LENS.HUSQ.LASER LT.CLEAR.LH This part replaces 532185213. Price: $8.99 |
| 259 |
532183379 |
LENS.HUSQ.LASER LT.CLEAR.RH This part replaces 532185214. Price: $8.99 |
| 260 |
532442202 |
COVER.LENS.HUSQ.LASER.LT.498 This part replaces 532185216. Price: $11.99 |
| 272 |
532188895 |
VENT.HOOD.LASER. Price: $10.99 |
| 273 |
532188896 |
VENT.HOOD.LASER. Price: $12.99 |
