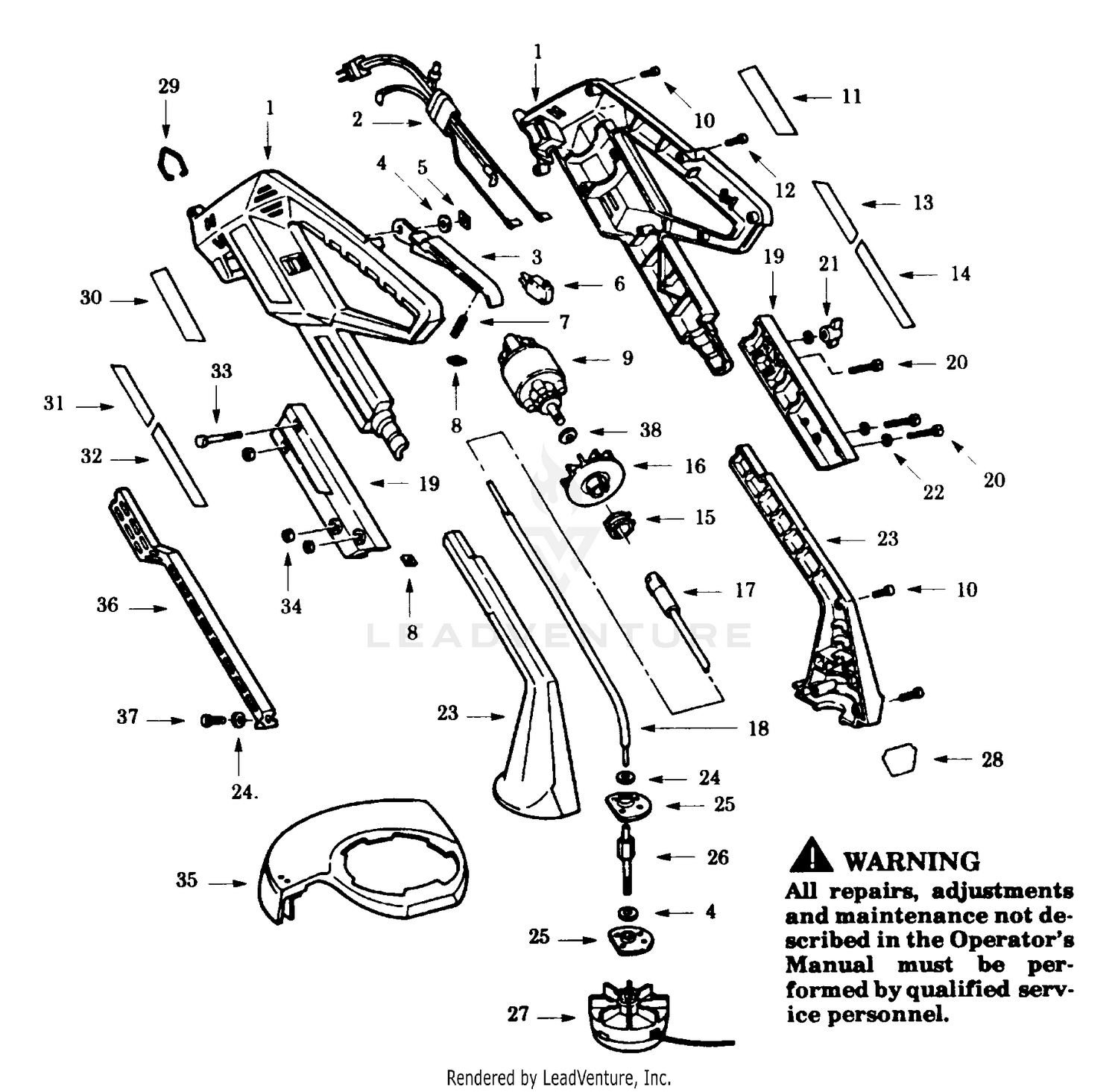

TRIMMER ASSEMBLY
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-0545 | BED ASM Price: $1,416.99 |
| 1 | 534787902 | Motor Hsg. Set Price: $22.99 |
| 2 | 32128-21 | NUT-HF Price: $0.39 |
| 2 | 534789301 | Harness Ass'y. Price: $3.33 |
| 3 | 534788305 | Trigger Price: $1.99 |
| 3 | 98-8761-01 | GUIDE-WHEEL Price: $48.62 |
| 4 | 3231-21 | SCREW-CARR Price: $0.76 |
| 4 | 534228802 | Washer Price: $0.99 |
| 5 | 534790800 | Push Nut Price: $0.99 |
| 6 | 108-3156 | BRACKET-ROD Price: $33.17 |
| 6 | 534789000 | Switch Price: $2.99 |
| 7 | 106-5354 | SPRING-LATCH Price: $30.57 |
| 7 | 534790700 | Trigger Spring Price: $1.99 |
| 8 | 534808100 | Square Nut Price: $3.33 |
| 9 | 105-5394 | ROD-TRAILER, LARGE Price: $19.45 |
| 9 | 534768301 | Motor Ass'y. Price: $74.99 |
| 10 | 534790300 | Screw Price: $3.33 |
| 10 | 98-8756 | SPACER-STOP Price: $12.55 |
| 11 | 323-38 | SCREW-HH Price: $2.62 |
| 11 | 534798700 | Warning Label (Not a serviceable part) Price: $3.33 |
| 12 | 534790301 | Screw Price: $3.33 |
| 12 | 98-8677-01 | INSERT-STANDARD Price: $117.45 |
| 13 | 105-5392 | RIVET-DRIVE Price: $1.76 |
| 13 | 534909600 | Model No. Label (L) (Not a serviceable part) Price: $3.33 |
| 14 | 534909800 | Logo Label (L) Price: $3.33 |
| 14 | 98-8776 | MAT-BED Price: $179.44 |
| 15 | 534560103 | Fan Clamp Price: $1.99 |
| 15 | 98-8777 | SPACER Price: $5.64 |
| 16 | 534526802 | Fan Price: $2.99 |
| 17 | 534788505 | Flex Shaft Ass'y. Price: $11.99 |
| 18 | 534788902 | Sleeve Tubing Price: $3.33 |
| 19 | 534788102 | Housing Clamp Price: $3.33 |
| 20 | 534829601 | Screw Price: $1.99 |
| 21 | 534903000 | Knob Price: $3.33 |
| 22 | 534828701 | Washer Price: $3.33 |
| 23 | 534788005 | Spindle Housing Price: $14.99 |
| 24 | 534636002 | Washer Price: $1.99 |
| 25 | 534790600 | Bearing Holder Disk Price: $2.99 |
| 26 | 534789900 | Shaft Adapter Price: $3.33 |
| 27 | 534907306 | Cutting Head Ass'y. Price: $18.52 |
| 28 | 534933400 | Start-N-Feed Label (Not a serviceable part) Price: $3.33 |
| 29 | 534270100 | Hanger Price: $1.99 |
| 30 | 534909100 | Nameplate Label (Not a serviceable part) Price: $3.33 |
| 31 | 534909700 | Model No. Label (R) (Not a serviceable part) Price: $3.33 |
| 32 | 534909300 | Logo Label (R) Price: $3.33 |
| 33 | 534903100 | Screw Price: $1.99 |
| 34 | 534790500 | Nut Price: $1.99 |
| 35 | 534790400 | Guard Ass'y. Price: $0.60 |
| 36 | 534788405 | Assist Handle Price: $6.99 |
| 37 | 534808200 | Screw Price: $3.99 |
| 38 | 534757900 | Washer Price: $1.99 |
