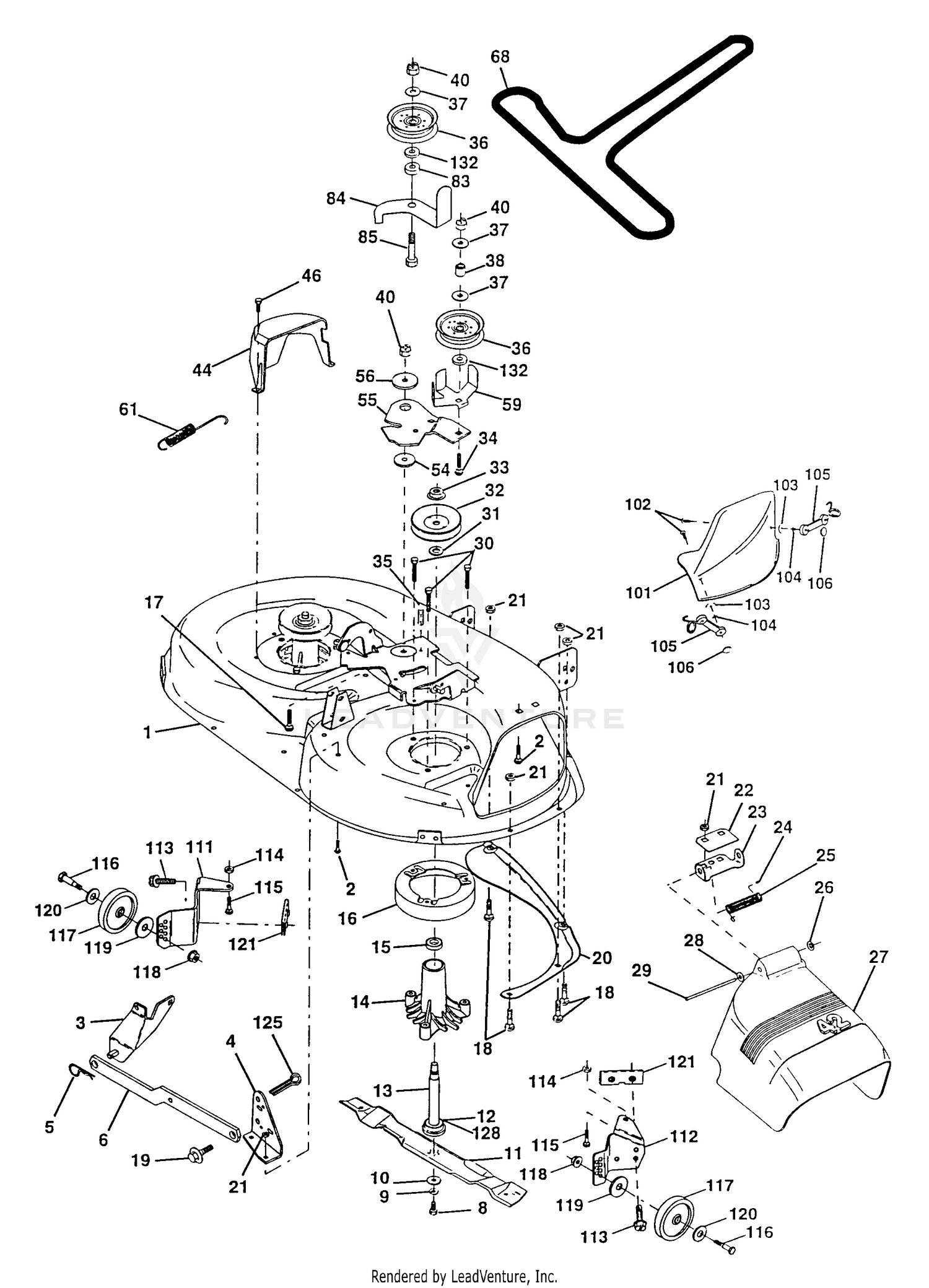

| Ref | Part Number | Description |
|---|
| 1 |
144393 |
Housing Asm Mower 42" 94 T-Path Price: Call Us |
| 2 |
72140506 |
Bolt Rdhd Sqnk 5/16-18 unc X 3/4 Price: Call Us |
| 3 |
138017 |
Bracket Asm., Sway Bar Price: Call Us |
| 4 |
138440 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring (AYP part number) Price: Call Us |
| 6 |
130832 |
Arm, Suspension, Rear (Sway Bar) (AYP part number) Price: Call Us |
| 8 |
850857 |
Bolt, Patched 3/8-24 x 1-1/4 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock Hvy., Unplated 3/8 (AYP part number) Price: Call Us |
| 10 |
140296 |
Washer, Hard Blade, Mower Vented Price: Call Us |
| 11 |
134149 |
Blade Mower Mulching 42" Price: Call Us |
| 12 |
129895 |
Bearing, Ball, Mandrel #6204 Price: Call Us |
| 13 |
137645 |
Shaft Asm. w/Lower Bearing (AYP part number) Price: Call Us |
| 14 |
128774 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
140329 |
Stripper, Mower Round (AYP part number) Price: Call Us |
| 17 |
72110618 |
Bolt Rdhd Sqnk 3/8-16 X 2-1/4 Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Hex Head, Shoulder 5/16-18 Price: Call Us |
| 20 |
136888 |
Baffle, Vortex 42" Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 UNC Price: Call Us |
| 22 |
134753 |
Stiffener, Bracket (AYP part number) Price: Call Us |
| 23 |
131267 |
Bracket, Deflector (AYP part number) Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
130968 |
Shield, Deflector Mower 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
138776 |
Screw, Hex Head, Thdroll (AYP part number) Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented (AYP part number) Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel 42" (AYP part number) Price: Call Us |
| 33 |
137266 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 34 |
72110622 |
Bolt Rdhd 3/8-16 unc X 2-3/4 Gr. 5 Price: Call Us |
| 35 |
133835 |
Fastner Christmas Tree Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat (AYP part number) Price: Call Us |
| 37 |
19131316 |
Washer 13/32 X 13/16 X 16 Ga. Price: Call Us |
| 38 |
132823 |
Spacer Spring Stop Idler (AYP part number) Price: Call Us |
| 40 |
73680600 |
Nut Lock 3/8-16 Unc Price: Call Us |
| 44 |
140088 |
Guard Mandrel LH Black Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 54 |
133943 |
Washer Hardened (AYP part number) Price: Call Us |
| 55 |
140084 |
Arm Idler 42" mower LT/YT (AYP part number) Price: Call Us |
| 56 |
122052X |
Spacer Retainer Pm Mower Price: Call Us |
| 59 |
141043 |
Guard, Belt Price: Call Us |
| 61 |
131950 |
Spring Ext. Elect Price: Call Us |
| 68 |
144200 |
V-Belt Mower Price: Call Us |
| 83 |
120958X |
Washer Sintered Price: Call Us |
| 84 |
156084 |
Keeper Belt idler Price: Call Us |
| 85 |
72140618 |
Bolt Carriage 3/8-16 X 2-1/4 Gr. 5 (AYP part number) Price: Call Us |
| 101 |
136420 |
Cover, Mulching Price: Call Us |
| 102 |
71161010 |
Screw (AYP part number) Price: Call Us |
| 103 |
19061216 |
Washer Price: Call Us |
| 104 |
10071000 |
Washer, Lock #10 Price: Call Us |
| 105 |
130758 |
Latch Asm. Bagger Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 111 |
155197 |
Bracket Wheel Gauge Lh 42" Deck (AYP part number) Price: Call Us |
| 112 |
155198 |
Bracket Gauge Wheel Rh 42" Deck (AYP part number) Price: Call Us |
| 113 |
17490512 |
Screw Thdrol 5/16-18 X 3/4 TYT Price: Call Us |
| 114 |
73510500 |
Nut Keps 5/16-18 UNC Price: Call Us |
| 115 |
72110504 |
Bolt Carriage 5/16Unc x 1/2 (AYP part number) Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
105455X |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 UNC Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 120 |
19171512 |
Washer 17/32 X 15/16 X 12 Ga Price: Call Us |
| 121 |
143723 |
Bracket Price: Call Us |
| 125 |
76020816 |
Cotter Pin Price: Call Us |
| 128 |
153390 |
Washer Felt Price: Call Us |
| 132 |
19132203 |
Washer 13/32 X 1-3/8 X 3 Ga. Price: Call Us |
