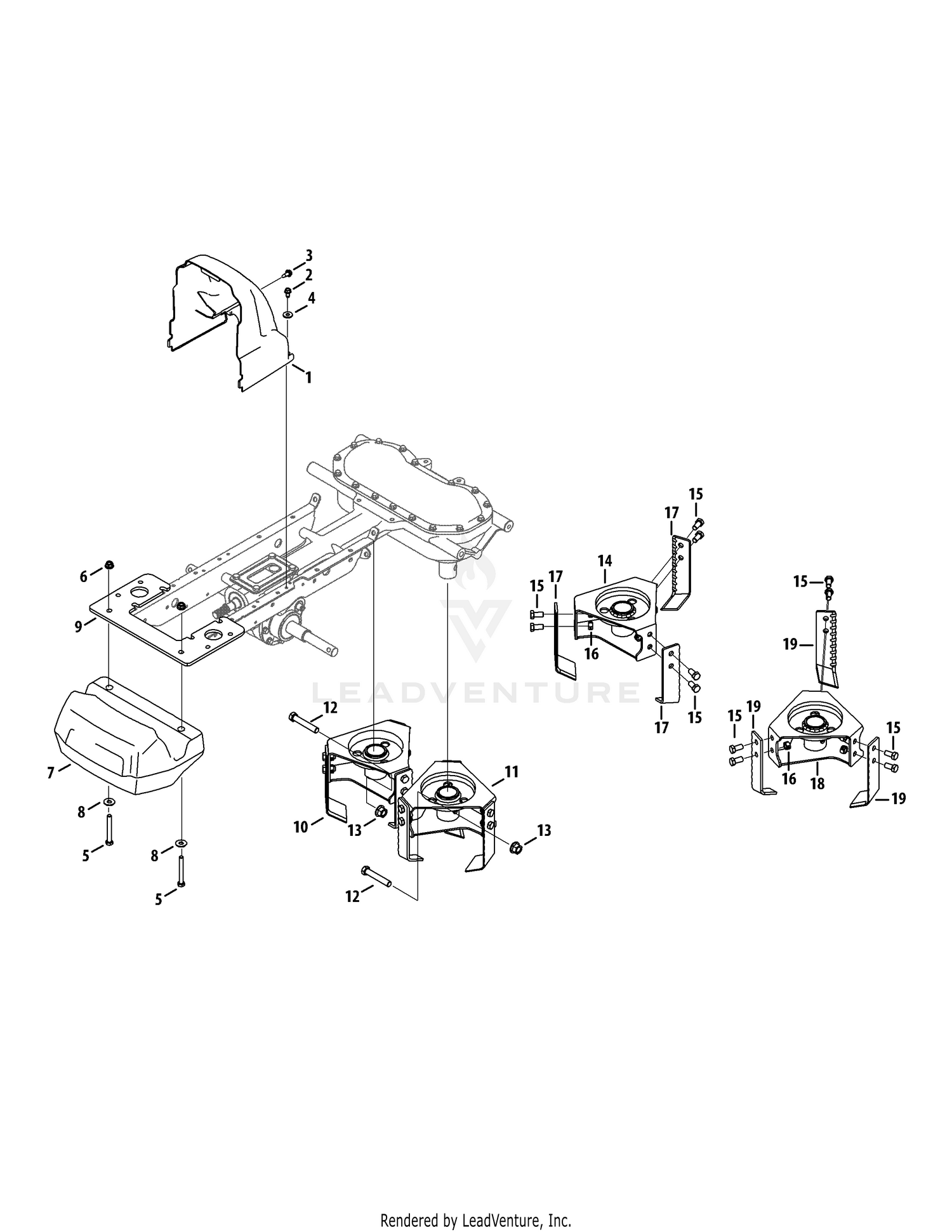

| Ref | Part Number | Description |
|---|
| 1 |
731-06529 |
Belt Cover This part replaces 731-06170. Price: $39.40 |
| 2 |
710-0599 |
Screw, 1/4-20 x 0.500 Price: $3.86 |
| 3 |
710-0896 |
Self Tapping Screw, 1/4-14 x .625 Price: $3.86 |
| 4 |
736-0173 |
Washer, Flat, .28 x .74 x .063 Price: $3.76 |
| 5 |
710-0378 |
Hex Screw, 5/16-18, 2.50, Gr5 Price: $4.09 |
| 6 |
712-04063 |
Flangelock Nut, 5/16-18, B&S Price: $3.56 |
| 7 |
731-09227 |
Weight Price: $72.89 |
| 8 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 9 |
786-05037-0638 |
BUMPER MOUNTING PLATE (MTD RED) Not Available Price: |
| 10 |
N/A |
Tine Assembly, RH |
| 11 |
N/A |
Tine Assembly, LH |
| 12 |
710-0561 |
Hex Cap Screw, 7/16-20 x 2.5 (Grade 5) Price: $9.33 |
| 13 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 14 |
642-05034-0637 |
TINE HOLDER (RH) (POWDER BLACK) Not Available Price: |
| 15 |
710-0216 |
Hex Cap Screw, 3/8-16 x .75 Price: $3.93 |
| 16 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 17 |
742-05076-0637 |
Tine Blade, RH Price: $10.63 |
| 18 |
642-05035-0637 |
TINE HOLDER (LH) (POWDER BLACK) Not Available Price: |
