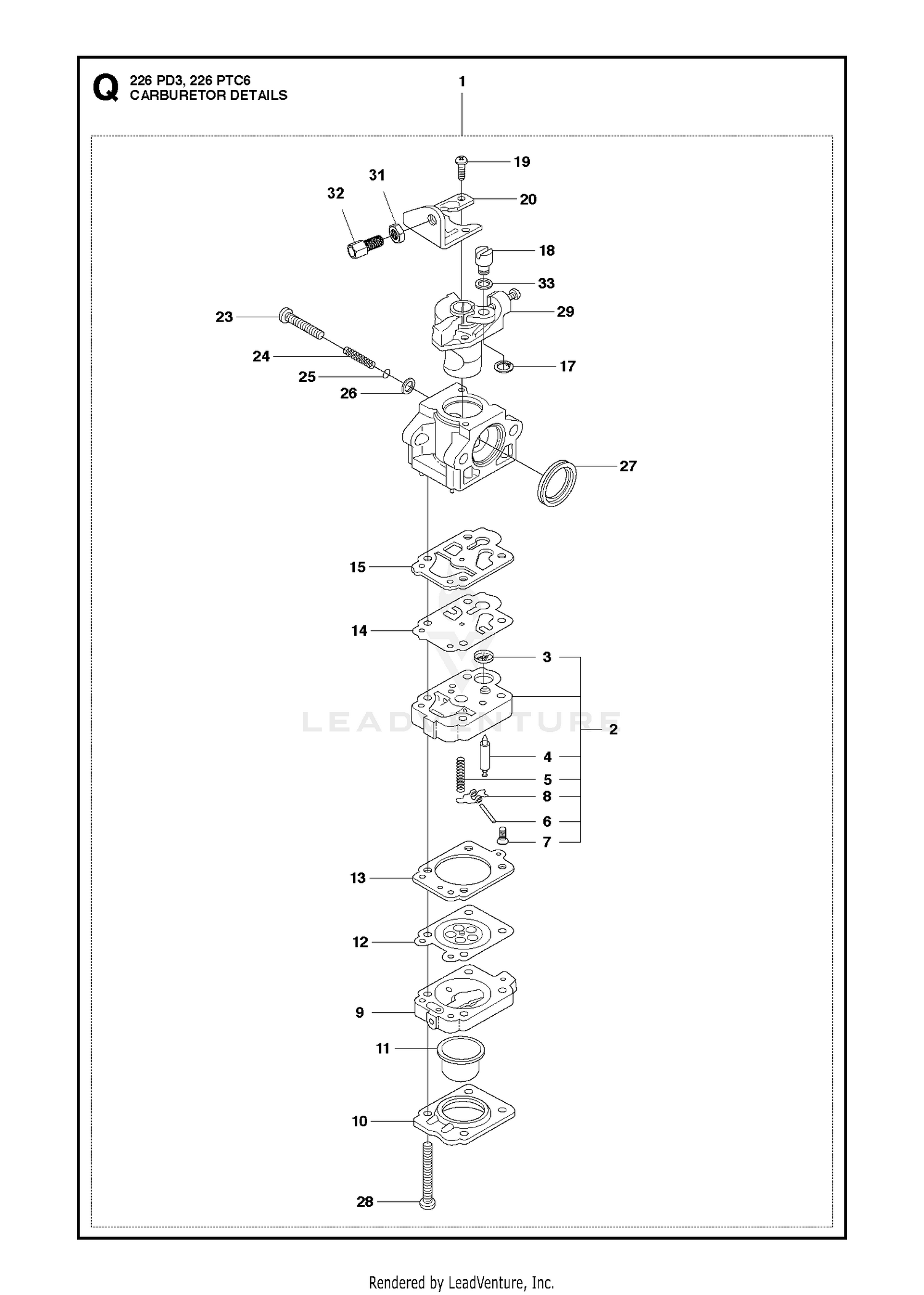

CARBURETOR DETAILS
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512364101 | CARBURETOR ASSEMBLY Price: $123.99 |
| 2 | 513410801 | BODY-A Price: $49.99 |
| 3 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 4 | 521085401 | VALVE INLET Price: $11.99 |
| 5 | 513410701 | SPRING Price: $1.99 |
| 6 | 520977401 | PIN Price: $4.99 |
| 7 | 505306101 | SCREW Price: $2.99 |
| 8 | 520977201 | LEVER Price: $4.99 |
| 9 | 506740901 | BODY Price: $19.99 |
| 11 | 505306701 | PUMP Price: $7.99 |
| 12 | 505306801 | DIAPHRAGM Price: $12.99 |
| 13 | 506740801 | GASKET Price: $7.99 |
| 14 | 506689801 | DIAPHRAGM Price: $3.99 |
| 15 | 506745101 | GASKET Price: $6.99 |
| 17 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 18 | 506741201 | SWIVEL Price: $4.99 |
| 19 | 505307901 | SCREW Price: $2.99 |
| 20 | 506746001 | BRACKET Price: $8.99 |
| 24 | 513301601 | SPRING This part replaces 513301501. Price: $1.99 |
| 25 | 513437801 | O-RING Price: $1.99 |
| 26 | 513437701 | WASHER Price: $1.99 |
| 27 | 505308401 | RING PACKING Price: $3.99 |
| 28 | 506741101 | SCREW Price: $2.99 |
| 29 | 521770101 | VALVE-A Price: $33.99 |
| 31 | 510487401 | NUT This part replaces 506612601. Price: $2.99 |
| 32 | 521756001 | SCREW (RPLS 191881170) This part replaces 506741301. Price: $3.99 |
| 33 | 506746101 | WASHER Price: $2.99 |
