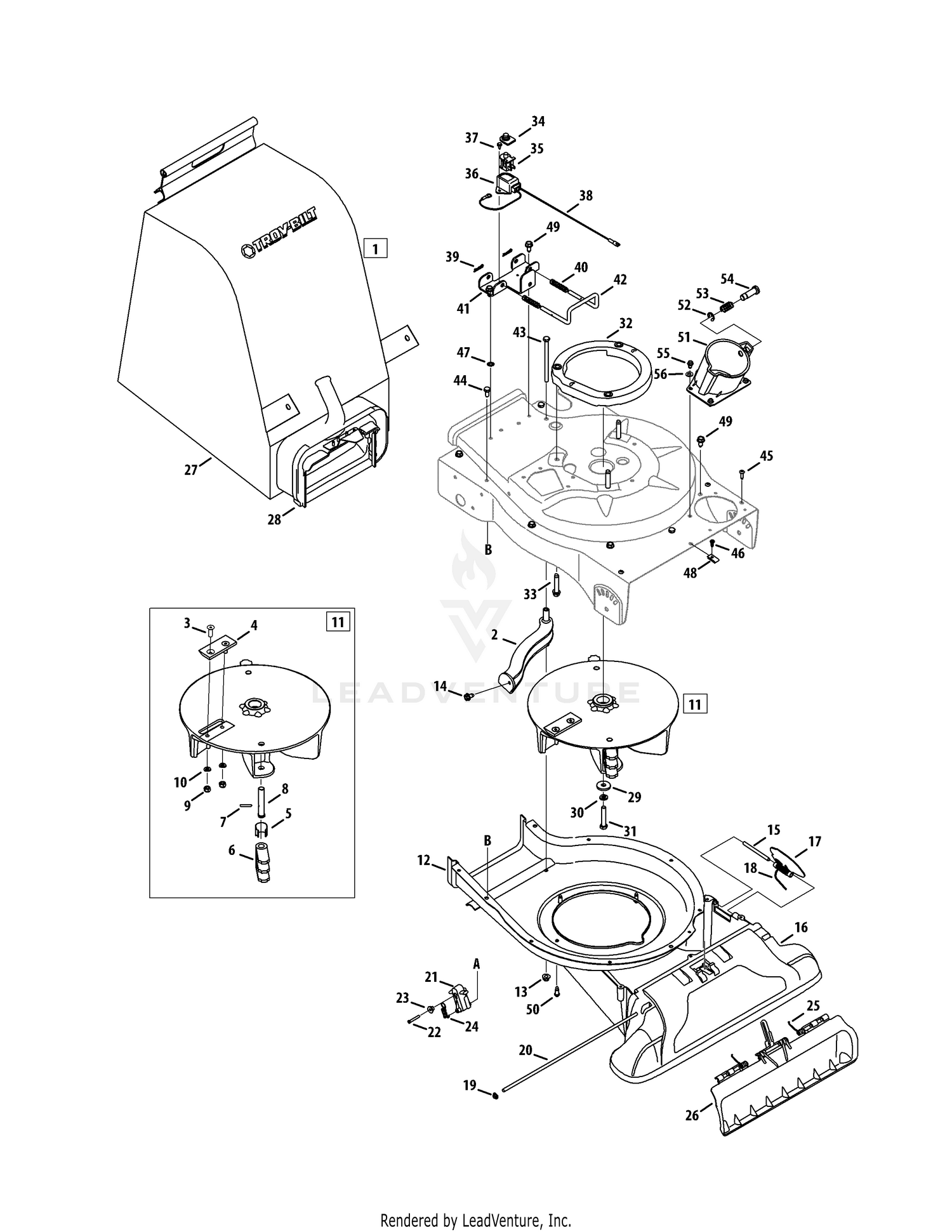

| Ref | Part Number | Description |
|---|
| 1 |
664P04031A |
CHUTE & BAG ASSEMBLY (TROY BILT) This part replaces 964-04031. Price: $293.20 |
| 2 |
681-0154-0637 |
Screen Assembly Price: $42.79 |
| 3 |
710-1054 |
Hex Screw, 5/16-24 x 1.0 Price: $3.71 |
| 4 |
981-0490 |
Chipper Blade Price: $26.69 |
| 5 |
781-0735 |
Pin Clip Price: $3.71 |
| 6 |
719-0329 |
Flail Price: $27.90 |
| 7 |
715-0166 |
Spiral Pin Price: $5.94 |
| 8 |
711-1401 |
Clevis Pin Price: $8.54 |
| 9 |
712-0411 |
Hex Top Lock Nut 5/16-24 This part replaces 912-0411. Price: $3.71 |
| 10 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 12 |
781-0721B-0638 |
Lower Flail Housing Price: $138.29 |
| 13 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 14 |
710-0607 |
Screw, 5/16-18 x.500 Price: $6.06 |
| 15 |
747-04297 |
Hinge Pin Price: $5.78 |
| 16 |
981-04031 |
Nozzle Price: $175.47 |
| 17 |
781-1064 |
Base Adapter Door Price: $32.18 |
| 18 |
732-1156 |
Torsion Spring Price: $4.22 |
| 19 |
926-0106 |
Cap Speed Nut, 1/4 Price: $3.37 |
| 20 |
711-1551 |
Pivot Rod Price: $10.96 |
| 21 |
731-04967 |
Nozzle Door Lever Price: $12.13 |
| 22 |
710-1256 |
Hex Screw, #8-18 x 1.25 Price: $5.25 |
| 23 |
750-1294 |
Shoulder Spacer Price: $11.82 |
| 24 |
732-3118 |
Extension Spring Price: $8.78 |
| 25 |
732-1151A |
Nozzle Door Torsion Spring Price: $4.17 |
| 26 |
731-2294A |
Nozzle Door Price: $37.59 |
| 27 |
664-04029 |
Bag Price: $228.93 |
| 28 |
631P0083A |
CHUTE DISCHARGE ASSEMBLY This part replaces 631-0083. Price: $94.09 |
| 29 |
736-0247 |
Flat Washer, .375 ID x 1.25 OD Price: $8.82 |
| 30 |
736-0217 |
Lock Washer, 3/8 This part replaces 936-0217. Price: $3.86 |
| 31 |
710-1273 |
Hex Cap Screw, 3/8-24 x 2.75 Price: $6.92 |
| 32 |
631-04118 |
Engine Spacer Assembly Price: $33.97 |
| 33 |
710-1008 |
Screw, 3/8-16 x 1.875 Price: $4.75 |
| 34 |
925-1700 |
Switch Cover Price: $10.40 |
| 35 |
925-3166 |
Safety Switch Price: $15.61 |
| 36 |
931-1613 |
Safety Switch Cover Price: $9.16 |
| 37 |
910-0224 |
Hex Washer Screw, #10-16 x.50 Price: $3.19 |
| 38 |
629-0920A |
Wire Harness Price: $36.64 |
| 39 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 40 |
732-0962 |
Compression Spring Price: $3.75 |
| 41 |
781-0778A-0637 |
Mounting Bracket Price: $15.07 |
| 42 |
747-1153 |
Lock Rod Price: $14.50 |
| 43 |
710-3195 |
Hex Cap Screw, 5/16-18 x 4.5 Price: $6.38 |
| 44 |
710-3025 |
Hex Cap Screw, 5/16-18 x.625 Price: $3.64 |
| 45 |
710-1220 |
Screw, #12-16 x.750 Price: $3.96 |
| 46 |
710-0351 |
Screw, #10 - 16 x.500 Price: $3.90 |
| 47 |
736-0607 |
External L-Washer, 5/16 Price: $3.66 |
| 48 |
726-0139 |
Speed Nut Price: $5.94 |
| 49 |
710-0726 |
Hex Index Screw, 5/16-12 x.750 Price: $3.82 |
| 50 |
710-1650 |
Shldr. Screw, #12-24 x .30 x .46 Price: $4.22 |
| 52 |
916-0104 |
E Ring, .500 Dia Price: $3.37 |
| 53 |
932-3035 |
Compression Spring Price: $9.73 |
| 54 |
711-1571 |
Clevis Pin Price: $7.58 |
| 55 |
710-0599 |
Screw, 1/4-20 x .500 Price: $3.86 |
| 56 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 936-3020. Price: $5.94 |
