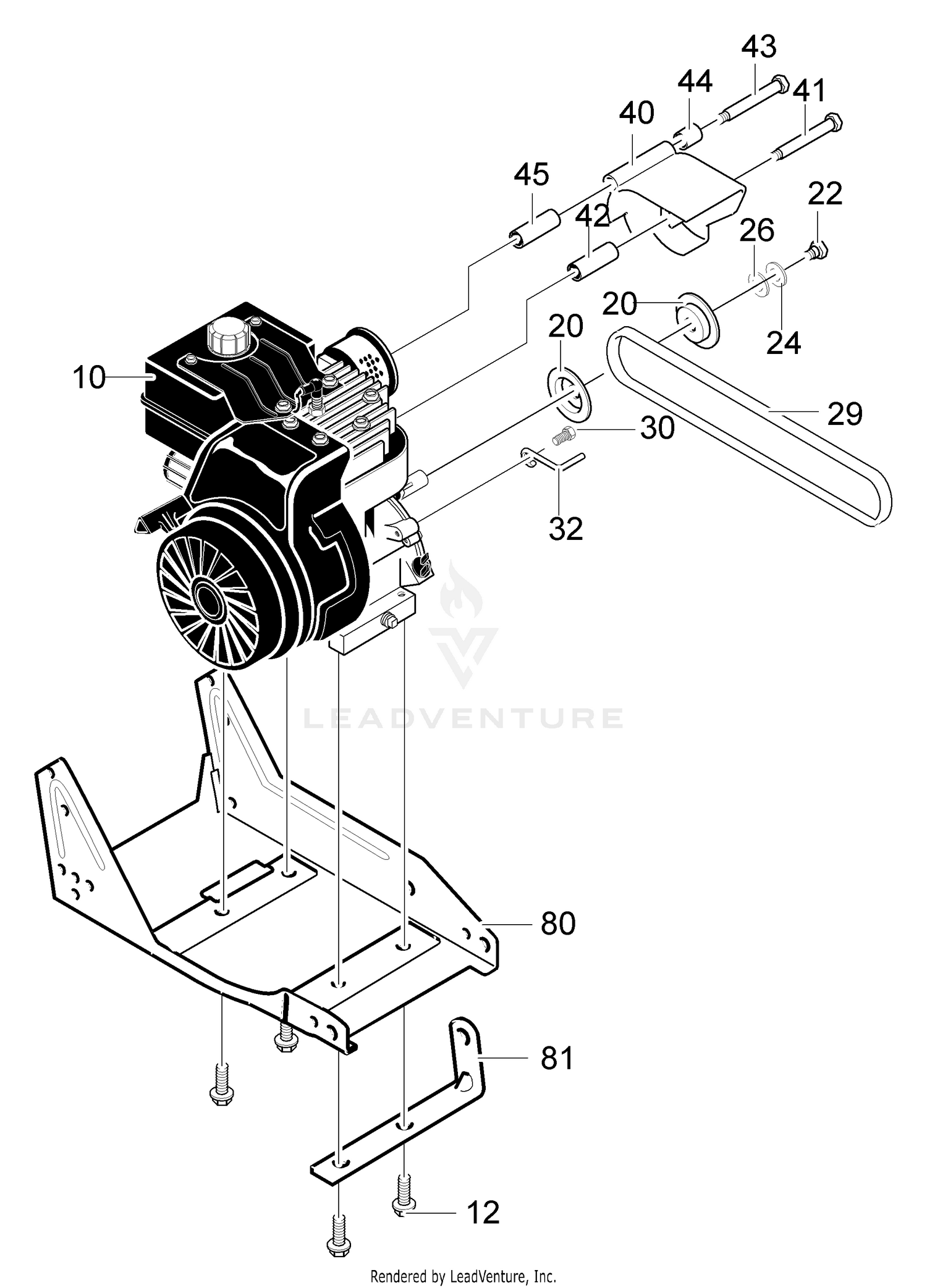

Engine Related
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 601000835 | SCREW SELF-TAP 3/8-16X1 IN Price: $2.53 |
| 20 | 601002203 | PULLEY, HALF V3L Price: $22.99 |
| 22 | 601001327 | SCREW Price: $4.95 |
| 24 | 601000023 | WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 26 | 601000547 | WASHER, FLAT .333X .87X. Price: $3.99 |
| 29 | 601000509 | BELT, V4L 32.60LG Price: $37.99 |
| 30 | 601001433 | SCREW Price: $2.92 |
| 32 | 601000580 | BELT GUIDE Price: $1.99 |
| 40 | 601002204 | COVER, ENGINE PULLEY Price: $8.99 |
| 41 | 601000080 | Screw, 5/16-24x3.00 Price: $3.41 |
| 42 | 601002205 | Spacer, Sleeve Price: $3.57 |
| 43 | 601002206 | SCREW Price: $1.99 |
| 44 | 601002207 | Spacer Price: $4.90 |
| 45 | 601002205 | Spacer, Sleeve Price: $3.57 |
| 80 | 601002208 | FRAME, ASSY EDGER Price: $68.99 |
| 81 | 601002209 | Strap Price: $4.80 |
