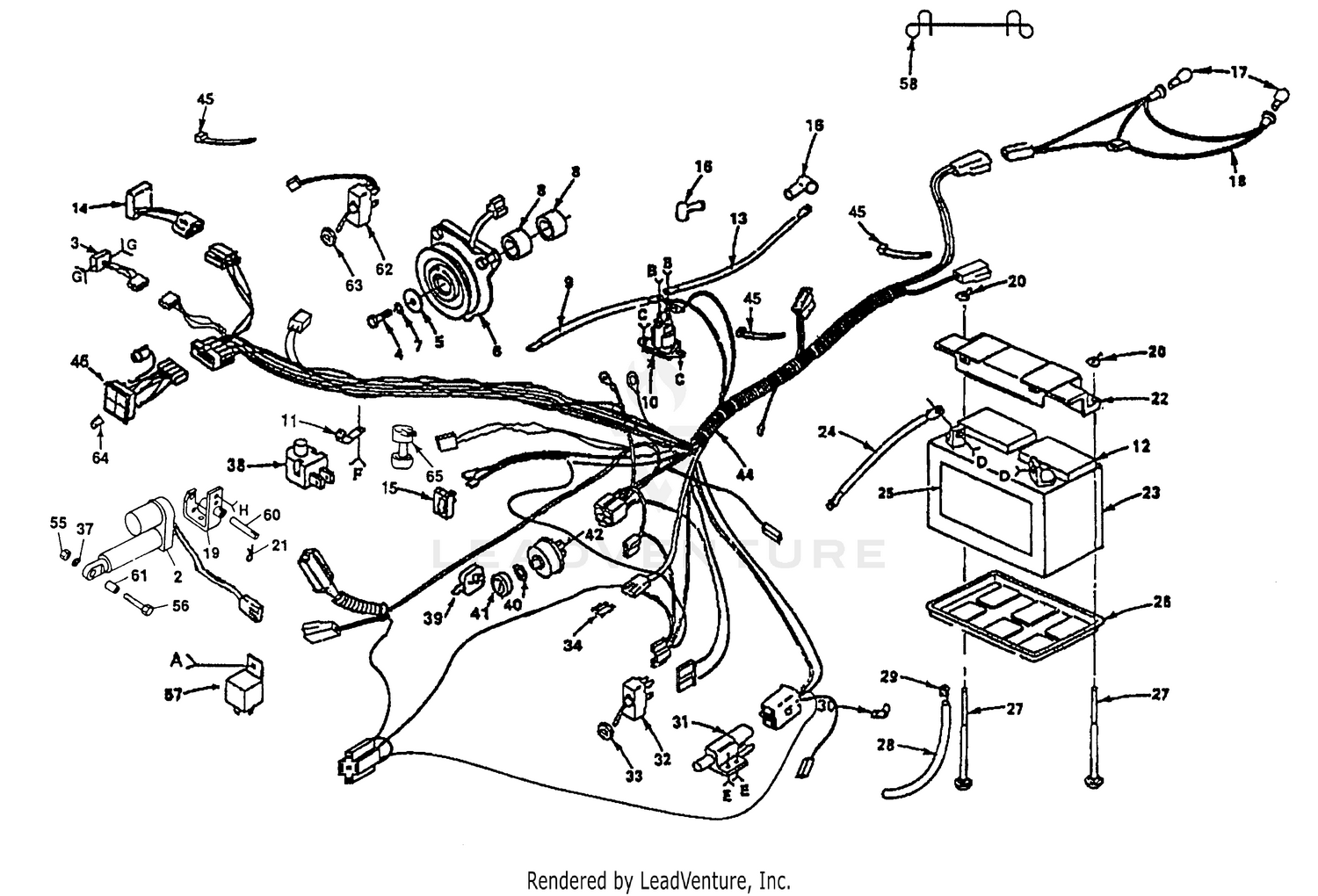

| Ref | Part Number | Description |
|---|
| 2 |
532124371 |
ELECT ACTUATOR Price: $939.99 |
| 3 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532110940. Price: $109.99 |
| 4 |
874610724 |
Bolt-Hex 7/16 - 20 x 1-1/2 GR 5 Price: $2.99 |
| 5 |
532126197 |
WASHER Price: $6.99 |
| 6 |
532109550 |
ELECTRIC CLUTCH T Price: $255.01 |
| 7 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 8 |
532106367 |
SPACER-CLUTCH GT Price: $9.17 |
| 9 |
532004799 |
BATTERY CABLE This part replaces 532124770. Price: $8.99 |
| 10 |
532146154 |
KIT SOLENOID .95 This part replaces 532109081. Price: $19.99 |
| 11 |
532124967 |
CLIP T This part replaces 532004171. Price: $5.46 |
| 12 |
532121264 |
CAP BATTERY NLA Price: $10.91 |
| 13 |
532005114 |
STARTER CABLE This part replaces 532005115. Price: $8.46 |
| 14 |
532127385 |
SENSOR LOW VOLTAGE This part replaces 532109554. Price: $82.99 |
| 15 |
532110712 |
SWITCH LT Price: $7.99 |
| 16 |
532154336 |
COVER.TERMINAL.RED This part replaces 532000719. Price: $4.99 |
| 17 |
532004152 |
LIGHTBULB This part replaces 532124893. Price: $3.99 |
| 18 |
532110859 |
HARNESS T Price: $17.84 |
| 19 |
532124867 |
BRACKET T Price: $24.69 |
| 20 |
532146525 |
NUT.WING.LCK.NYL.NOTCH.1/4-20 This part replaces 532123198. Price: $3.99 |
| 21 |
532004940 |
SPRING * Price: $5.46 |
| 22 |
532150109 |
BATTERY HOLDDOWN FRONT MOUNT This part replaces 532102476. Price: $4.99 |
| 23 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121537. Price: $149.99 |
| 24 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 25 |
532121549 |
DECAL NLA Price: $6.02 |
| 26 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $5.99 |
| 27 |
872240460 |
BOLT Price: $4.99 |
| 28 |
532007697 |
PLASTIC TUBE This part replaces 532100541. Price: $6.23 |
| 29 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 31 |
532104445 |
SWITCH-INTER. GT Price: $14.99 |
| 32 |
532126018 |
SWITCH,PTO Price: $17.96 |
| 33 |
532004022 |
HEX NUT T (1 2) This part replaces 532124932. Price: $2.99 |
| 34 |
532108824 |
FUSE HYT This part replaces 532006347. Price: $4.99 |
| 37 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 38 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 39 |
532122147 |
KEY.MOLDED.GENERIC Price: $5.99 |
| 40 |
532124211 |
NUT IGNITION This part replaces 532109788. Price: $4.99 |
| 41 |
584446901 |
KIT.IGN.BOOT/NUT This part replaces 532109787. Price: $5.99 |
| 42 |
532365402 |
KIT.SWITCH.IGNITN This part replaces 532125104. Price: $27.99 |
| 44 |
532124047 |
HARNESS IGNITION Price: $96.01 |
| 45 |
532007192 |
WIRE TIE This part replaces 532124756. Price: $7.99 |
| 46 |
532126519 |
LIGHT PACKAGE Price: $60.20 |
| 55 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 56 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 57 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
| 58 |
532121465 |
TIE WIRE Price: $2.38 |
| 60 |
532007085 |
PIN-ACTUATOR T Price: $14.99 |
| 61 |
532005950 |
TUBE GT Price: $3.99 |
| 62 |
532126289 |
LIFT,SW WIRING Price: $52.99 |
| 63 |
532007319 |
LOCKWASHER Price: $2.38 |
| 64 |
532110143 |
BULB LIGHT T Price: $3.08 |
| 65 |
532126487 |
SENSOR, LOW FUEL Price: $84.02 |
| 532101539 |
SHEET |
INSTR LT Price: $2.38 532101539 |
| 532101572 |
INSTRUCTION |
SHEET Price: $1.92 532101572 |
| 532123469 |
Owner's |
Manual, Kohler, Engine English) Price: Call Us 532123469 |
| 532124570 |
OWNERS |
MANUAL Price: $4.69 532124570 |
| 532124571 |
Owner's |
Manual (French) Price: Call Us 532124571 |
| 532126893 |
Parts |
Manual (English) Price: Call Us 532126893 |
