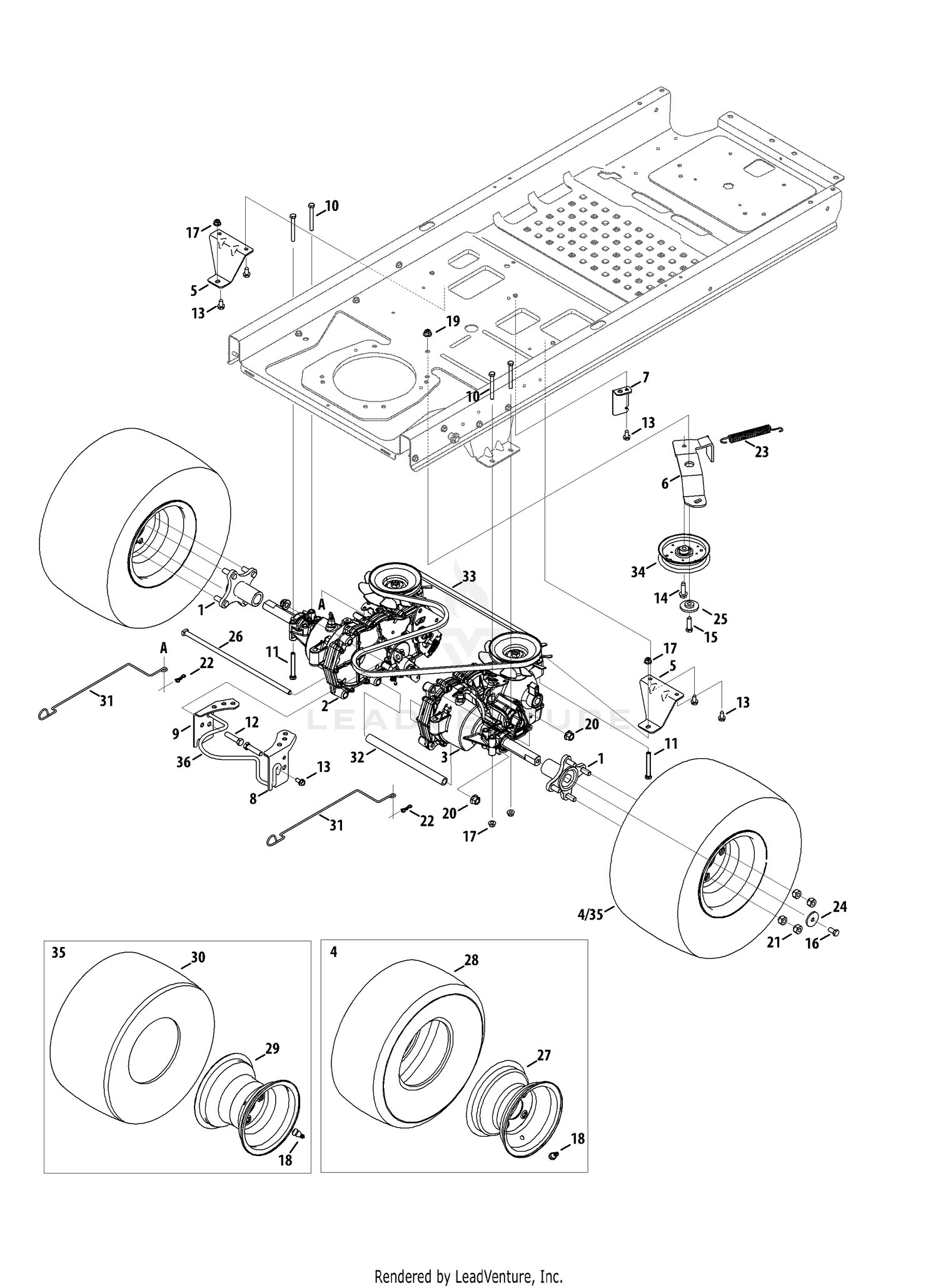

| Ref | Part Number | Description |
|---|
| 1 |
918-04317 |
Wheel Hub Assembly Price: $102.24 |
| 2 |
918-05128B |
HYDRO TRANSMISSION ASSEMBLY (LH) This part replaces 918-05128. Price: $1,288.60 |
| 3 |
918-05129B |
HYDRO TRANSMISSION ASSEMBLY (RH) This part replaces 918-05129. Price: $1,288.60 |
| 5 |
703-08570-0637 |
Transmission Mounting Bracket Price: $11.15 |
| 6 |
603Z05256 |
IDLER BRACKET ASSEMBLY This part replaces 703-08605. Price: $36.94 |
| 7 |
703-08613A-0637 |
Spring Mounting Bracket This part replaces 703-08613-0637. Price: $4.64 |
| 8 |
703-08614A-0637 |
Transmission Bracket Price: $10.31 |
| 9 |
703-08615A-0637 |
Transmission Bracket Price: $10.31 |
| 10 |
710-0176 |
Hex Screw, 5/16-18 x 2.75 Price: $3.89 |
| 11 |
710-0395 |
Hex Screw, 5/16-18 x 2.25 Price: $4.08 |
| 12 |
710-04092 |
Hex Screw, 7/16-20 x 1.75 Price: $3.70 |
| 13 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 14 |
710-1315 |
Hex Washer Screw, 3/8-16 x 1.250 Price: $3.90 |
| 15 |
710-0514 |
Hex Screw, 3/8-16 x 1.00 Price: $3.78 |
| 16 |
710-3119 |
Hex Screw, 3/8-16 x .75 Price: $5.91 |
| 17 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 18 |
934-0255 |
Valve Tubeless Price: $3.83 |
| 19 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 20 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 21 |
712-3050 |
Lug Nut, 7/16-14 Price: $9.17 |
| 22 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 23 |
732-04229 |
Extension Spring, .75 Dia. x 6.02 Price: $19.09 |
| 24 |
736-0227 |
WASHER:FLAT: .390 x 1.50 x .134 This part replaces 936-0227. Price: $5.78 |
| 25 |
738-04162C |
Shoulder Spacer, .884 x .190 Price: $12.76 |
| 26 |
738-04423 |
SUPPORT TUBE ROD Not Available Price: |
| 31 |
747-05657B |
HYDRO BYPASS ROD This part replaces 747-05657. Price: $13.12 |
| 32 |
750-04561A |
SUPPORT TUBE This part replaces 750-04561. Price: $23.66 |
| 33 |
954-04317A |
Drive Belt This part replaces 954-04317. Price: $46.63 |
| 34 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
