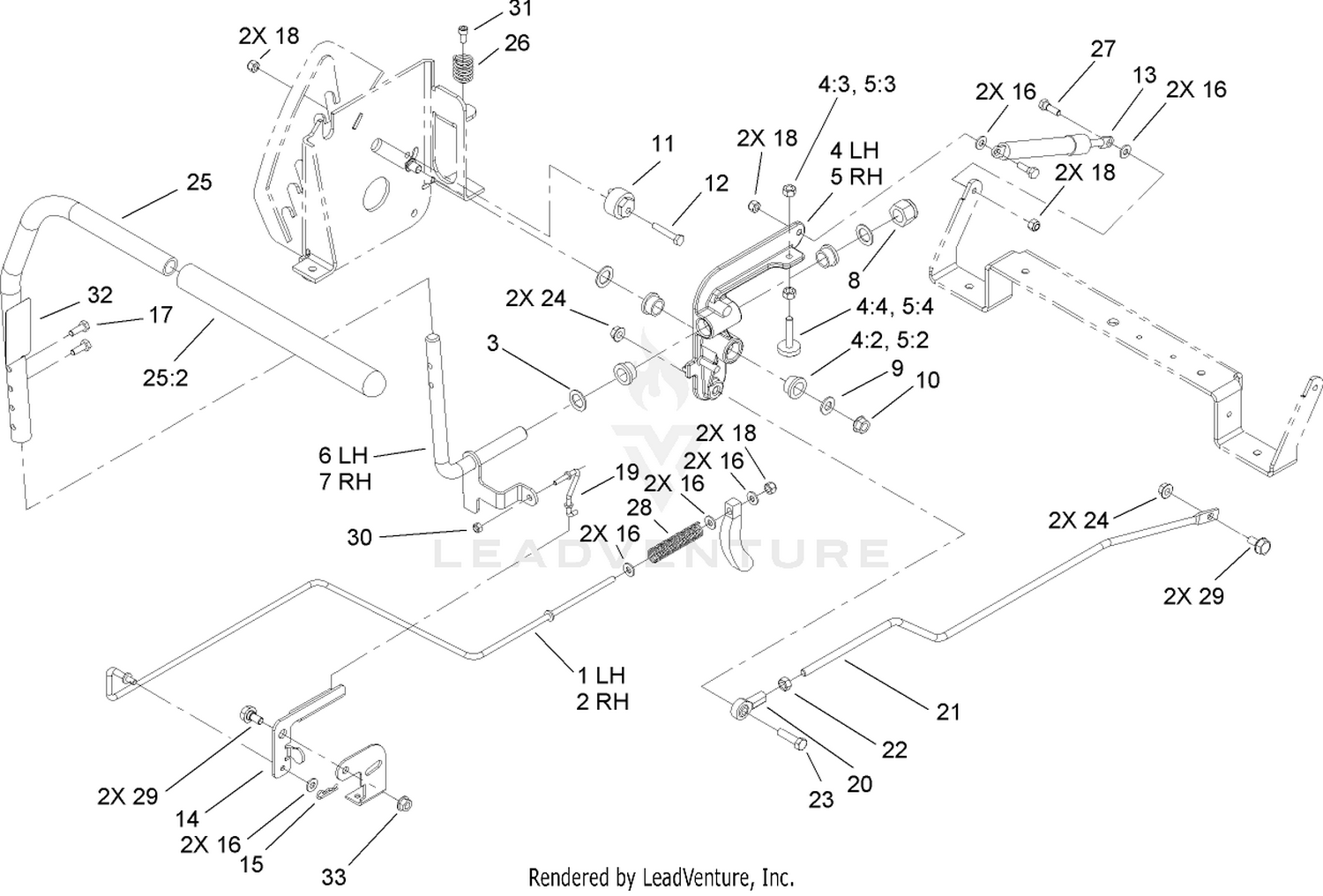

| Ref | Part Number | Description |
|---|
| 2 |
105-7044 |
ROD-BRAKE, RH Price: $17.55 |
| 3 |
105-3481 |
WASHER-THRUST Price: $1.19 |
| 5 |
110-1870 |
RH ACTIVATOR ARM ASM Price: $62.19 |
| 7 |
105-3487 |
RH PIVOT SHAFT ASM Price: $52.55 |
| 8 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 11 |
107-4874 |
ECCENTRIC Price: $8.87 |
| 12 |
321-9 |
SCREW-HH Price: $0.27 |
| 13 |
131-4132 |
DAMPER This part replaces 103-2913. Price: $43.77 |
| 14 |
106-2181 |
BELLCRANK Price: $9.66 |
| 15 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 16 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 17 |
321-4 |
SCREW-HH Price: $0.99 |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 19 |
106-2179 |
LINK-BRAKE Price: $14.49 |
| 20 |
1-543017 |
BALLJOINT-RH Price: $19.99 |
| 21 |
105-7048 |
ROD-HYDRO Price: $14.92 |
| 22 |
3219-2 |
NUT-HEX Price: $0.37 |
| 23 |
322-6 |
SCREW-HH Price: $0.45 |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
106-2242 |
HANDLE ASM Price: $102.14 |
| 26 |
105-3469 |
SPRING-COMPRESSION Price: $6.25 |
| 27 |
106-2214 |
BOLT-SHOULDER Price: $8.17 |
| 28 |
105-3465 |
SPRING-COMPRESSION Price: $4.30 |
| 29 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 30 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 31 |
3274-52 |
SCREW-HSH Price: $3.19 |
| 32 |
106-8742 |
DECAL Price: $17.78 |
