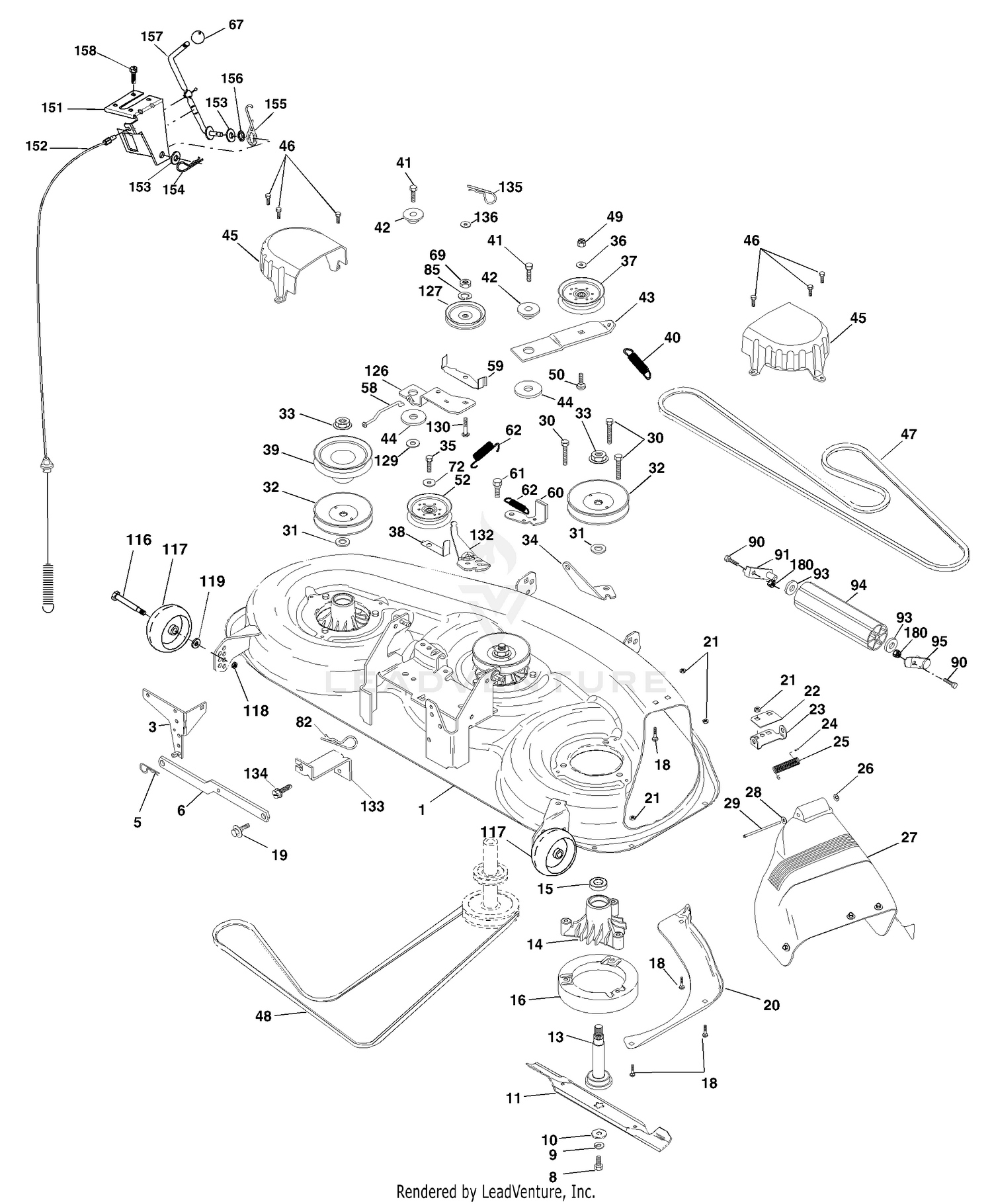

| Ref | Part Number | Description |
|---|
| 1 |
156948 |
Deck Asm., Mower 46" Price: Call Us |
| 3 |
138457 |
Bracket Asm., Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
130832 |
Arm, Suspension, Rear (Sway Bar) Price: Call Us |
| 8 |
850857 |
Bolt, Patched 3/8-24 x 1-1/4 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock Hvy., Unplated 3/8 Price: Call Us |
| 10 |
140296 |
Washer, Hard Blade, Mower Vented Price: Call Us |
| 11 |
176084 |
Blade Hi-Perf 46" Price: Call Us |
| 13 |
137553 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 14 |
137152 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mower Round Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Hex Head, Shoulder 5/16-18 Price: Call Us |
| 20 |
145055 |
Baffle, Vortex Mower 46" Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 UNC Price: Call Us |
| 22 |
134753 |
Stiffiner, Bracket Price: Call Us |
| 23 |
131267 |
Bracket, Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
149287 |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
166883X428 |
Shield, Deflector Mower Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
157722 |
Screw, Thdroll Washer Head Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153531 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Flg. Top Lock Price: Call Us |
| 34 |
144945 |
Anchor, Spring Deck 46" Price: Call Us |
| 35 |
17490628 |
Screw, Thdroll 3/8-16 x 1-3/4 Tytt Price: Call Us |
| 36 |
19131316 |
Washer 13/32 x 1 x 16 Ga. Price: Call Us |
| 37 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 38 |
156085 |
Keeper, Belt, Idler Price: Call Us |
| 39 |
144917 |
Pulley, Idler, Driven Price: Call Us |
| 40 |
137273 |
Spring, Secondary 44/46/50 Vent Price: Call Us |
| 41 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 42 |
165723 |
Spacer, Retainer Price: Call Us |
| 43 |
144949 |
Arm, Idler Secondary Price: Call Us |
| 44 |
133943 |
Washer, Hardened Price: Call Us |
| 45 |
145059 |
Cover, Mandrel Deck Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
144959 |
V-Belt, Mower, Secondary Price: Call Us |
| 48 |
139573 |
V-Belt, Mower, Primary Price: Call Us |
| 49 |
73680600 |
Nut, Crownlock 3/8-16 UNC Price: Call Us |
| 50 |
72110612 |
Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 52 |
156493 |
Pulley Idler Price: Call Us |
| 58 |
165906 |
Rod Brake 46" Price: Call Us |
| 59 |
157034 |
Guide Bolt 46" Mower Dr Price: Call Us |
| 60 |
156722 |
Arm Asm Brake 46" Price: Call Us |
| 61 |
161315 |
Bolt Shld 5/16-18 Price: Call Us |
| 62 |
131870 |
Spring Return Price: Call Us |
| 67 |
106932X |
Knob Rd 3/8-16 Plstc Thds Blk Price: Call Us |
| 69 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 72 |
19131316 |
Washer 13/32 x 1 x 16 Ga. Price: Call Us |
| 82 |
4497H |
Retainer Spring Price: Call Us |
| 85 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 90 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 91 |
175746 |
Bracket Asm. Noseroller Lh Price: Call Us |
| 93 |
19171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: Call Us |
| 94 |
132264 |
Roller Nose Price: Call Us |
| 95 |
175747 |
Bracket Asm. Noseroller Rh Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
165746 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 UNC Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 126 |
156472 |
Arm, Idler, Primary Deck 46" Price: Call Us |
| 127 |
146763 |
Pulley, Idler, V-Groove Dim. 4.25 Price: Call Us |
| 129 |
19133808 |
Washer 13/32 x 2-3/8 x 8 Ga Price: Call Us |
| 130 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 132 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 133 |
165904 |
Bracket Anchor Cable 46" Price: Call Us |
| 134 |
17490512 |
Screw Thdrol 5/16-18 x 3/4 Price: Call Us |
| 135 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 136 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
170328 |
Clutch Cable 38"/46" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retension Q Price: Call Us |
| 156 |
169672 |
SPacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720410 |
Screw Hex Thd Cut 1/4-20 x 5/8 Price: Call Us |
| 143651 |
Mandrel |
Asm 44"/46"/50" Service Price: Call Us 143651 |
