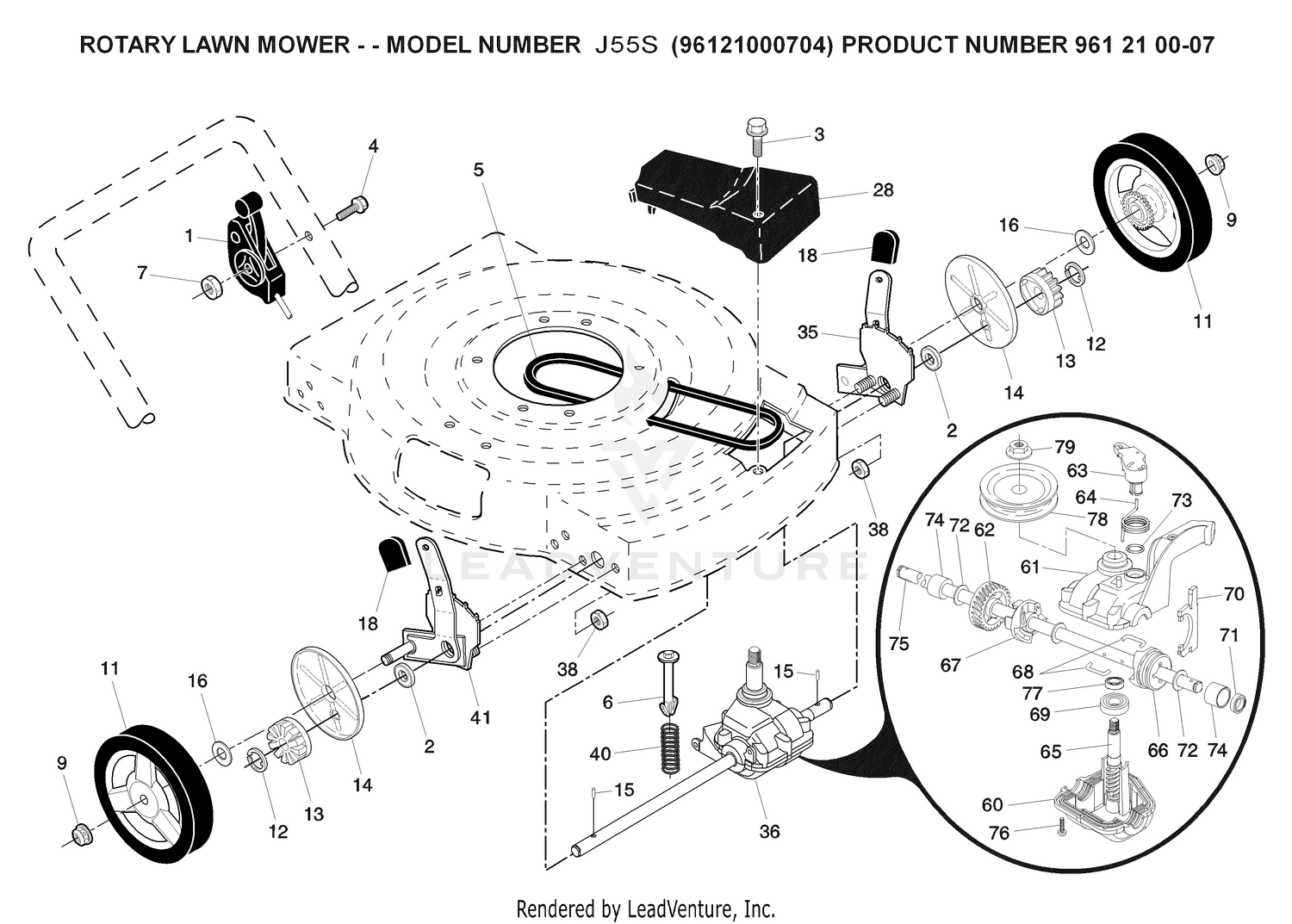

| Ref | Part Number | Description |
|---|
| 1 |
532184588 |
DRIVE CONTROL 59.8 FWGD Price: $44.99 |
| 3 |
532143603 |
Screw, Tapping, Pan Head #10-24 x 2-3/4 Price: Call Us |
| 4 |
532158755 |
SCREW.PAN.HEAD Price: $4.99 |
| 5 |
532157769 |
KIT.SERVICE.BELT/SPRING. This part replaces 532146527. Price: $14.99 |
| 6 |
532150495 |
SPRING RETAINER Price: $3.99 |
| 7 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 9 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 18 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $4.99 |
| 28 |
532196008 |
Drive Cover Price: Call Us |
| 35 |
532406345 |
NEEDS DESCRIPTION Price: Call Us |
| 36 |
532415226 |
TRANSMISSION.22.FGD/W/PULLEY Price: $69.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 40 |
532137090 |
SPRING.EXTENSION Price: $4.99 |
| 41 |
532406344 |
NEEDS DESCRIPTION Price: Call Us |
| 60 |
532183497 |
LOWER CASE Price: $12.99 |
| 61 |
532183498 |
UPPER CASE Price: $12.99 |
| 62 |
532183499 |
GEAR.27.TEETH.WALK.MOWER Price: $14.99 |
| 63 |
532183500 |
LEVER, CLUTCH Price: $4.99 |
| 64 |
532183501 |
SPRING, RETURN Price: $4.99 |
| 65 |
532416988 |
SHAFT.INPUT.WORM.GEAR(13155) Price: $32.99 |
| 66 |
532183503 |
DOG, MOVABLE (11032) Price: $4.99 |
| 67 |
532183504 |
DOG, FIXED GT11031 Price: $3.99 |
| 68 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 69 |
532183506 |
BEARING Price: $5.99 |
| 70 |
532183507 |
FORK, SHIFT Price: $7.99 |
| 71 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 72 |
532183509 |
WASHER Price: $3.99 |
| 73 |
532183510 |
SEAL, CASE O-RING Price: $4.99 |
| 74 |
532183511 |
BUSHING Price: $4.99 |
| 76 |
532183513 |
SCREW Price: $3.99 |
| 77 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 78 |
532416987 |
FLANGE.PULLEY.33027(GENERAL.TR Price: $17.99 |
| 79 |
532416986 |
NUT.WITH.FLAT.BROKE Price: $11.99 |
