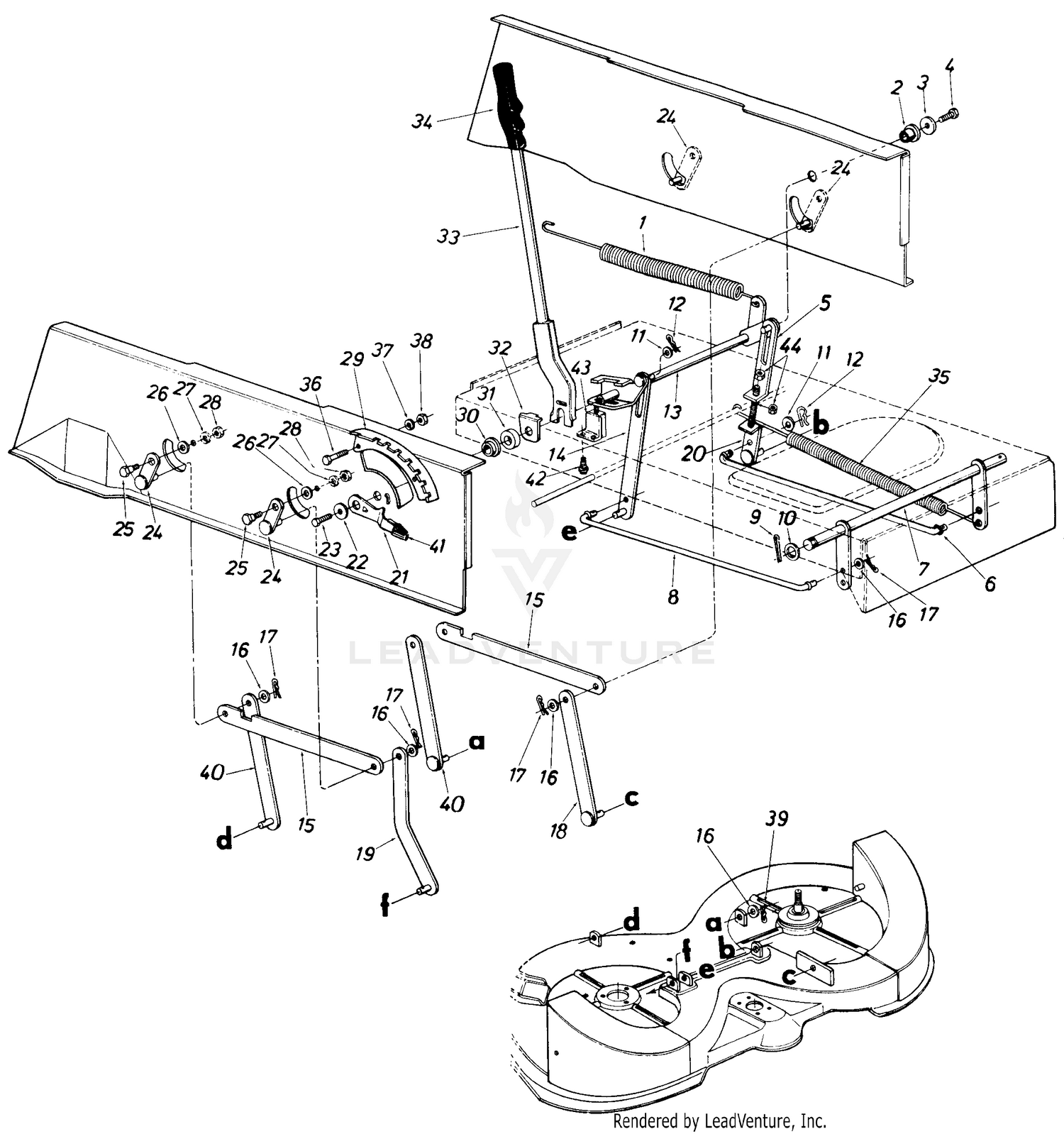

| Ref | Part Number | Description |
|---|
| 1 |
932-0307A |
EXTENSION SPRING Not Available This part replaces 732-0307. Price: |
| 2 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0313. Price: $6.87 |
| 3 |
736-0231 |
Fl-Wash. .344" I.D. x 1.125" O.D. x .125 Price: $4.02 |
| 4 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 5 |
14802A-0637 |
DECK LIFT LINK (POWDER BLACK) Not Available This part replaces 16063. Price: |
| 6 |
711-0738 |
ROD-STABILIZER Not Available Price: |
| 7 |
14647 |
STABILIZER SHAF T ASS'Y. Not Available Price: |
| 8 |
711-0738 |
ROD-STABILIZER Not Available Price: |
| 9 |
714-0470 |
Cotter Pin 1/8" Dia. x 1-1/4" Lg. Price: $3.90 |
| 10 |
736-0156 |
Fl-Wash. .635" I.D. x 1.12"O.D. Price: $3.95 |
| 11 |
736-0192 |
Fl-Wash. .531" I.D. x .940"O.D. Price: $3.75 |
| 12 |
714-0101 |
Inter. Cotter Pin .50" Dia. Price: $4.13 |
| 13 |
14641 |
LIFT SHAFT ASS'Y. Not Available Price: |
| 14 |
14802A-0637 |
DECK LIFT LINK (POWDER BLACK) Not Available This part replaces 14802. Price: |
| 15 |
09735 |
CONNECTING ROD Not Available Price: |
| 16 |
736-0300 |
Fl-Wash. .40" I.D. x .88" O.D. Price: $3.93 |
| 17 |
714-0104 |
Inter. Cotter Pin For 3/8" Rod Price: $3.90 |
| 18 |
14804 |
DECK HANGER LINK ASS'Y. Not Available Price: |
| 20 |
14802A-0637 |
DECK LIFT LINK (POWDER BLACK) Not Available This part replaces 16064. Price: |
| 21 |
732-0412 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 22 |
736-0231 |
Fl-Wash. .344" I.D. x 1.125" O.D. x .125 Price: $4.02 |
| 23 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 24 |
09721 |
LINK ASSEMBLY- Not Available Price: |
| 25 |
738-0140 |
Shld. Bolt .437" Dia. x .180" Lg. (5/16-18) Price: $4.93 |
| 26 |
736-0264 |
Fl-Wash. .344" I.D. x .62"O.D. Price: $5.99 |
| 27 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 28 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 29 |
14633 |
Index Brkt. Price: Call Us |
| 30 |
736-0341 |
FLANGE WASHER Not Available Price: |
| 31 |
735-0216 |
RUBBER WASHER Not Available Price: |
| 32 |
14654 |
Retainer Washer-Lift Handle Price: Call Us |
| 33 |
14645 |
Lift Handle Ass'y. Price: Call Us |
| 35 |
732-0410 |
SPRING Not Available Price: |
| 36 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 37 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 38 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 39 |
714-0101 |
Inter. Cotter Pin Price: $4.13 |
| 40 |
15373 |
DECK HANGER LINK ASS'Y. Not Available Price: |
| 41 |
08540 |
KNOB-HGT ADJ-BLACK Not Available Price: |
| 42 |
710-0351 |
Hex AB-Tap Scr. #10 x .50" Lg. Price: $3.90 |
| 43 |
725-0803B |
Safety Switch This part replaces 725-0803. Price: $29.83 |
