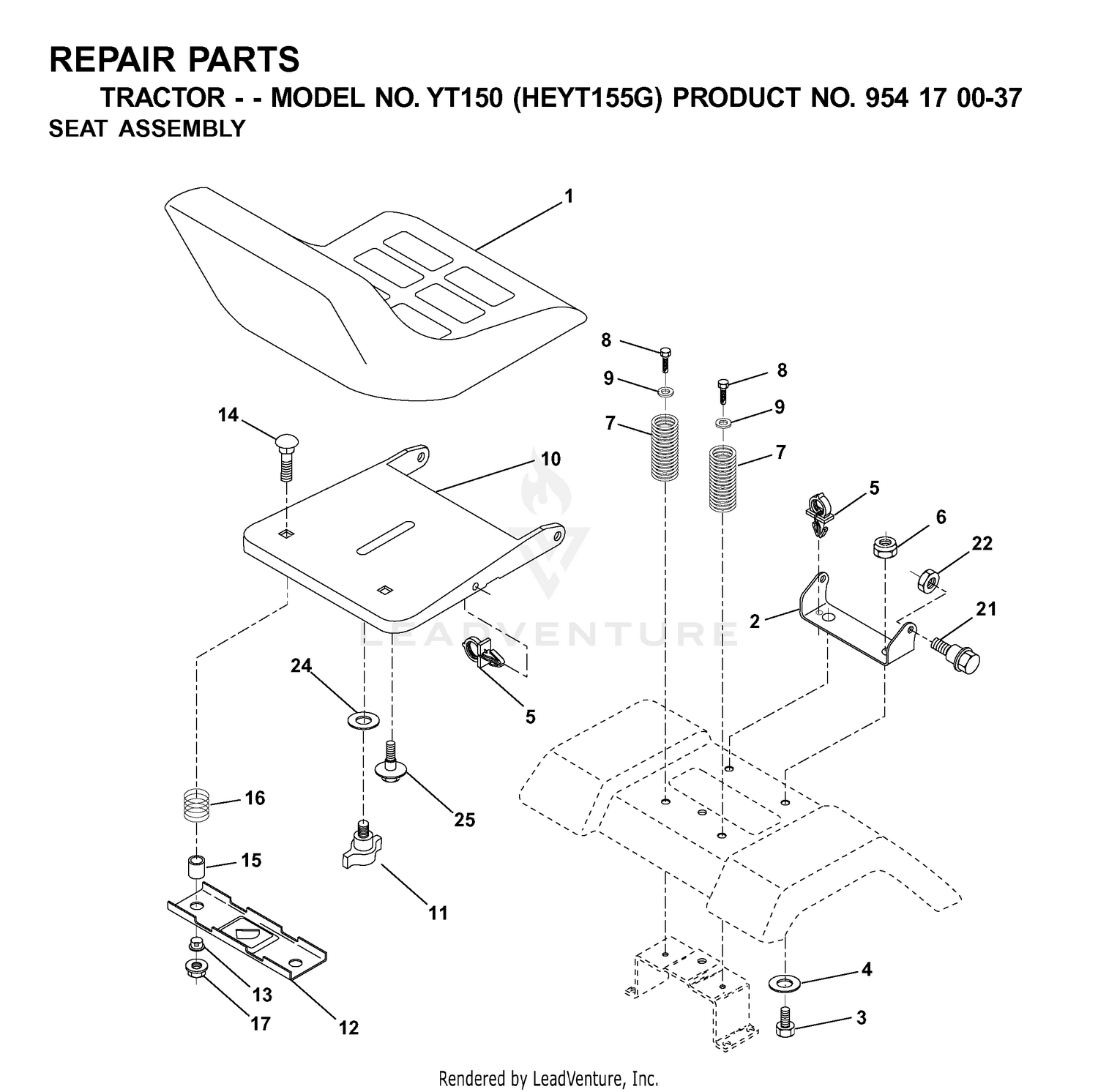

| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT Price: $273.15 |
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140839. Price: $149.99 |
| 2 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
92-8990 |
ADJUSTER-SLAVE Price: $54.82 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
92-8991 |
ADJUSTER (W/LATCH) Price: $73.04 |
| 8 |
3212-4 |
SCREW-HH Price: $2.73 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
92-6282 |
SWITCH-SEAT Price: $31.99 |
| 12 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
104-0467-03 |
STRAP-SUPPORT, SEAT Price: $165.70 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 14 |
95-8896 |
FOAM Price: $32.41 |
| 15 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
104-0466 |
SPACER-TUBE Price: $27.25 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
323-14 |
SCREW-HH Price: $1.34 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 19 |
104-4833-03 |
SHIELD-HEAT Price: $72.12 |
| 20 |
92-7307 |
LH ARMREST ASM Price: $200.08 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
92-7306 |
RH ARMREST ASM Price: $198.41 |
| 22 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
