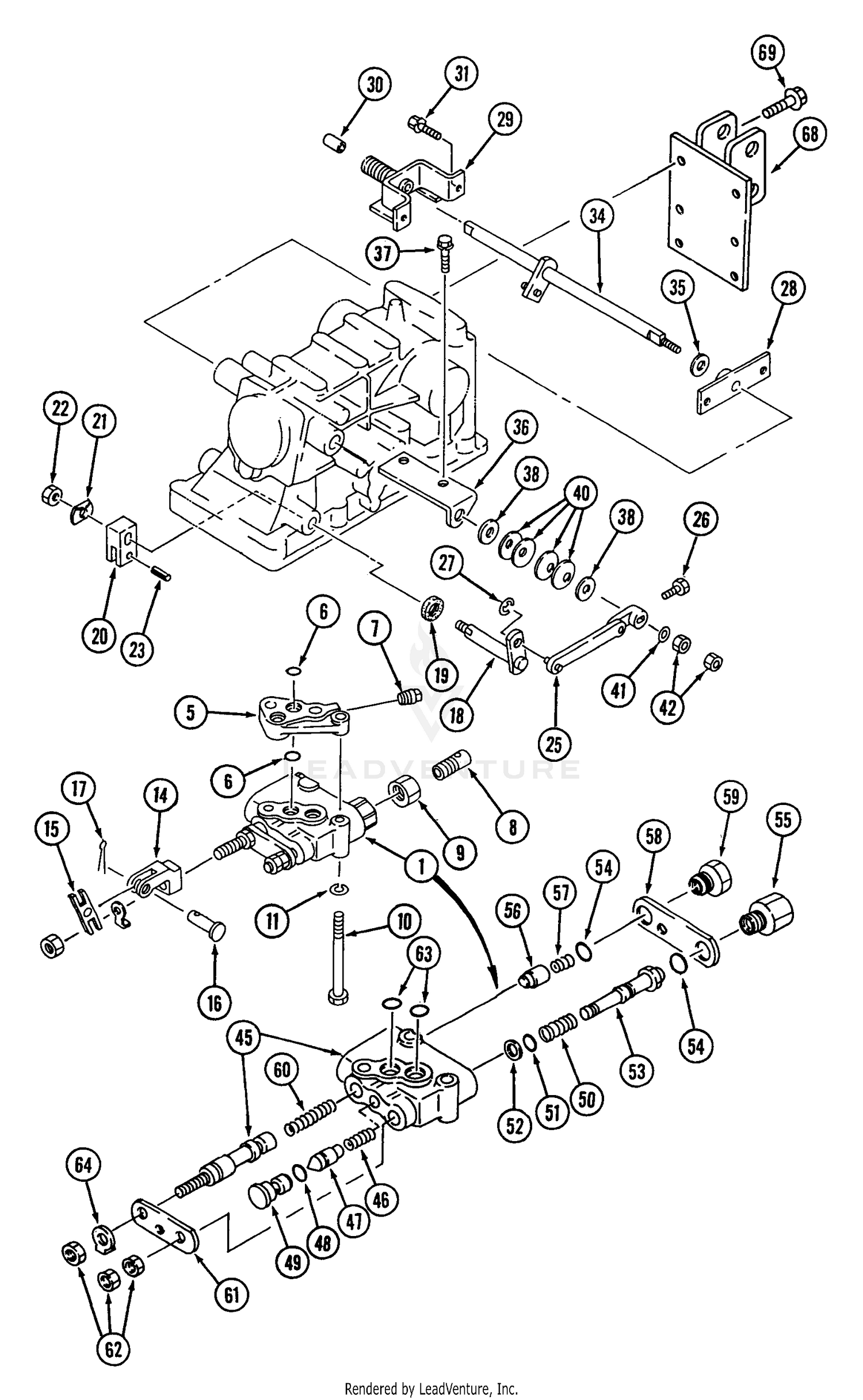

Hydraulic Lift (Part 3)
Parts (88)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 302-5 | FITTING-GREASE Price: $0.59 |
| 1 | MA-10052415000 | VALVE CONTROL Not Available Price: |
| 2 | 532137352 | MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 3 | 32152-10 | LOCKNUT Price: $0.81 |
| 4 | 70-2780 | PISTON Price: $133.22 |
| 5 | MA-10032421000 | SPACER Not Available Price: |
| 6 | MA-08301100120 | O-RING Not Available Price: |
| 7 | MA-A6000101000 | PLUG Not Available Price: |
| 8 | MA-19812403000 | PIPE Not Available Price: |
| 9 | 596501502 | Keepers This part replaces 501832601. Price: $9.99 |
| 9 | MA-A3030114002 | NUT Not Available Price: |
| 10 | 98-7353 | DISCONTINUED This part replaces 93-7990. Price: Call Us |
| 10 | MA-A0500108070 | BOLT Not Available Price: |
| 11 | 587241501 | CLUTCH.OGURA.4.4PD.GT1.5-EH13V Price: $199.99 |
| 11 | MA-A3600100802 | WASHER SPRING Not Available Price: |
| 12 | 532405097 | PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 | 75-2120 | SHAFT W/CLEVIS Price: $252.67 |
| 13 | 93-7991 | COLLAR Price: $73.29 |
| 14 | MA-10032418001 | JOINT Not Available Price: |
| 15 | 581289901 | FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 15 | MA-10032419001 | LINK,VALVE Not Available Price: |
| 16 | MA-05620106030 | PIN Not Available Price: |
| 17 | MA-05620125016 | Pin, Split Price: Call Us |
| 18 | 581075501 | CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 18 | MA-10032414000 | SHAFT-LEVER LINK Not Available Price: |
| 19 | MA-08401012227 | OIL SEAL Not Available Price: |
| 20 | 587242604 | THROTTLE CABLE This part replaces 587242601. Price: $27.99 |
| 20 | MA-10032415000 | SHIFTER,VALVE Not Available Price: |
| 21 | 596321701 | Screws This part replaces 532416358. Price: $2.99 |
| 21 | MA-11352426000 | PLATE Not Available Price: |
| 22 | MA-A3010108002 | NUT Not Available Price: |
| 23 | MA-05500008016 | SPRING PIN Not Available Price: |
| 25 | MA-19642453AG0 | LEVER ASSEMBLY Not Available Price: |
| 26 | MA-A0400106012 | BOLT Not Available Price: |
| 27 | MA-07420100600 | RING, SNAP Not Available Price: |
| 28 | 587044820 | HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 28 | MA-19642456000 | PLATE Not Available Price: |
| 29 | 532137180 | KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 | MA-19642457AG0 | Bracket Price: Call Us |
| 30 | MA-07961012120 | BUSHING Not Available Price: |
| 31 | MA-F1540108020 | BOLT,W/SPRING WASH Not Available Price: |
| 34 | MA-19652458AG0 | SHAFT Not Available Price: |
| 35 | MA-19041264000 | LINING,BRAKE Not Available Price: |
| 36 | MA-10032425AG0 | PLATE Not Available Price: |
| 37 | 532123487 | HOSE CLAMP Price: $3.99 |
| 37 | MA-F1550110020 | BOLT,W/SPRING WASH Not Available Price: |
| 38 | MA-36301208000 | LINER Not Available This part replaces MA-31212559000. Price: |
| 40 | MA-10032426000 | SPRING Not Available Price: |
| 41 | 532126197 | WASHER Price: $6.99 |
| 41 | MA-03500140818 | WASHER Not Available Price: |
| 42 | 596238901 | Washers This part replaces 810040700. Price: $2.99 |
| 42 | MA-A3010108002 | NUT Not Available Price: |
| 45 | 586668901 | NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 45 | MA-10052415110 | Body Ass'y. Price: Call Us |
| 46 | MA-19952436120 | SPRING Not Available Price: |
| 47 | MA-10032416180 | VALVE CHECK Not Available Price: |
| 48 | MA-08301100090 | O-RING Not Available Price: |
| 49 | MA-10032416190 | SEAT Not Available Price: |
| 50 | MA-11802471190 | SPRING Not Available Price: |
| 51 | MA-08300100070 | O-RING Not Available Price: |
| 52 | MA-11802471180 | RING-BACK-UP Not Available Price: |
| 53 | MA-10032416140 | POPPET Not Available Price: |
| 54 | MA-08300100150 | O-RING Not Available Price: |
| 55 | MA-10032416160 | SEAT PLUG Not Available Price: |
| 56 | MA-10032416170 | UNLOAD VALVE Not Available Price: |
| 57 | MA-11802471241 | SPRING Not Available This part replaces MA-11802471240. Price: |
| 58 | MA-69473-10711 | PLATE Not Available Price: |
| 59 | MA-10032416150 | PLUG Not Available Price: |
| 60 | MA-10052415130 | RETURN SPRING Not Available Price: |
| 61 | MA-10032416210 | PLATE Not Available Price: |
| 62 | MA-A3010108003 | NUT Not Available Price: |
| 63 | MA-08301100120 | O-RING Not Available Price: |
| 64 | MA-11802471130 | PLATE Not Available Price: |
| 68 | MA-19632442AG0 | BRACKET TOPLINK Not Available Price: |
| 69 | 532272293 | GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 | 596134201 | Screws This part replaces 532192334. Price: $2.99 |
| 81 | 532148456 | TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 | 532428287 | VALUE.OIL.DRAIN Price: $14.99 |
| 84 | 817060620 | SCREW.3/8-16 Price: $5.99 |
| 85 | 581332804 | CLUTCH BOLT7/16-20X3.5 GR524HR Price: $6.99 |
| 90 | 817000616 | SCREW 3/8-16X1 Price: $5.99 |
| 96 | 596135301 | Washers This part replaces 819091416. Price: $2.99 |
| 102 | 532428867 | BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 105 | 501267202 | SHIELD.SIDE.LH.3842"TEX FRN.BK Price: $12.99 |
| 106 | 501268202 | SHIELD.SIDE.LH.3842"TEX FRN.BK Price: $11.99 |
| 108 | 587179509 | COVER ENGINE PULLEY COVER WITH This part replaces 587179501. Price: $69.99 |
| 115 | 532431761 | RETAINER Price: $3.99 |
| 136 | 596434001 | Screws This part replaces 532421756. Price: $2.99 |
