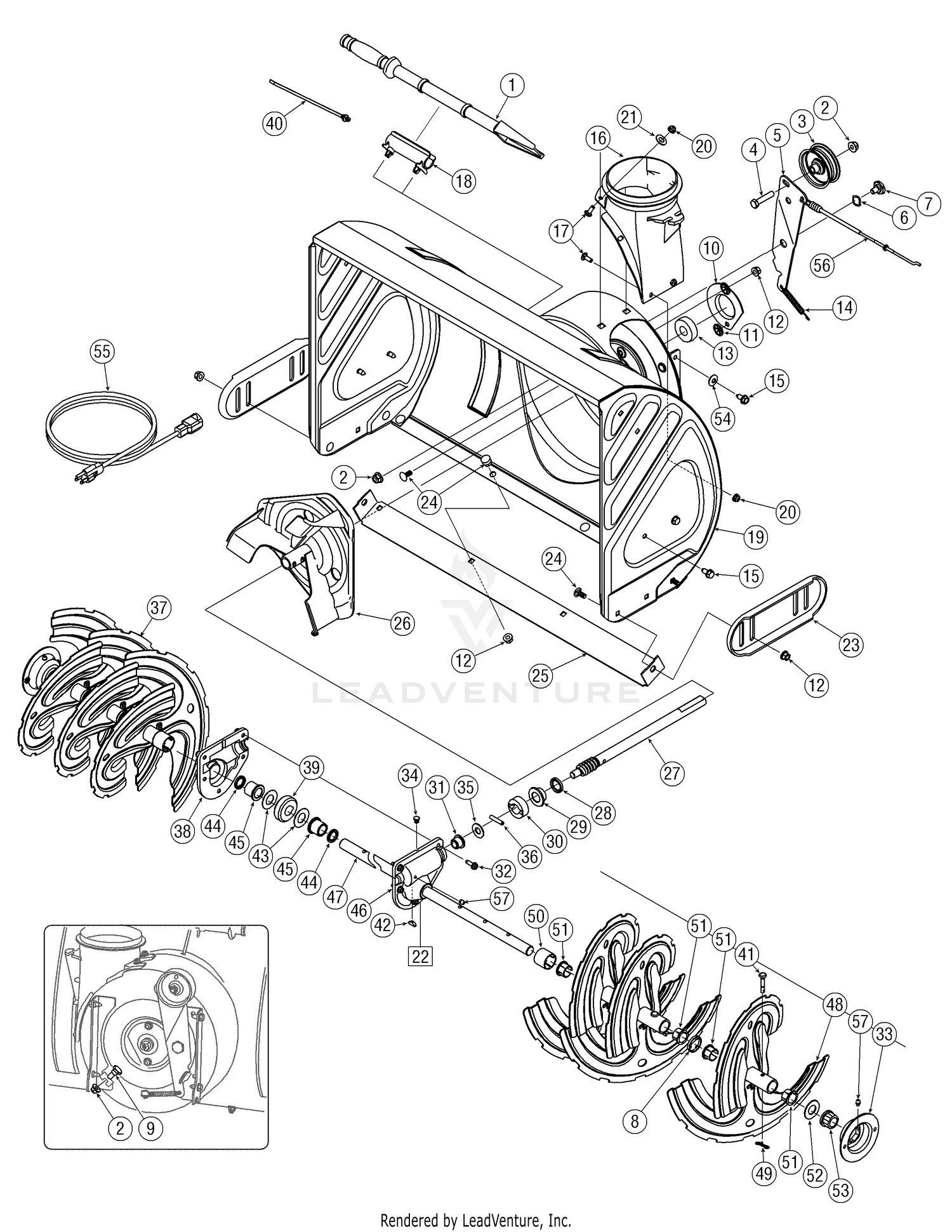

| Ref | Part Number | Description |
|---|
| 1 |
931-2643 |
Chute Cleanout Tool This part replaces 731-2643. Price: $16.68 |
| 2 |
712-04065 |
Flange Lock Nut Price: $3.68 |
| 3 |
756-04224 |
Idler Pulley, 2.75 OD This part replaces 756-0981A. Price: $24.80 |
| 4 |
710-0347 |
Hex Bolt, 3/8-16 x 1.75 Price: $4.39 |
| 5 |
790-00080D |
AUGER IDLER BRACKET This part replaces 790-00080. Price: $25.44 |
| 6 |
736-0174 |
Wave Washer Price: $5.94 |
| 7 |
738-0281 |
Shoulder Screw Price: $9.16 |
| 8 |
731-04871 |
Spacer Price: $5.94 |
| 9 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 10 |
790-00075B |
BEARING HOUSING 1.85 ID This part replaces 790-00075. Price: $5.66 |
| 11 |
726-04012 |
Push Nut Price: $6.20 |
| 12 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 13 |
941-0309 |
Flange Ball Bearing, .75 x 1.85 This part replaces 741-0309. Price: $69.59 |
| 14 |
932-0611 |
Extension Spring, .38 OD x 3.6 This part replaces 732-0611. Price: $6.92 |
| 15 |
710-0604A |
AB Screw, 5/16-18 x 0.625 Price: $3.96 |
| 16 |
731-04705D |
CHUTE ADAPTER This part replaces 731-04705. Price: $23.30 |
| 17 |
710-0703 |
Carriage Screw, 1/4-20 x 0.75 Price: $3.66 |
| 18 |
731-11421 |
Cleanout Tool Mount This part replaces 731-2635. Price: $9.83 |
| 20 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 21 |
736-0463 |
Flat Washer Price: $3.91 |
| 22 |
918-04165B |
Auger Gearbox 30", includes 38-52 This part replaces 618-04194. Price: $392.88 |
| 23 |
790-00091 |
Slide Shoe Price: $25.06 |
| 24 |
710-0451 |
Carriage Bolt Price: $3.53 |
| 25 |
790-00119 |
Shave Plate Price: $30.96 |
| 26 |
684-04057C-0637 |
IMPELLER ASSEMBLY-12" This part replaces 684-04057. Price: $64.81 |
| 27 |
917-04126 |
WORM SHAFT This part replaces 717-04126. Price: $69.83 |
| 28 |
721-0327 |
Oil Seal Price: $6.10 |
| 29 |
741-0662 |
Flange Bearing Price: $9.52 |
| 30 |
718-04071 |
Thrust Collar Price: $6.73 |
| 31 |
741-0663 |
Flange Bearing Price: $8.86 |
| 32 |
710-0642 |
TT Screw, 1/4-20 x 0.75 Price: $4.05 |
| 33 |
790-00138A-0637 |
BEARING HOUSING 1" HEX Not Available This part replaces 790-00138A. Price: |
| 34 |
721-0325 |
Plug Price: $3.82 |
| 35 |
736-3084 |
Flat Washer Price: $4.39 |
| 36 |
715-04021 |
Dowel Pin Price: $3.68 |
| 37 |
684-04108A |
AUGER SPIRAL (RH) This part replaces 684-04108. Price: $67.28 |
| 38 |
918-0123A |
REDUCER HOUSING ASSEMBLY (RH) This part replaces 618-0123. Price: $46.04 |
| 39 |
917-04861 |
WORM GEAR 20T This part replaces 717-0528A. Price: $37.82 |
| 40 |
725-0157 |
Cable Tie Price: $3.46 |
| 41 |
738-04124A |
Shear Pin Price: $1.56 |
| 42 |
914-0161 |
KEY 3/16 x 5/8 H This part replaces 714-0161. Price: $3.82 |
| 43 |
736-0351 |
Flat Washer Price: $3.93 |
| 44 |
721-0179 |
Oil Seal Price: $7.48 |
| 45 |
741-0661B |
FLANGE BEARING This part replaces 741-0661A. Price: $9.78 |
| 46 |
918-0124A |
REDUCER HOUSING ASSEMBLY (LH) This part replaces 618-0124. Price: $45.91 |
| 47 |
711-04282A |
Auger Axle, 30" This part replaces 711-04282. Price: $98.99 |
| 48 |
684-04107A |
AUGER SPIRAL (LH) This part replaces 684-04107. Price: $63.62 |
| 49 |
714-04040 |
Bow Tie Cotter Pin Price: $1.28 |
| 50 |
731-04870 |
Spacer Price: $4.06 |
| 51 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 52 |
736-0188 |
Flat Washer Price: $3.75 |
| 53 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 54 |
736-0242 |
Bell Washer Price: $3.75 |
| 56 |
946-04230B |
AUGER DRIVE CABLE 47.48" This part replaces 746-04230. Price: $21.53 |
