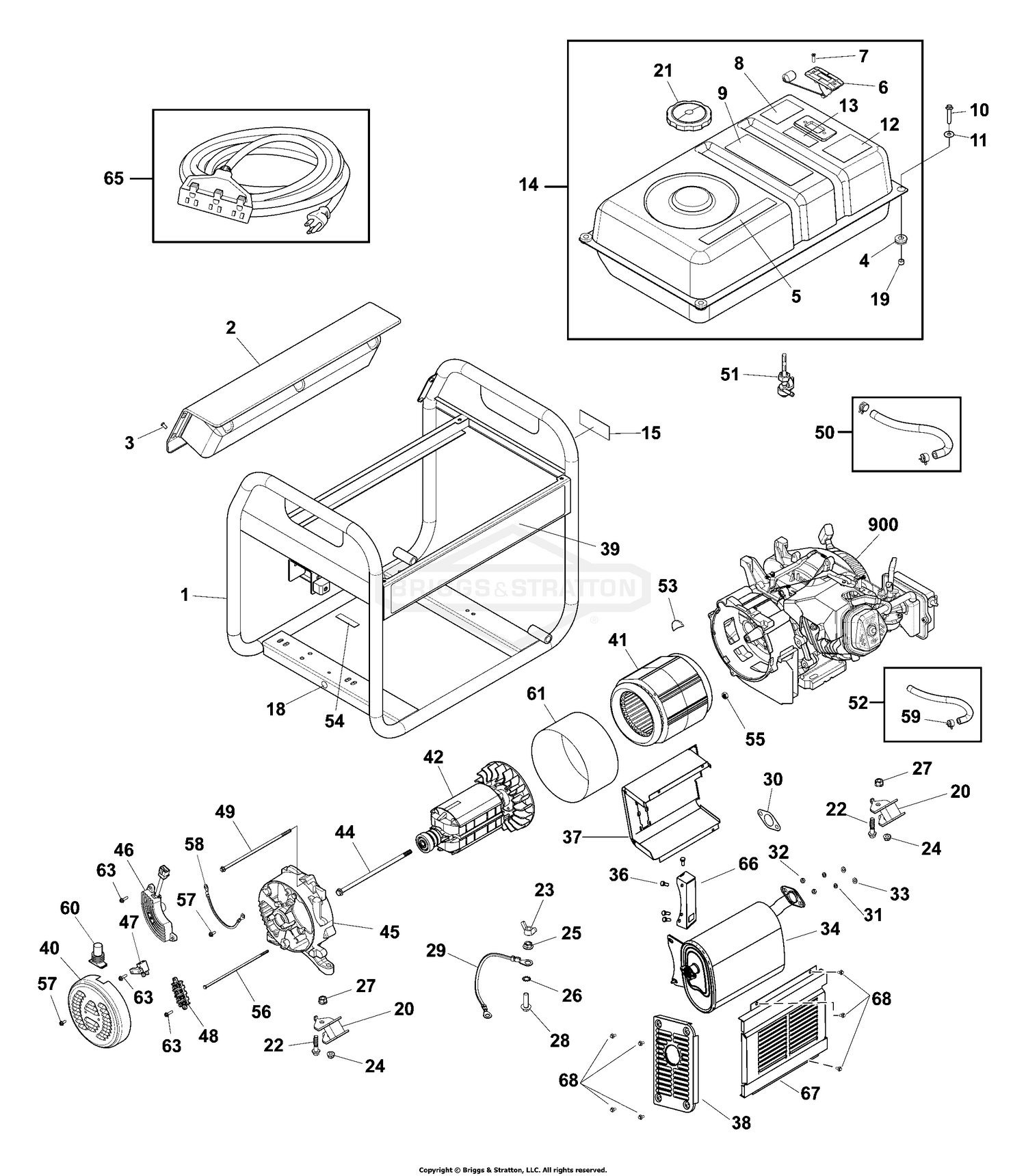

| Ref | Part Number | Description |
|---|
| 2 |
REF-80098725 |
Refer to: Control Panel Group Price: Call Us |
| 3 |
772229 |
SCREW Price: $3.17 |
| 4 |
189134GS |
GROMMET, Rubber Price: $3.73 |
| 5 |
772237 |
DECAL Price: $8.15 |
| 6 |
704183 |
GAUGE-FUEL Price: $15.07 |
| 7 |
314440GS |
SCREW Price: $3.61 |
| 8 |
772233 |
DECAL Price: $7.59 |
| 9 |
772234 |
DECAL Price: $8.68 |
| 10 |
703805 |
SCREW Price: $8.89 |
| 11 |
312005GS |
WASHER Price: $3.09 |
| 12 |
202997GS |
DECAL, Warning, CO Price: $12.80 |
| 13 |
703264 |
DECAL Price: $15.53 |
| 14 |
772227 |
TANK-FUEL Price: $368.60 |
| 15 |
772236 |
DECAL Price: $8.47 |
| 18 |
704331 |
DECAL Price: $8.79 |
| 19 |
189137GS |
SPACER Price: $3.59 |
| 20 |
708877 |
MOUNT-VIBRATION Price: $11.33 |
| 21 |
319587GS |
CAP-FUEL Price: $18.25 |
| 22 |
709939 |
BOLT Price: $3.28 |
| 23 |
87680GS |
NUT, M6 - 1.0 Wing Price: $6.57 |
| 24 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 25 |
52857GS |
NUT-M6 FLANGE Price: $3.06 |
| 26 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 27 |
709938 |
NUT-M10 FLANGE LOCK Price: $5.82 |
| 28 |
797686 |
SCREW This part replaces 706355. Price: $3.81 |
| 29 |
706165 |
WIRE Price: $7.09 |
| 30 |
704853 |
GASKET-MUFFLER Price: $3.85 |
| 32 |
45771GS |
NUT, M8 - 1.25 Price: $5.88 |
| 33 |
703350 |
WASHER This part replaces 22145GS. Price: $3.72 |
| 34 |
84007307 |
MUFFLER Price: Call Us |
| 36 |
703988 |
CAPSCREW M8-1.25X16 This part replaces 39253GS. Price: $2.86 |
| 37 |
84007309 |
HEATSHIELD, Rear Price: Call Us |
| 38 |
84007310 |
HEATSHIELD, End Price: Call Us |
| 39 |
772231 |
DECAL Price: $12.50 |
| 40 |
312870GS |
COVER, Rear Bearing Price: $11.55 |
| 41 |
84002216 |
STATOR Price: $227.36 |
| 42 |
84002220 |
ROTOR Price: $229.66 |
| 44 |
84002232 |
BOLT Price: $8.95 |
| 45 |
312866GS |
SUPPORT, Bearing Price: $71.44 |
| 46 |
312871GS |
REGULATOR-VOLTAGE Price: $55.57 |
| 47 |
704915 |
BRUSH ASSY Price: $6.34 |
| 48 |
705783 |
TERMINAL BLOCK Price: $3.52 |
| 49 |
84002219 |
BOLT Price: $5.73 |
| 50 |
791745 |
LINE, Fuel Price: $8.97 |
| 51 |
209417GS |
VALVE, Fuel Price: $7.75 |
| 52 |
315017GS |
HOSE, Vapor (cut to fit) Price: $26.64 |
| 53 |
705771 |
GUARD-RUBBER Price: $3.91 |
| 54 |
706535 |
PAD-RUBBER Price: $3.69 |
| 55 |
709931 |
NUT Price: $2.85 |
| 56 |
84002218 |
BOLT Price: $9.62 |
| 57 |
709935 |
SCREW Price: $3.28 |
| 58 |
706150 |
WIRE Price: $5.93 |
| 59 |
314955GS |
CLAMP Price: $4.19 |
| 60 |
207879GS |
BOOT, Rubber Price: $6.22 |
| 61 |
84002217 |
BAND Price: $25.64 |
| 63 |
84003179 |
SCREW Price: $2.11 |
| 65 |
771800 |
CORDSET Price: $58.97 |
| 66 |
84007363 |
BRACKET, Muffler Price: Call Us |
| 67 |
84007310 |
HEATSHIELD, End Price: Call Us |
| 68 |
590850 |
SCREW This part replaces 706152. Price: $3.02 |
