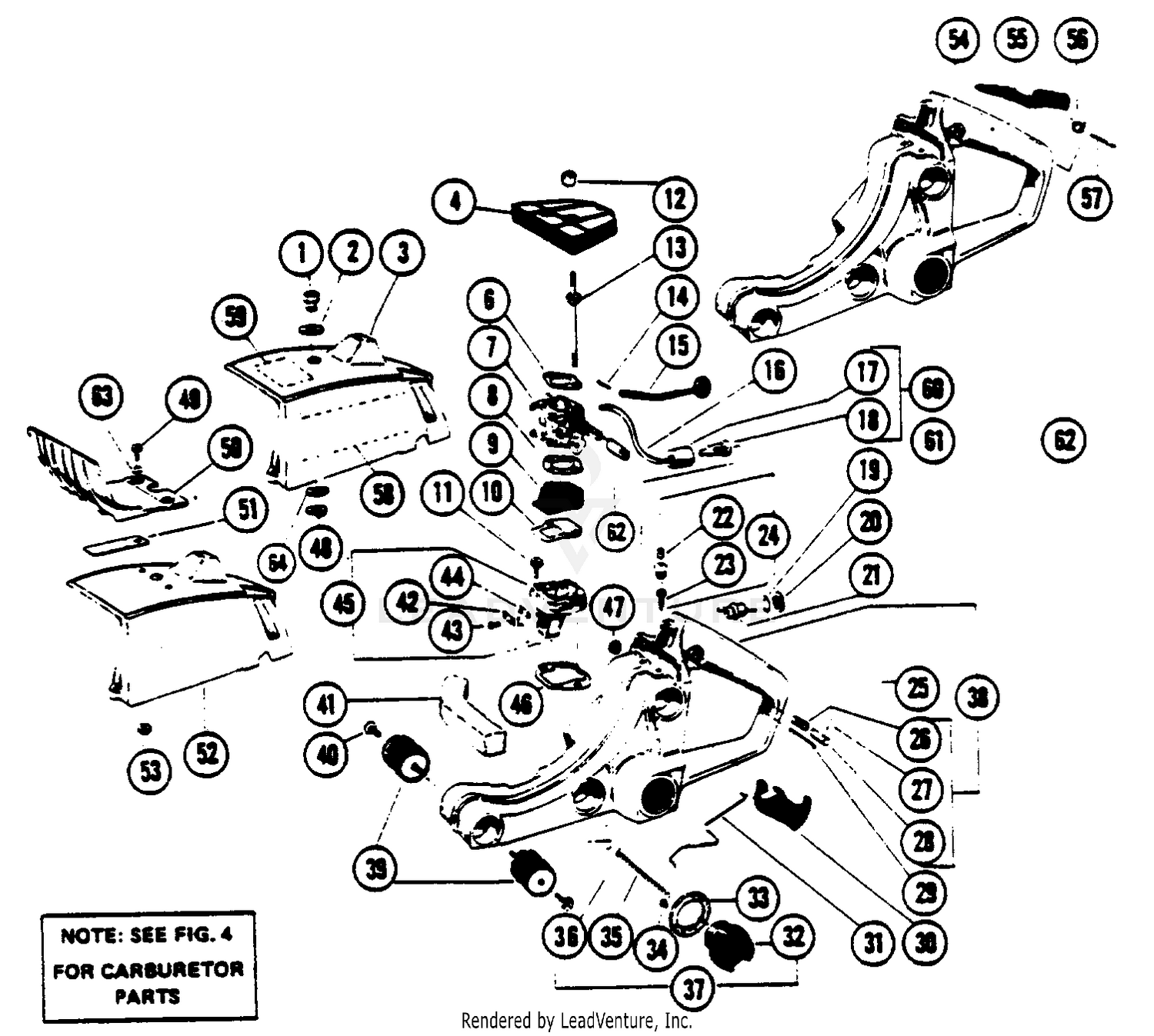

| Ref | Part Number | Description |
|---|
| 1 |
3-8089 |
DISCONTINUED Price: Call Us |
| 1 |
530015286 |
Nut - Cylinder Cover Price: $3.33 |
| 2 |
3-6880 |
DISCONTINUED Price: Call Us |
| 2 |
530015051 |
Washer - Cylinder Cover Nut Price: $3.33 |
| 3 |
3-8069 |
DISCONTINUED Price: Call Us |
| 3 |
530011531 |
Cover - Cylinder Price: $3.33 |
| 4 |
3-5217 |
BEDKNIFE Price: $120.72 |
| 4 |
530010247 |
Air Filter - Assy. Price: $3.33 |
| 4A |
530010527 |
Winter Filter Price: $3.33 |
| 5 |
5-1921 |
DISCONTINUED Price: Call Us |
| 6 |
3-6870 |
DISCONTINUED Price: Call Us |
| 6 |
530023664 |
Plate - Air Filter Price: $1.99 |
| 7 |
3254-4 |
WASHER-LOCK/INT Price: $0.34 |
| 7 |
530034096 |
Carburetor Ass'y. (Model 4200) Price: $3.33 |
| 8 |
3-4754 |
DISCONTINUED Price: Call Us |
| 8 |
530019082 |
Gasket - Carburetor Included in Gasket Kit 69025 Price: $1.72 |
| 9 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 9 |
530023654 |
Adaptor - Carburetor Price: $3.33 |
| 10 |
5-1902 |
DISCONTINUED Price: Call Us |
| 10 |
530019083 |
Gasket - Carburetor Adaptor Included in Gasket Kit 69025 Price: $1.99 |
| 11 |
119-4162 |
SCREW-CARR This part replaces 3231-3. Price: $1.73 |
| 11 |
530015038 |
Screw - 10-24 x 3/4 Price: $1.99 |
| 12 |
5-1850 |
DISCONTINUED Price: Call Us |
| 12 |
530023696 |
Nut - Air Filter Price: $3.33 |
| 13 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 13 |
530015204 |
Stud - Carburetor Price: $3.33 |
| 14 |
3-8109 |
DISCONTINUED Price: Call Us |
| 14 |
530015154 |
Cotter Pin - Choke Rod Price: $3.33 |
| 15 |
5-1903 |
DISCONTINUED Price: Call Us |
| 15 |
530023648 |
Choke Rod Price: $5.99 |
| 16 |
530021022 |
Line - Fuel Pick-up (Bulk No. 8136) Price: $1.16 |
| 17 |
5-1751 |
DISCONTINUED Price: Call Us |
| 17 |
530034032 |
Filter - Fuel (Felt) Price: $3.33 |
| 18 |
5-1926 |
DISCONTINUED Price: Call Us |
| 18 |
530034104 |
Weight - Fuel Pick-up (includes 17) Price: $2.99 |
| 19 |
3-6615 |
SPECIAL SCREW Price: $11.08 |
| 19 |
530015214 |
Lockwasher - Switch Mounting Price: $3.33 |
| 20 |
3-6465 |
UPPER KNIFEBAR WASHER Price: $20.41 |
| 20 |
530002582 |
Switch- Plate and Nut This part replaces 530023575. Price: $6.69 |
| 21 |
3-6464 |
DISCONTINUED Price: $2.00 |
| 21 |
530023732 |
Switch - Ignition Price: $3.33 |
| 22 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 22 |
530023293 |
Filter - Fuel Tank Vent Price: $1.99 |
| 23 |
3217-7 |
NUT-HEX Price: $0.28 |
| 23 |
530023166 |
Check Valve - Fuel Tank Vent Price: $3.33 |
| 24 |
3220-7 |
NUT-JAM Price: $4.09 |
| 24 |
530010169 |
Vent Ass'y. - Fuel Tank (includes 22 & 23) Price: $3.33 |
| 25 |
3220-6 |
NUT-JAM Price: $1.25 |
| 25 |
530023705 |
Decal - Starting Instructions Price: $3.33 |
| 26 |
5-1920 |
DISCONTINUED Price: Call Us |
| 26 |
530023681 |
Spring - Throttle Lock Button Price: $3.33 |
| 27 |
5-1915 |
DISCONTINUED Price: Call Us |
| 27 |
530015215 |
Pin - Lock Button Price: $3.33 |
| 28 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 28 |
530023679 |
Button - Throttle Lock Price: $3.33 |
| 29 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 29 |
530015008 |
Pin - Trigger Shaft Price: $3.33 |
| 30 |
3210-3 |
SCREW-HH Price: $5.29 |
| 30 |
530023658 |
Trigger - Throttle Price: $3.33 |
| 31 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 31 |
530023685 |
Rod - Throttle Price: $3.33 |
| 32 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 32 |
530023646 |
Fuel Cap Price: $3.33 |
| 33 |
5-1922 |
DISCONTINUED Price: Call Us |
| 33 |
530019077 |
Gasket - Fuel Cap Included in Gasket Kit 69025 Price: $3.33 |
| 34 |
3-8189 |
DISCONTINUED Price: Call Us |
| 34 |
530625712 |
Screw - 8-32 x 3/8 5200 Only Price: $1.99 |
| 35 |
5-1917 |
DISCONTINUED Price: Call Us |
| 35 |
530023653 |
Chain - Fuel Cap 5200 Only Price: $0.24 |
| 36 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 36 |
530023657 |
Retainer - Fuel Cap Chain 5200 Only Price: $0.16 |
| 37 |
5-1798 |
DISCONTINUED Price: Call Us |
| 37 |
530010171 |
Fuel Cap Ass'y. 5200 Only (includes 32, 33, 34, 35 & 36) Price: $3.33 |
| 38 |
3-4614 |
DISCONTINUED Price: Call Us |
| 38 |
530010201 |
Fuel Tank & Handle Ass'y. (includes 26, 27 & 28) Price: $3.33 |
| 39 |
3-4616 |
DISCONTINUED Price: Call Us |
| 39 |
530024056 |
Vibration Isolator Price: $3.33 |
| 40 |
253-103 |
DISCONTINUED Price: Call Us |
| 40 |
530016141 |
Screw This part replaces 530015036. Price: $1.99 |
| 41 |
251-8 |
BEARING-BALL Price: $30.06 |
| 41 |
530023692 |
Seal - Sawdust Included in Gasket Kit 69025 Price: $0.72 |
| 42 |
530002580 |
Stop - Reed Price: $3.33 |
| 43 |
3-4615 |
DISCONTINUED Price: Call Us |
| 43 |
530001713 |
Screw - 4-40 x 1/8 pan head Price: $3.33 |
| 44 |
5-1846 |
DISCONTINUED Price: Call Us |
| 44 |
530023643 |
Reed Price: $1.99 |
| 45 |
5-1918 |
DISCONTINUED Price: Call Us |
| 45 |
530010172 |
Reed Valve Ass'y. (includes 42, 43 & 44) Price: $3.33 |
| 46 |
5-1928 |
DISCONTINUED Price: Call Us |
| 46 |
530019086 |
Gasket - Reed Valve Included in Gasket Kit 69025 Price: $1.99 |
| 47 |
3-5390 |
DISCONTINUED Price: Call Us |
| 47 |
530023665 |
Grommet - Choke Rod Included in Gasket Kit 69025 Price: $1.99 |
| 48 |
3210-4 |
SCREW-HH Price: $0.81 |
| 48 |
530015223 |
Retaining Ring - Cylinder Cover Price: $3.33 |
| 49 |
5-1931 |
DISCONTINUED Price: Call Us |
| 49 |
530015216 |
Screw - Hand Guard OPTIONAL Price: $3.33 |
| 50 |
5-1930 |
DISCONTINUED Price: Call Us |
| 50 |
530090186 |
Hand Guard OPTIONAL Price: $3.33 |
| 51 |
3210-9 |
SCREW-HH Price: $0.61 |
| 51 |
530090196 |
Spring - Hand Guard OPTIONAL Price: $3.33 |
| 52 |
5-1925 |
DISCONTINUED Price: Call Us |
| 52 |
530011532 |
Cyl. Cover (for Hand Guard) OPTIONAL Price: $3.33 |
| 53 |
5-1924 |
DISCONTINUED Price: Call Us |
| 53 |
530403094 |
Nut This part replaces 530015217. Price: $1.99 |
| 54 |
5-1905 |
DISCONTINUED Price: Call Us |
| 54 |
530010201 |
Fuel Tank & Handle Ass'y. OPTIONAL (includes 26, 27, 28, 55, 56 & 57) Price: $3.33 |
| 55 |
5-1906 |
DISCONTINUED Price: Call Us |
| 55 |
530023671 |
Lever - Throttle Lock-Out Price: $3.33 |
| 56 |
5-1848 |
DISCONTINUED Price: Call Us |
| 56 |
530023687 |
Spring - Throttle Lock-out Price: $3.33 |
| 57 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 57 |
530015102 |
Pin - Throttle Lock-out Price: $3.33 |
| 58 |
3210-1 |
SCREW-HH Price: $6.29 |
| 58 |
530023985 |
Decal - Cvl. Cover, Side (5200 only) Price: $3.33 |
| 59 |
5-1938 |
DISCONTINUED Price: Call Us |
| 59 |
530023986 |
Decal - Cvl. Cover, top (5200 only) Price: $0.28 |
| 60 |
3210-5 |
SCREW-HH Price: $0.54 |
| 60 |
530034114 |
Fuel Pick-up Ass'y. (5200 only) Price: $3.33 |
| 61 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 61 |
530028427 |
Fuel Line & Filter Ass'y. (5200 only) Includes Item No. 60 Price: $3.33 |
| 62 |
3219-2 |
NUT-HEX Price: $0.37 |
| 62 |
530024003 |
Grommet - Carb. Adj. Screws Price: $3.33 |
| 63 |
2830-8 |
DISCONTINUED Price: Call Us |
| 63 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 64 |
5-1927 |
DISCONTINUED Price: Call Us |
| 65 |
329-2 |
SCREW-HH Price: $3.68 |
| 66 |
5-1923 |
DISCONTINUED Price: Call Us |
| 67 |
5-1901 |
DISCONTINUED Price: Call Us |
| 530034111 |
Carburetor |
Ass'y. (Model 5200) Price: $3.33 530034111 |
