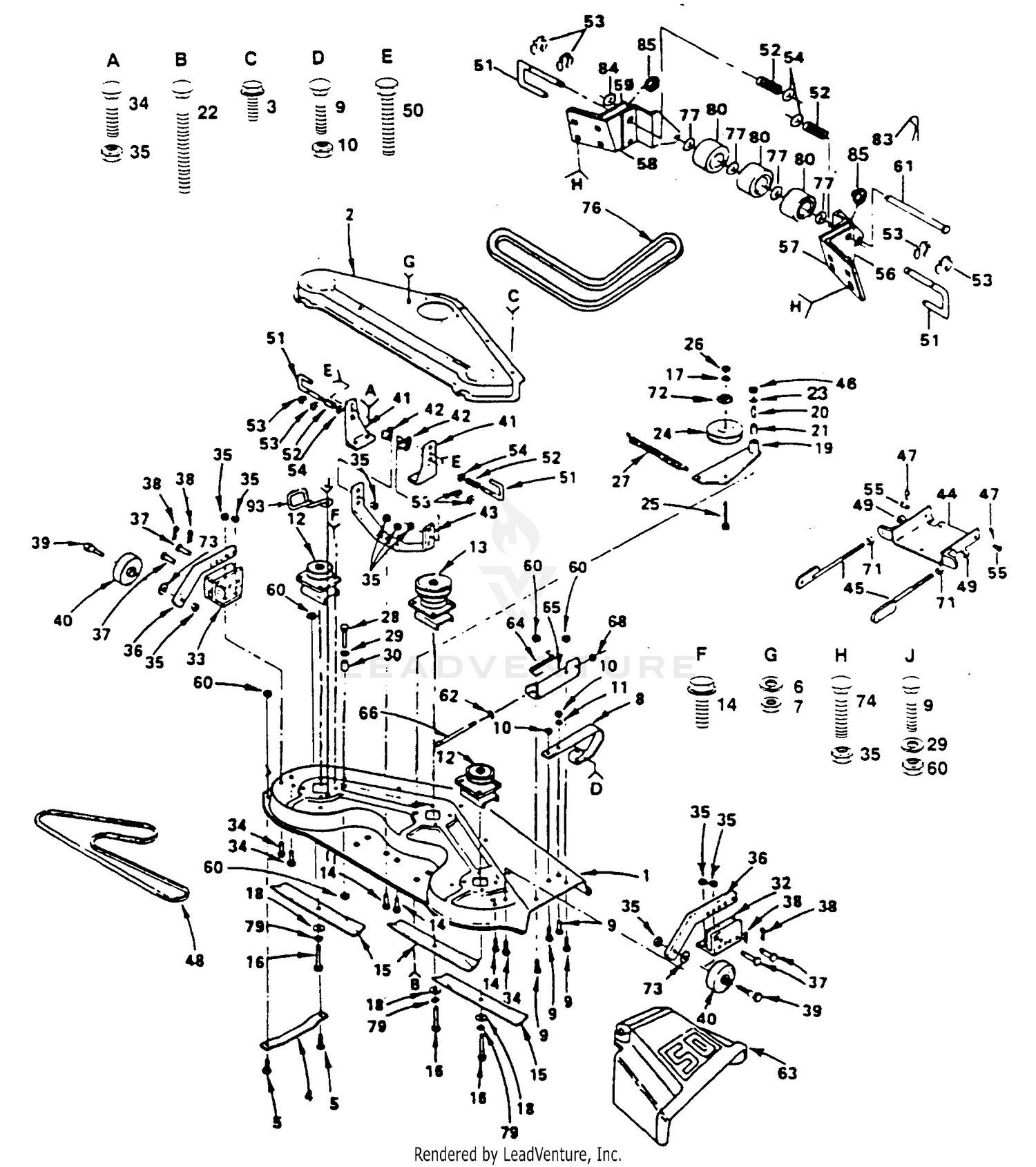

| Ref | Part Number | Description |
|---|
| 1 |
353-481 |
LIFT CHECK ASM Price: $338.44 |
| 1 |
532123760 |
MOWER HOUSING This part replaces 532121664. Price: $302.55 |
| 2 |
237-54 |
O-RING Price: $1.97 |
| 2 |
532121811 |
Cover, Drive, Deck (AYP part number) Price: $74.99 |
| 3 |
353-306 |
WASHER-BACKUP Price: $9.12 |
| 3 |
817490508 |
Screw, Hex Washer Thd. Roll 5/16-18 x 1/2 (AYP part number) Price: $3.99 |
| 4 |
353-305 |
O-RING Price: $10.91 |
| 4 |
532007631 |
Runner, Mower LH (AYP part number) This part replaces 532125074. Price: $11.99 |
| 5 |
353-303 |
WASHER-BACKUP Price: $9.06 |
| 5 |
872110505 |
Bolt, Carraige 5/16-18 x 5/8 (AYP part number) Price: $3.99 |
| 6 |
353-302 |
O-RING Price: $10.13 |
| 6 |
810040500 |
Washer, Lock 5/16 (AYP part number) Price: $2.99 |
| 7 |
873220500 |
Nut, Hex 5/16-18 (AYP part number) Price: $3.99 |
| 8 |
532136320 |
Runner, RH (AYP part number) This part replaces 532120449. Price: $7.99 |
| 9 |
353-531 |
POPPET AND RING ASM Price: $229.51 |
| 9 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 10 |
353-328 |
SHIM (.040) Price: $3.53 |
| 10 |
532124949 |
Locknut 5/16-18 (AYP part number) Price: $3.99 |
| 11 |
353-329 |
SHIM (.020) Price: $2.10 |
| 11 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 12 |
353-330 |
SHIM (.010) Price: $3.60 |
| 12 |
532121622 |
Mandrel, Secondarv (AYP part number) Price: $3.33 |
| 13 |
532121657 |
Mandrel, Primary (AYP part number) This part replaces 532121617. Price: $89.99 |
| 14 |
353-334 |
CAP-RELIEF Price: $55.48 |
| 14 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 15 |
353-392 |
RING-PISTON Price: $13.94 |
| 15 |
532121798 |
Blade Price: $17.99 |
| 16 |
353-575 |
BOOT Price: $58.68 |
| 16 |
874610624 |
Bolt, Hex 3/8-24 x 1-1/2 Gr. 5 (AYP part number) Price: $3.99 |
| 17 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 17 |
93-3651 |
RETAINER-BOOT This part replaces 353-560. Price: $31.38 |
| 18 |
819132012 |
Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number) Price: $2.99 |
| 19 |
532124685 |
Arm Assembly, Idler (AYP part number) Price: $9.99 |
| 20 |
532124702 |
Liner, Bearing (AYP part number) Price: $17.99 |
| 21 |
532007835 |
Bearing (AYP part number) Price: $17.99 |
| 21 |
93-3651 |
RETAINER-BOOT This part replaces 353-559. Price: $31.38 |
| 22 |
872110522 |
Bolt, Carriage 5/16-18 x 2-3/4 (AYP part number) Price: $2.99 |
| 23 |
3258-2 |
SCREW Price: $0.40 |
| 23 |
819111816 |
Washer 11/32 x 1-1/8 x 16 Ga. (AYP part number) Price: Call Us |
| 24 |
353-301 |
CHECK-LIFT, POPPET Price: $23.96 |
| 24 |
532102403 |
Pulley, Idler (AYP part number) Price: $22.99 |
| 25 |
353-304 |
SPRING-CHECK, LIFT This part replaces 353-482. Price: $25.31 |
| 25 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 26 |
353-331 |
O-RING Price: $16.66 |
| 26 |
873220600 |
Nut, Hex 3/8-16 (AYP part number) Price: $3.99 |
| 27 |
353-336 |
DISCONTINUED Price: Call Us |
| 27 |
532104361 |
Spring (AYP part number) Price: $3.65 |
| 28 |
353-391 |
DISCONTINUED Price: Call Us |
| 28 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD This part replaces 874780520. Price: $2.99 |
| 29 |
353-332 |
DISCONTINUED Price: Call Us |
| 29 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 30 |
32153-11 |
NUT-LOCK This part replaces 353-343. Price: $3.99 |
| 30 |
532008438 |
Spacer, Split (AYP part number) Price: $2.99 |
| 31 |
353-772 |
COVER-LEFT This part replaces 353-669. Price: $415.33 |
| 32 |
532105448 |
Bracket, Ga. Wheel, R.H. (AYP part number) Price: $10.51 |
| 33 |
532105449 |
Bracket, Ga. Wheel, L. H. (AYP part number) Price: $10.51 |
| 34 |
872240606 |
Bolt, Carriage 3/8-16 x 3/4 (AYP part number) Price: $2.99 |
| 35 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 36 |
353-417 |
COLLAR-STOP Price: $10.31 |
| 36 |
532105453 |
Bar, Ga. Wheel (AYP part number) Price: $14.99 |
| 37 |
353-530 |
DISCONTINUED Price: Call Us |
| 37 |
532139031 |
Pin, Clevis (AYP part number) This part replaces 532005565. Price: $3.99 |
| 38 |
353-780 |
DETENT ASM This part replaces 353-580. Price: $480.94 |
| 38 |
532124670 |
Retainer, Spring (AYP part number) Price: $5.99 |
| 39 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
432124842 |
Bolt, Shoulder (AYP part number) Price: Call Us |
| 40 |
353-780 |
DETENT ASM This part replaces 353-584. Price: $480.94 |
| 40 |
532105455 |
Wheel, Gauge (AYP part number) Price: $11.99 |
| 41 |
52-5900 |
SCREW This part replaces 353-315. Price: $26.40 |
| 41 |
532105433 |
Bracket, Suspension (AYP part number) Price: $4.99 |
| 42 |
353-780 |
DETENT ASM This part replaces 353-639. Price: $480.94 |
| 42 |
532110237 |
Spacer (AYP part number) Price: $3.99 |
| 43 |
353-780 |
DETENT ASM This part replaces 353-577. Price: $480.94 |
| 43 |
532105434 |
Brace, Suspension (AYP part number) Price: $7.99 |
| 44 |
104-7727 |
SPRING-DETENT This part replaces 353-579. Price: $18.78 |
| 44 |
532109778 |
Plate Assembly, Mower Suspension (AYP part number) Price: $29.08 |
| 45 |
42-2680 |
RACE-BALL This part replaces 353-583. Price: $76.92 |
| 45 |
532109771 |
Bracket, Suspension (AYP part number) Price: $16.99 |
| 46 |
52-5880 |
BALL-DETENT This part replaces 353-418. Price: $4.60 |
| 46 |
873220500 |
NUT This part replaces 873350500. Price: $3.99 |
| 47 |
353-582 |
DISCONTINUED X-REF Price: Call Us |
| 47 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 48 |
353-780 |
DETENT ASM This part replaces 353-578. Price: $480.94 |
| 48 |
532003703 |
V-Belt (AYP part number) Price: $44.99 |
| 49 |
353-677 |
DISC SEAL This part replaces 353-557. Price: $10.53 |
| 49 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873680800. Price: $1.99 |
| 50 |
353-517 |
DISCONTINUED Price: Call Us |
| 50 |
874760622 |
Bolt, Hex 3/8-16 x 1-3/8 (AYP part number) Price: $2.99 |
| 51 |
353-485 |
DISCONTINUED Price: Call Us |
| 51 |
532105435 |
Pin, Release (AYP part number) Price: $10.21 |
| 52 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 52 |
532003720 |
Spring (AYP part number) Price: $3.99 |
| 53 |
322-1 |
SCREW-HH Price: $0.22 |
| 53 |
812000039 |
Ring, Klip (AYP part number) Price: $3.99 |
| 54 |
27-2700 |
DISCONTINUED Price: Call Us |
| 54 |
532052160 |
Washer (AYP part number) This part replaces 819171612. Price: $3.99 |
| 55 |
532105440 |
Pin, Clevis (AYP part number) Price: $4.62 |
| 56 |
532105458 |
Bracket, Outer, R.H. (AYP part number) Price: $3.74 |
| 57 |
532110997 |
Bracket, Inner, R.H. (AYP part number) Price: $15.76 |
| 58 |
532110998 |
Bracket, Inner, L.H. Price: $17.99 |
| 59 |
532120000 |
Bracket, Outer, L.H. (AYP part number) Price: $4.99 |
| 60 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 61 |
532109776 |
Pin, Pivot (AYP part number) Price: $8.99 |
| 62 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. (AYP part number) Price: $5.99 |
| 63 |
532110509 |
Shield, Deflector (AYP part number) Price: $22.99 |
| 64 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 65 |
532137607 |
Bracket Assembly, Deflector (AYP part number) This part replaces 532109743. Price: $3.99 |
| 66 |
532106735 |
Rod, Hinge (AYP part number) Price: $4.99 |
| 68 |
532110452 |
Nut, Push (AYP part number) Price: $1.99 |
| 71 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873220800. Price: $1.99 |
| 72 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 73 |
819171512 |
Washer 17/32 x 15/16 x 12 Ga. (AYP part number) Price: $3.99 |
| 74 |
872240608 |
Bolt, Carriage 3/8-16 x 1 (AYP part number) Price: $2.99 |
| 76 |
532110884 |
V-Belt (AYP part number) Price: $19.99 |
| 77 |
819151610 |
Washer 15/32 x 1 x 10 Ga. (AYP part number) Price: $5.99 |
| 79 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 80 |
532109729 |
Roller, Nose (AYP part number) Price: $6.99 |
| 83 |
876020412 |
Hairpin, Cotter (AYP part number) Price: $3.99 |
| 84 |
532052160 |
Washer (AYP part number) This part replaces 819151616. Price: $3.99 |
| 85 |
532120135 |
Spacer (AYP part number) Price: $2.42 |
| 93 |
532121352 |
Keeper, LH. (AYP part number) Price: $3.00 |
